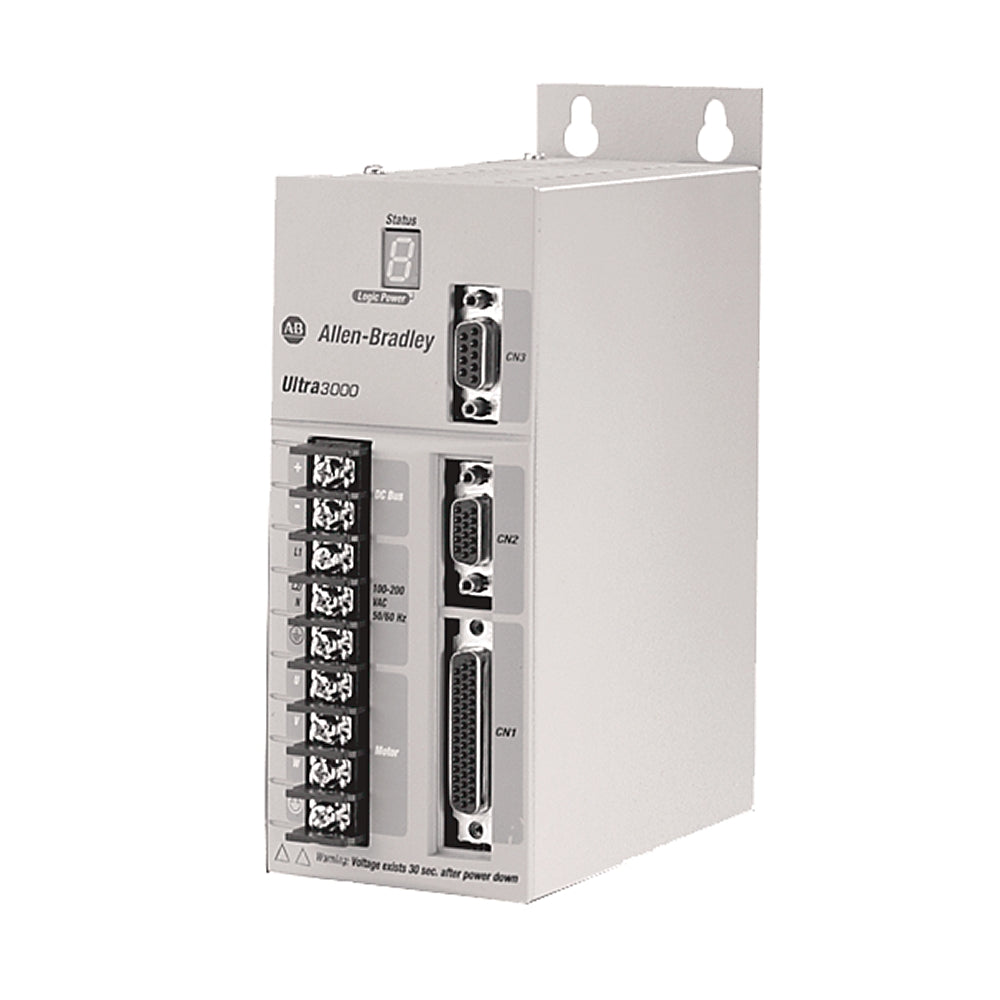

2098-DSD-010-SE | Allen-Bradley Servo Drive
- Regular price
- $1,448.00
- Sale price
- $1,448.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 2098-DSD-010-SE
Description
The Allen-Bradley 2098-DSD-010-SE is a Kinetix® 6000 series digital servo drive designed for high-performance motion control applications.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Allen-Bradley |
| Category | Servo Products |
| Part Number | 2098-DSD-010-SE |
| Subcatecory |
Servo Drive/Servo Control
|
|
Series
|
Ultra 3000 Digital Servo Drive |
|
Power Output |
1 kW |
|
Input Voltage (AC)
|
100–240 VAC |
| Input Frequency | 50/60 Hz |
| Input Current Range | 5–15 A |
| Control Voltage | 12/24 VDC |
| Communication Interface | SERCOS Interface |
| Mounting | Panel-mounted |
| Application Type | Precision servo motion control |
| Weight | 4.81 lbs |
Information About 2098-DSD-010-SE
The Allen-Bradley 2098-DSD-010-SE is a digital servo drive from the Ultra3000 series, engineered to deliver high-performance motion control for demanding industrial automation systems. With integrated SERCOS communication and compact panel-mount design, it offers precise control and seamless connectivity in applications like packaging, assembly, and material handling.
Key Features:
- Drive Type: Digital servo drive, part of the Ultra3000 family, suitable for controlling rotary or linear servo motors with high accuracy.
- Power Output: Provides 1 kW of continuous output power, ideal for mid-range motion applications.
- Input Voltage: Operates on a single-phase 100–240 VAC input, compatible with common industrial power standards.
- Input Frequency: Supports 47–63 Hz frequency range for global versatility.
- Current Ratings: Continuous output current up to 5 A and peak output current up to 15 A (0-peak), supporting dynamic load requirements.
- Control Voltage: Accepts 12/24 VDC input for digital I/O operation.
- Communication Interface: Integrated fiber-optic SERCOS interface for fast, deterministic communication with Logix-based controllers.
- Digital I/O: Equipped with 8 optically isolated digital inputs and 4 configurable digital outputs, plus 1 relay output for advanced control.
- Serial Port: Includes RS-232/RS-485 communication port for configuration and diagnostics.
- Mounting and Form Factor: Compact panel-mountable design with dimensions approximately 198 x 144 x 122 mm (7.8 x 5.68 x 4.79 in) and weight around 2.1 kg (4.6 lbs).
- Built-in Protections: Features overload, short-circuit, and over-temperature protection for enhanced operational safety.
This servo drive is part of the Allen-Bradley Ultra3000 series, known for its precision, reliability, and integration with Rockwell Automation platforms. Although now discontinued, it remains widely used in legacy systems and is recommended for applications requiring reliable performance and tight motion control in a compact footprint.
