Product Description P/N: 2098-DSD-HV030-SE

Description / Specifications

Description

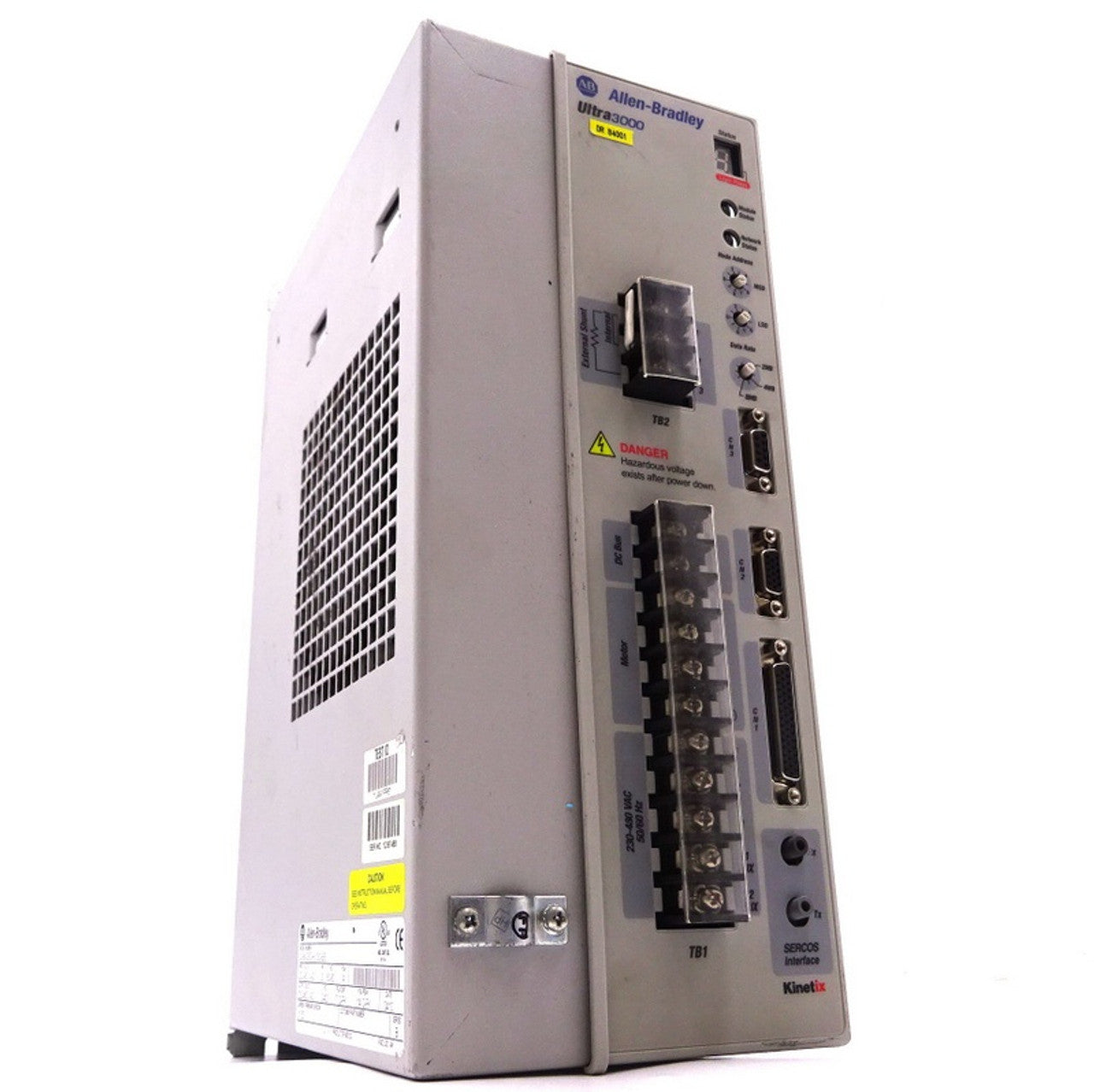

The Allen-Bradley 2098-DSD-HV030-SE is an Ultra 3000 Digital Servo Drive (DSD) from Allen-Bradley. This drive is powered by an AC input voltage of 230-480 Volts AC rms, 3-phase along an input frequency of 47-63 Hertz. It delivers an continuous output current of 7 Amperes and continuous output power of 1.5 Kilowatts at 230 Volts AC input and 3.0 Kilowatts at 460 Volts AC input. This drive comes with an integrated Serial Real-Time Communication System (SERCOS) interface for direct communication with SERCOS enabled modules.



Technical Specifications



Brand Allen-Bradley
Series Ultra 3000 Drives
Part Number 2098-DSD-HV030-SE
Manufacturer Rockwell Automation
Bus Overvoltage 810 Volts dc
Contact output One (1) Form A contacts
Indexing No
SERCOS Supported
Shunt Off 750 Volts dc
Shunt On 800 Volts dc
Continuous output power @ 480 VAC 3.0 kW
Continuous output power @ 230 VAC 1.5 kW
Input Voltage (AC) 230-480 Voltage rms, 3-Phase
Nominal Input Current (AC) 4 Amps
Output Current (Intermittent) 14 Amps (0-peak)
Output Current (Continuous) 7 Amps (0-peak)
Input Frequency (AC) 47-63 Hz
Module Type Digital Servo Drive
Internal Shunt Resistance 120 Ohms
Auxiliary Power Supply Yes
Product Line Ultra3000
Dimensions 9.54 x 14.2 x 5.46 in (242.2 x 360.7 x 138.7 mm)





Information About 2098-DSD-HV030-SE

The Allen-Bradley 2098-DSD-HV030-SE is an Ultra 3000 Digital Servo Drive Module (with a Fiber Optic SERCOS command interface). This module can be used for a variety of motion control applications and architectures. There are two SERCOS fiber-optic cables in this module. The AC input voltage of this module is ranged from 230-480V AC (Three-Phase). The AC input frequency of this module is 47-63 Hz. The Bus capacitance of this module is 470 µF. The internal shunt resistance of this module is 120 Ohms. The SERCOS Communication rates of this module are 4 and 8 Mbps. The node addresses are from 01 to 99. This module contains components and assemblies that are sensitive to ESD (electrostatic discharge). Follow static control precautions when installing, testing, repairing, or repairing this assembly. The Allen-Bradley 2098-DSD-HV030-SE weighs 8.55 kg (18.8 lbs). This module has 9.54 x 14.2 x 5.46 in. (242.2 x 360.7 x 138.7 mm) dimensions. The relative humidity of this module is from 5-95% without condensation. The operating temperature of this module is 0-55 °C (32-131 °F). The storage temperature of this module is -40-70 °C (-40-158 °F). The Allen-Bradley 2098-DSD-HV030-SE has an operating shock of 15 g (3 pulses, 11 ms). The nonoperating shock of this module is 30 g (3 pulses, 11 ms). This module is designed to maintain optimum functionality at 2.5 g vibration. This module can operate at altitudes of up to 1000 m (3280 ft) without derating.

The 2098-DSD-HV030-SE is a Digital Servo Drive (DSD) by Allen-Bradley. This electronic, programmable device is part of the Ultra 3000 Series of Kinetix Motion Control systems. This servo drive module is used to provide interface for motion control commands and direct connection to the servo motor for implementing a closed-loop motion, digitally controlled motion control system.

The 2098-DSD-HV030-SE becomes operable when provided with an supply input voltage of 230 Volts AC - 480 Volts AC, 3-phase, along an input frequency of 47-63 Hertz. This drive has main input circuitry and auxiliary input circuitry that requires different input current ratings. For the drive’s main circuitry, it requires 4 Amperes @ 460 Volts AC rms, nominal and 460 Volts AC rms, maximum inrush of 6 Amperes. The auxiliary circuitry input current includes 0.55 Amperes @ 230 Volts AC rms, nominal; 0.35 Amperes @ 360 Volts AC rms, nominal; 0.25 Amperes @ 480 Volts AC rms, nominal. This servo drive is capable of providing a continuous output current of 7 Amperes and an intermittent output current of 14 Amperes while the continuous output power are 1.5 Kilowatts for 230 Volts AC input and 3.0 Kilowatts 460 Volts AC input.

The 2098-DSD-HV030-SE comes with a variety of terminal strips and connection interfaces mounted on the drive’s front panel. Terminal strip TB1 is used for termination of DC+ and DC- voltages; 3-Phase motor power connections; AC input power connections and auxiliary power connections. A cable shield clamp is located just below this terminal strip for clamping of shield cable. It also has TB2 terminal strip for installation of external passive shunt components. It also hosts the CN1 interface which are the terminals of the Normally Open (N.O.) contacts that can be used for energizing an external Start/Stop circuitry.
