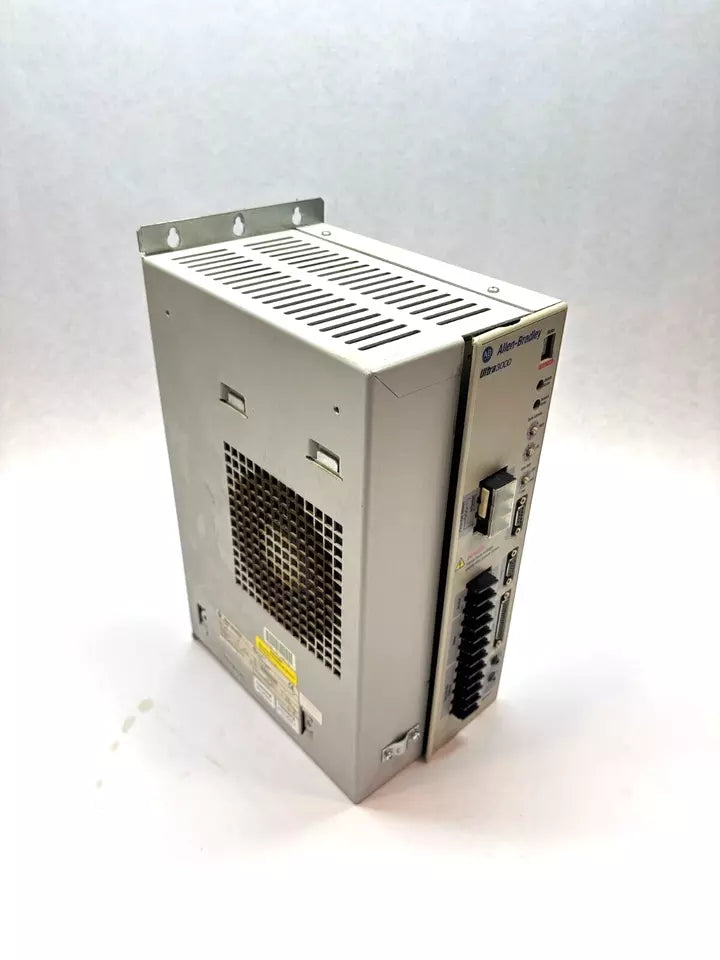

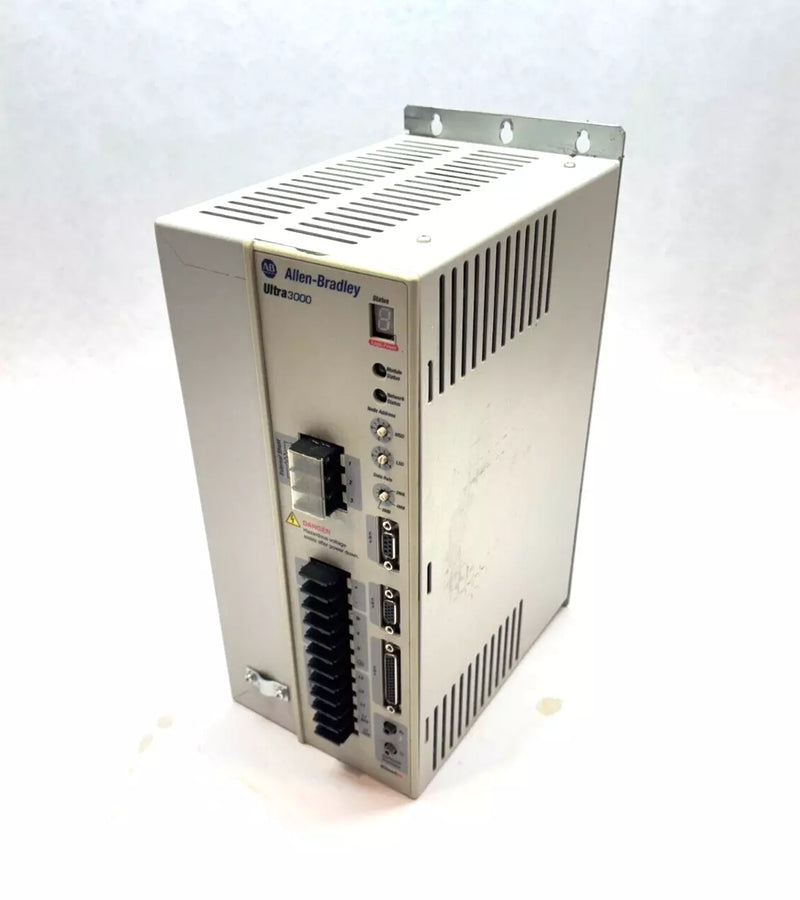

2098-DSD-HV150-SE | Allen-Bradley Servo Drive

Description

The 2098-DSD-HV150-SE is a Ultra3000 high-voltage digital servo drive from Allen-Bradley, designed for precise motion control in demanding industrial applications. It supports 150V AC input, delivers high-speed response with advanced control features, and integrates with SERCOS interface for real-time communication.

Technical Specifications

Information About 2098-DSD-HV150-SE

The Allen-Bradley 2098-DSD-HV150-SE is a 15 kW Ultra3000 digital servo drive designed for high-performance motion control in industrial automation systems. It operates with a three-phase AC input voltage of 230–480V and utilizes a SERCOS fiber-optic interface for real-time communication with compatible controllers. This drive supports precise control of servo motors, making it suitable for applications requiring accurate positioning and speed regulation.

Key Features:

• Input Voltage: 230–480V AC, three-phase

• Input Frequency: 47–63 Hz

• Continuous Output Power: 7.5 kW at 230V AC; 15 kW at 460V AC

• Continuous Output Current: 34 A (0-peak)

• Intermittent Output Current: 68 A (0-peak)

• Bus Capacitance: 940 μF

• Internal Shunt Resistance: 25 Ω

• Bus Overvoltage Limit: 810V DC

• Communication Interface: SERCOS (4 and 8 Mbit/s)

• I/O: 8 optically isolated 12–24V inputs; 4 optically isolated 12–24V outputs; 1 normally open relay output (30V DC, 1 A max)

• I/O Response Time: 100 microseconds


• Operating Temperature: 0 to 50°C (32 to 122°F)

• Storage Temperature: -40 to 70°C (-40 to 158°F)

• Relative Humidity: 5% to 95% non-condensing

• Altitude: Up to 1500 meters (4921 feet); derate 3% per 300 meters above 1500 meters
