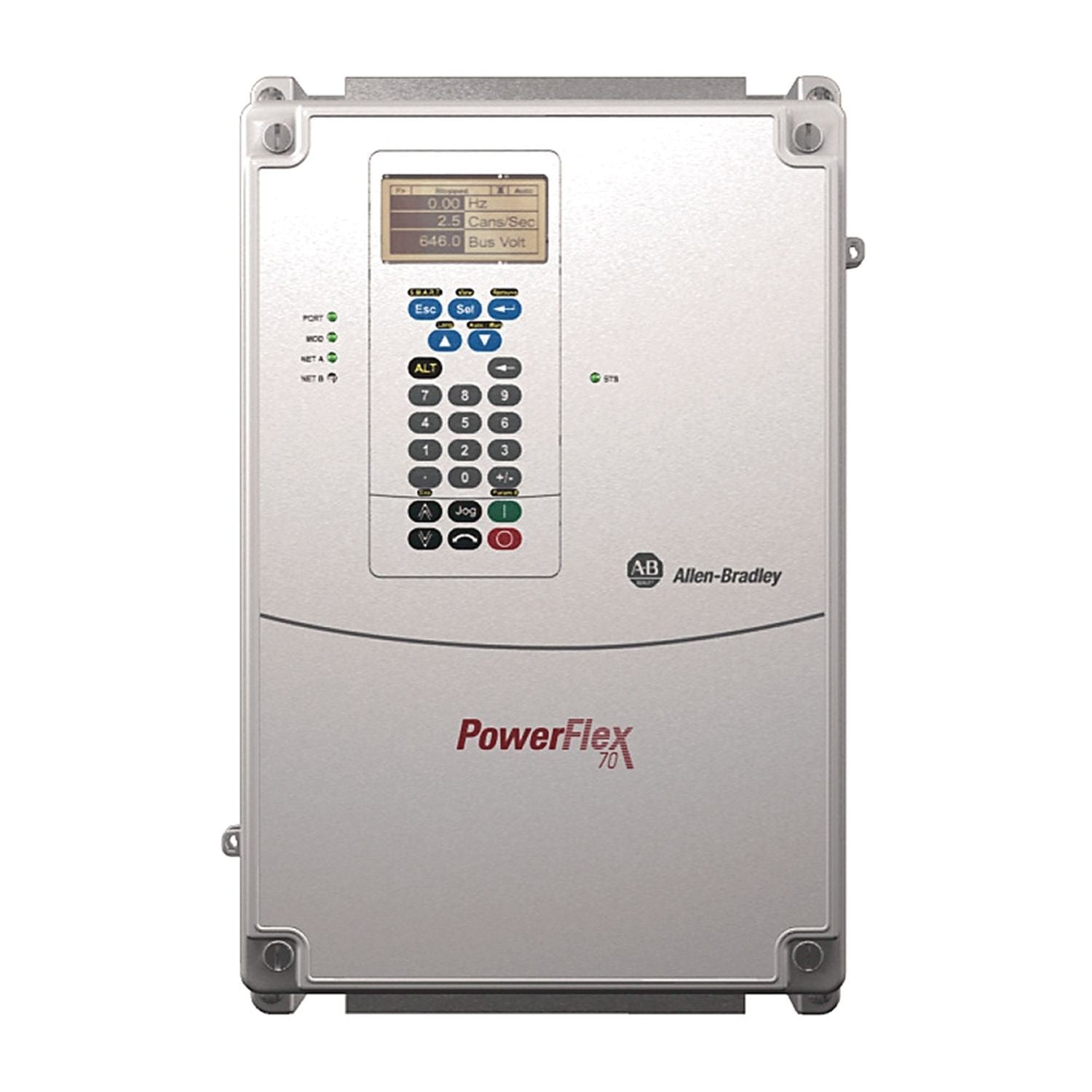

20AB022C3AYNANC0 | Allen-Bradley PowerFlex 70 AC Drive

Description

Part 20AB022C3AYNANC0 is a PowerFlex 70 drive categorized under Drives and specifically classified as a Drive. This unit features enhanced control capabilities and operates at a voltage rating of 240 VAC, 3 Phase. It has an ND rating of 22 AMP, 5.5 kW, and 7.5 HP. The enclosure is designed for all/machine mounting applications. The drive does not include an internal brake resistor and operates without feedback. It is equipped with a brake IGBT. The emission class is filtered emission class, ensuring compliance with regulatory standards. Additionally, it includes a Human Interface Module (HIM) with a full numeric LCD for user interaction and monitoring. Documentation for operation and installation is provided in manual form.

Technical Specifications

The 20AB022C3AYNANC0 is a high-performance drive classified under the Drives category and specifically categorized as a Drive. This unit is part of the PowerFlex 70 series, recognized for its robust control capabilities and efficient operation in various industrial applications. It is designed to manage motor performance effectively, making it suitable for demanding environments.

With a voltage rating of 240 VAC and a three-phase configuration, the drive is capable of handling significant power demands. The nominal current rating is 22 AMP, which translates to a power output of 5.5 kW or 7.5 HP. This power rating indicates the drive's ability to support a range of applications, from simple motor control to complex automated systems requiring enhanced operational capabilities.

The 20AB022C3AYNANC0 features enhanced control and input/output (I/O) capabilities, which allow for precise motor management and flexibility in various control scenarios. This includes support for multiple control methodologies, ensuring compatibility with various industrial standards. The drive does not incorporate an internal brake resistor but is equipped with a brake IGBT, which enhances braking performance and reliability during operation.

The unit operates without feedback, simplifying its integration into existing systems while still maintaining effective control. The absence of feedback does not compromise performance, as the drive is engineered to deliver consistent and reliable output suitable for many applications.

The enclosure type is designed for all or machine mounting, providing versatility in installation options. This flexibility allows for easy integration into different setups, whether in standalone configurations or as part of larger systems.

Additionally, the drive is classified under the filtered emission class, ensuring compliance with relevant electromagnetic interference regulations. This feature minimizes noise and disruption in the electrical environment, making it suitable for sensitive applications.
