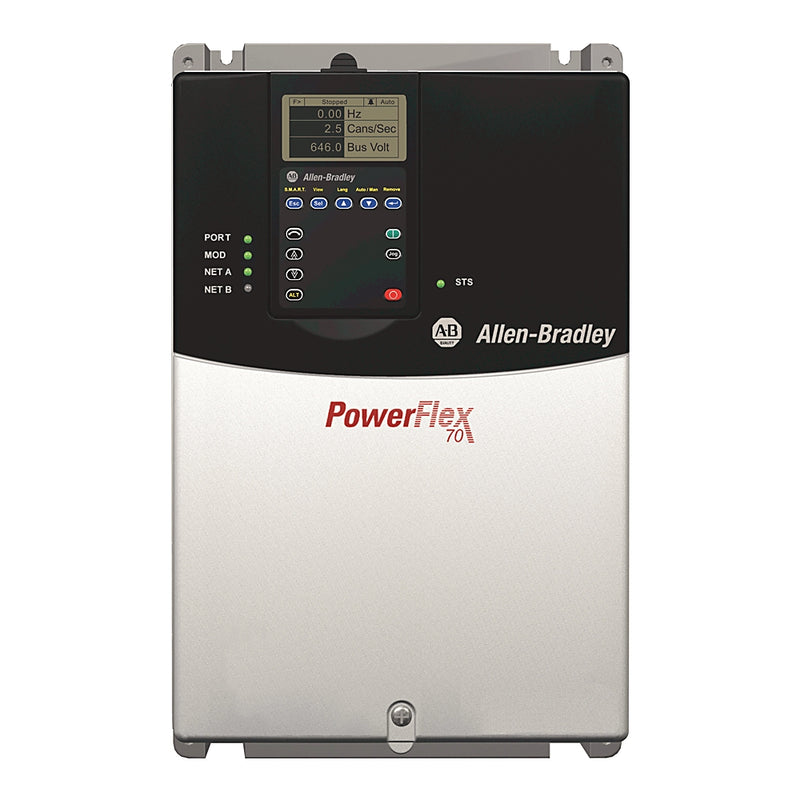

20AD022A3AYNANC0 | Allen-Bradley PowerFlex70 AC Drive
- Regular price
- $3,699.00
- Sale price
- $3,699.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 20AD022A3AYNANC0
Description
The Allen-Bradley 20AD022A3AYNANC0 is a high-performance adjustable frequency AC drive from the PowerFlex 70 series. Designed for precision motor control in industrial environments, it delivers up to 15 HP (11 kW) of output power with a 22 A output current.
Technical Specifications
|
Condition |
New/Never Used Surplus |
|---|---|
| Brand | Allen-Bradley |
|
Category |
Drives
|
|
Part Number |
20AD022A3AYNANC0 |
| Subcatecory |
Motor Drives
|
| Voltage | 480V AC |
| Phase | 3 |
| Output Current | 22 A |
| kW(Hp) | 11 (15) |
| Frame | D |
| Enclosure | Panel Mount - IP 20, NEMA/UL Type 1 |
| Interface Module | Full Numeric LCD |
| Type | Manual |
| w/Brake | Yes |
| w/Resistor | No |
Information About 20AD022A3AYNANC0
The 20AD022A3AYNANC0 is part of the Allen-Bradley PowerFlex 70 series, known for compact design and powerful motor control capabilities. This unit supports 480V AC, 3-phase input, and provides an output of 22 A, suitable for motors rated up to 11 kW (15 HP) in Normal Duty (ND) applications. It comes in a size D frame and includes a manual brake configuration, but does not include a dynamic braking resistor.
Key Features:
-
15 HP / 11 kW Output Rating: Supports medium-duty industrial motor applications.
-
22 Amp Output Current: Delivers reliable power for consistent motor performance.
-
480V AC, 3-Phase Input: Compatible with industrial power supply standards.
-
Full Numeric LCD Interface: Enables easy programming, diagnostics, and monitoring.
-
Panel Mountable (IP20/NEMA 1): For installation in standard electrical enclosures.
-
Manual Type Drive: Suitable for applications not requiring network communication.
-
With Brake / No Resistor: Supports brake functionality; external resistor must be added if needed.
-
Frame Size D: Medium-sized frame for versatile control panel integration.
The 20AD022A3AYNANC0 provides robust motor control in material handling, conveyors, and manufacturing equipment where precision, reliability, and ease of use are essential.
