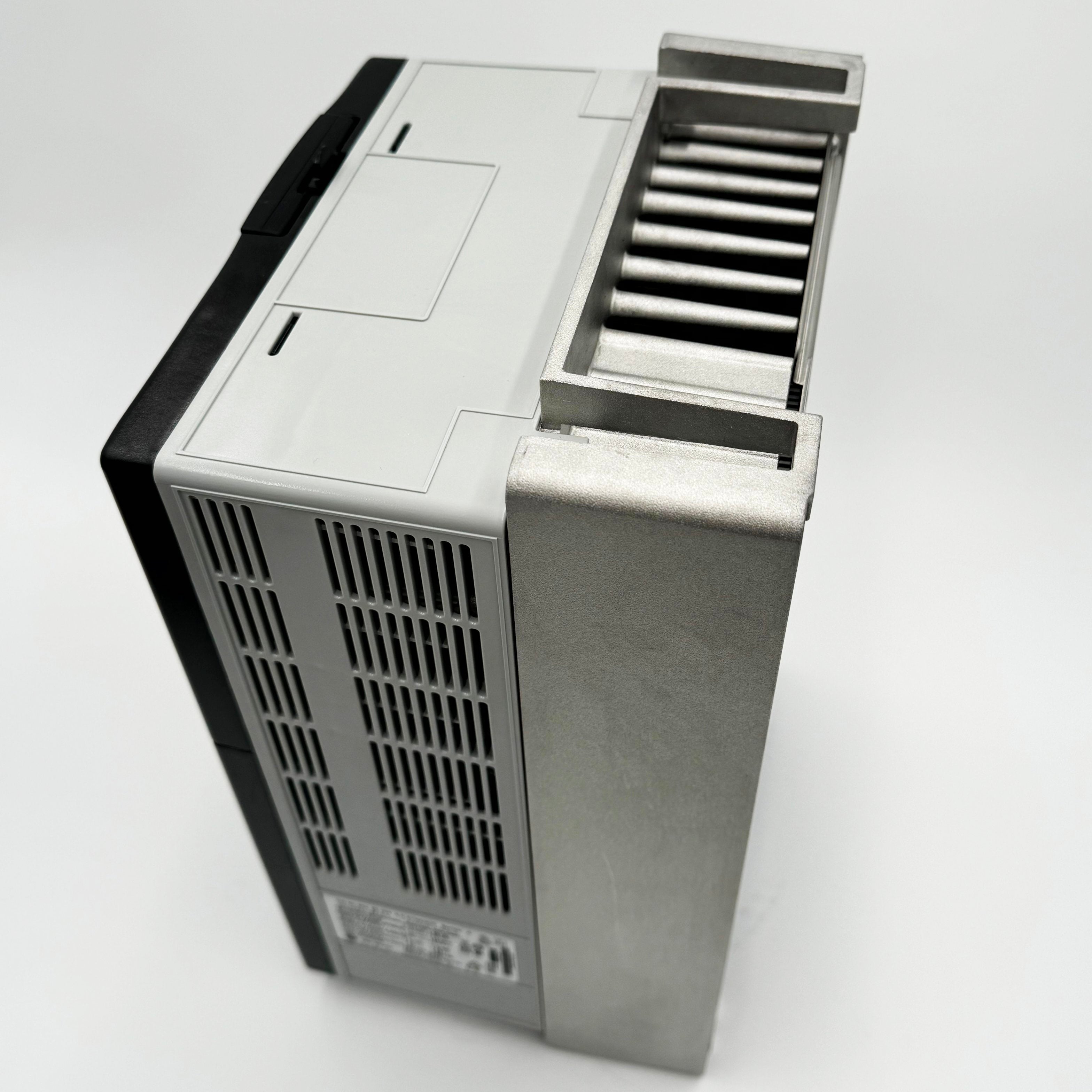

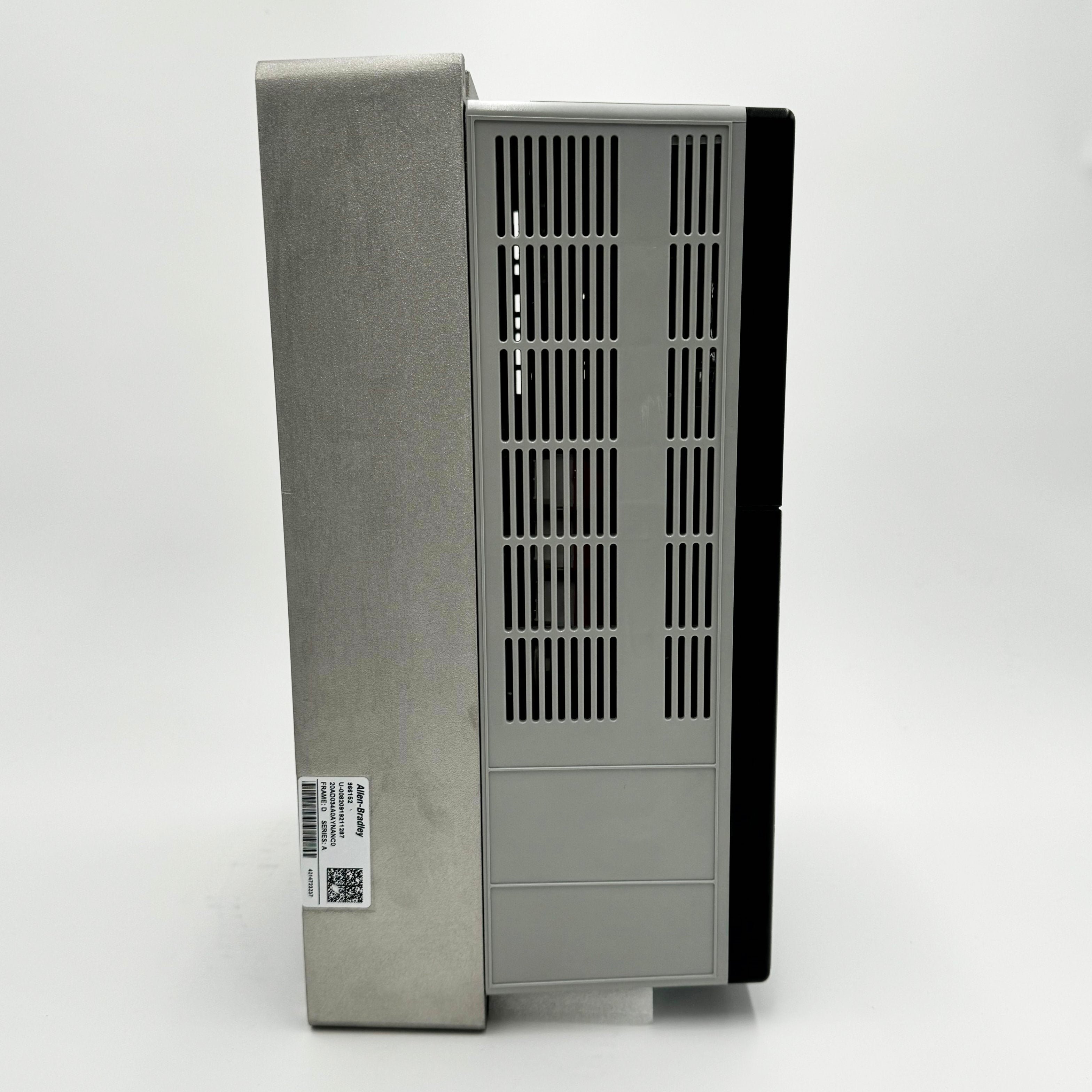

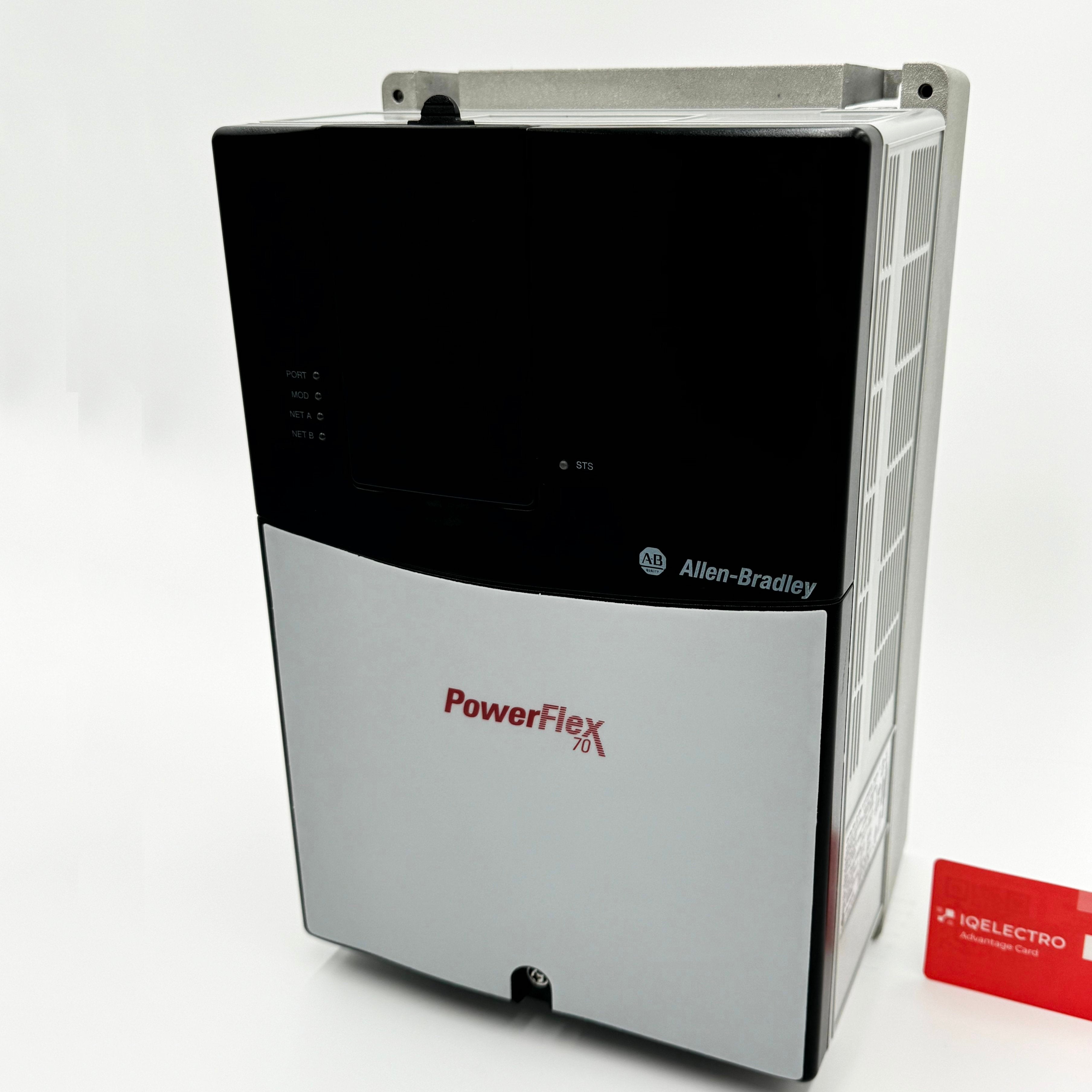

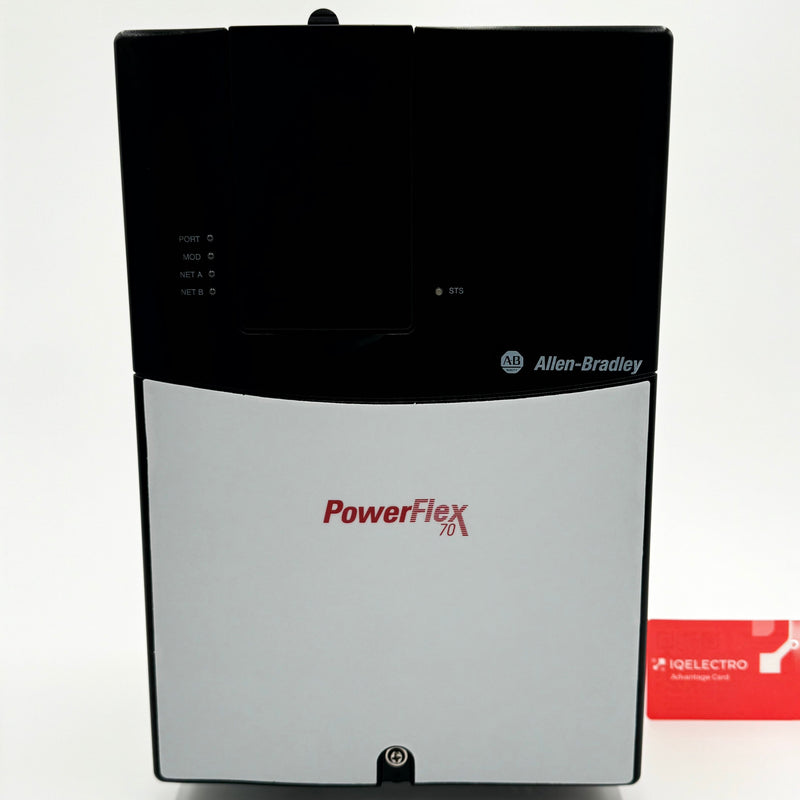

20AD034A0AYNANC0 | Allen-Bradley PowerFlex 70 AC Drive 480VAC 3PH 34A 25HP
- Regular price
- $4,107.00
- Sale price
- $4,107.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 20AD034A0AYNANC0
Description
The 20AD034A0AYNANC0 made by Allen Bradley has a kW ND output rating of 18.5 kilowatt. Also, it is a 25 horsepower drive. It is a 34 A rated drive and has a panel mount - IP 20 enclosure type rating. This adjustable frequency drive utilizes 480 VAC 3 phase power. It has no keypad unit, instead the drive has a blank cover.
Technical Specifications
| Brand | Allen-Bradley |
| Manufacturer | Rockwell Automation |
| Part Number | 20AD034A0AYNANC0 |
| Voltage | 480 Volts AC |
| Phases | 3 |
| Amperage | 34 Amps |
| kW(Hp) | 18.5 (25) |
| Frame | D |
| Enclosure | Panel Mount - IP 20, NEMA/UL Type 1 |
| Interface Module | Blank Cover |
| Type | Manual |
| w/Brake | Yes |
| w/Resistor | No |
| Rating | Filtered A & B Frames (Optional) C, D, & D Frames (Standard) |
| Network Type | None |
| Control | Enhanced |
| Safe Off | No |
| Feedback | No Feedback - Enhanced Control |
Information About 20AD034A0AYNANC0
The Allen-Bradley 20AD034A0AYNANC0 is a PowerFlex 70 AC drive. This drive has a power voltage of 480 Volts AC. It also has 3-phase power, and 34 Amps and 25 Horsepower output ratings when it is working in normal duty mode. In the heavy-duty operating mode, it has 20 Horsepower of output. Its enclosure type is the IP20/NEMA Type 1 enclosure. It has a conformal coating and it does not have an HMI (blank plate). In this device is a brake IGBT. However, it does not have a drive-mounted brake resistor. It also does not have a communication module. Nevertheless, the 20AD034A0AYNANC0 has enhanced control. This drive does not give feedback. The enclosure that this drive has gives it external protection from damage.
The 20AD034A0AYNANC0 is a compact package of power that has an operator interface and controls designed to meet industrial demands for simplicity, reliability, and space. This device is easy to configure and integrate. It also has additional power, control, and enclosure options in a standardized design which further aid the operators in their operations. This drive also has a pump and a fan which offers a cost-effective solution for controlling the speed in pump applications and variable-torque fan applications. When operating this device, it should be zero-stacked with no reduction in the ambient temperature rating. This device also has a vector control that uses the FORCE technology. The 20AD034A0AYNANC0 has an advanced bus regulation and drive overload protection feature which offers it protection from being destroyed by excessive voltages and currents. This drive supports multiple languages, enabling the users to use the language that is suitable for them. The configuration and programming of this device can be done through a remote keypad and integral LCD keypad which gives the operators an interface for computation and programming. This drive utilizes the Logix control platform to simplify the tag and parameter programming, reducing the time needed for development.
Manufacturer information
Allen-Bradley, a brand of Rockwell Automation, specializes in manufacturing industrial automation equipment. The product range includes programmable logic controllers (PLCs), motion control systems, safety devices, motor control equipment, automation software, and HMI panels. Allen-Bradley products are known for their reliability and integration with other systems.
