20AD040A0AYNANC0 | Allen-Bradley | AC Drive

Description

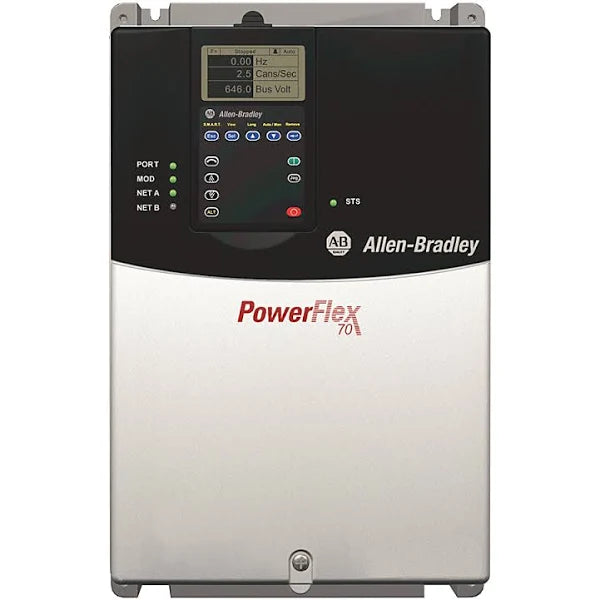

The Allen-Bradley 20AD040A0AYNANC0 is a PowerFlex 70 AC Drive designed for industrial applications. It operates with a voltage rating of 480V AC and supports 3-phase input. The drive is capable of handling currents up to 40A and is suitable for driving motors with a power rating of up to 30HP under normal duty conditions and 25HP under heavy duty conditions.

This AC drive is intended for panel mounting and features an IP20 / NEMA Type 1 enclosure, providing basic protection against solid objects and limited protection against ingress of liquids. Additionally, it comes with conformal coating, enhancing its resistance to environmental factors such as dust and moisture.

The drive is equipped with a Brake IGBT for controlling braking functions and does not include a drive-mounted brake resistor. It features a Second Environment Filter in compliance with the CE EMC directive (89/336/EEC), ensuring electromagnetic compatibility in European markets.

Technical Specifications

Information About 20AD040A0AYNANC0

The Allen-Bradley 20AD040A0AYNANC0 PowerFlex 70 AC Drive is designed for industrial applications requiring precise motor control and efficient power management. Operating at 480V AC with 3 phases, it delivers a maximum current of 40A and is capable of driving motors up to 30HP under normal duty conditions, and 25HP under heavy duty conditions.

Featuring a Panel Mount design conforming to IP20 and NEMA Type 1 standards, this AC drive is protected by a conformal coating, enhancing its durability and resistance to environmental factors. The absence of a Human Interface Module (HIM) is compensated with a blank plate, maintaining a sleek appearance and simplicity in operation.

Equipped with a Brake IGBT (Insulated Gate Bipolar Transistor), the drive offers enhanced braking capabilities without the need for a mounted brake resistor, reducing complexity and installation efforts. Additionally, it incorporates a second environment filter to comply with the CE EMC directive (89/336/EEC), ensuring electromagnetic compatibility in diverse operating environments.

This PowerFlex 70 AC Drive does not include a communication module, simplifying its configuration and use. However, it features enhanced control functionalities, providing users with advanced motor control options and operational flexibility.
