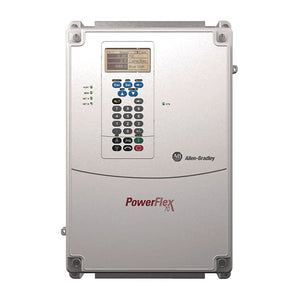

20AD040C3AYNANC0 | Allen-Bradley PowerFlex70 AC Drive
- Regular price
- $11,099.00
- Sale price
- $11,099.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 20AD040C3AYNANC0
Description
The Allen-Bradley 20AD040C3AYNANC0 is a PowerFlex 70 AC drive designed for variable frequency motor control in industrial applications.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Allen-Bradley |
| Category |
Drives
|
| Part Number | 20AD040C3AYNANC0 |
| Subcategory |
Drive
|
|
Amperage
|
40 Amp |
|
Display Type
|
Numeric Keypad - LCD Display |
|
Enclosure Rating
|
4X, 12, IP66 |
|
Input Voltage
|
480 V |
|
Size
|
D Frame |
|
Standard
|
C-TICK,CE,CUL,GOST,KC,MARINE,UL |
|
Voltage
|
480 Volt |
|
Control Type
|
Enhanced Control with 24 V I/O |
|
Enclosure
|
IP66/NEMA/UL 4X/12 Wall |
|
Type
|
20A |
|
Emission Class
|
Filtered Emission Class |
|
Weight
|
22.00 lbs |
Information About 20AD040C3AYNANC0
The Allen-Bradley 20AD040C3AYNANC0 is a PowerFlex 70 AC Drive engineered for precise motor control in industrial applications.
Key Features:
-
Input Voltage: 480 VAC, 3-phase
-
Output Current: 40 A
-
Horsepower Rating:
-
30 HP for Normal Duty
-
25 HP for Heavy Duty
-
-
Enclosure: Wall/Machine Mount with IP66/NEMA Type 4X/12 rating for indoor use, offering protection against dust, water, and corrosion
-
Control Interface: Equipped with an LCD display and full numeric keypad for intuitive operation
-
Brake IGBT: Integrated Brake Insulated-Gate Bipolar Transistor (IGBT) for dynamic braking applications
-
EMC Filtering: Includes a second environment filter compliant with CE EMC directive (89/336/EEC) for electromagnetic compatibility
-
Control Type: Enhanced control capabilities without feedback
-
Acceleration/Deceleration: Two independently programmable acceleration and deceleration times, adjustable from 0 to 3600 seconds in 0.1-second increments
-
Stop Modes: Multiple programmable stop modes, including Ramp, Coast, DC-brake, Fast brake, Ramp-to-hold, and S-curve
-
Carrier Frequency: Standard control options range from 2 to 10 kHz; vector control options include 2, 4, 8, and 12 kHz
-
Overload Capability: 110% overload capacity for up to 1 minute and 150% for up to 3 seconds
-
Operating Temperature: 0 to 40 °C (32 to 104 °F) without derating
-
Protection Class: IP66-rated enclosure suitable for pollution degree 3 and 4 environments
-
Certifications: Complies with relevant international standards for safety and performance
This drive is designed to deliver reliable and efficient motor control, making it suitable for a wide range of industrial applications requiring robust performance and adaptability.
