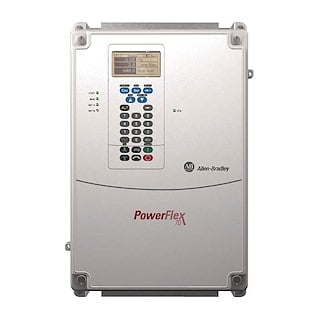

20AD065C3AYNANC0 | Allen-Bradley PowerFlex70 AC Drive

Description

The Allen-Bradley 20AD065C3AYNANC0 is a PowerFlex 70 AC drive, designed for high-performance motor control in industrial applications.

Technical Specifications

Information About 20AD065C3AYNANC0

The Allen-Bradley PowerFlex 70 AC Drive, catalog number 20AD065C3AYNANC0, is engineered to deliver precise motor control in demanding industrial applications.

Key Features:

• Power Ratings:

  • Normal Duty: 50 Hp (37 kW)

  • Heavy Duty: 40 Hp (30 kW)

  • Output Current: 65 Amps

• Electrical Characteristics:

  • Input Voltage: 480V AC, 3-phase

  • Voltage Tolerance: ±10%

  • Frequency Range: 47 to 63 Hz

  • Power Factor: 0.98

  • Efficiency: 97.5% at rated amps and nominal line volts

• Control Options:

  • Supports Volts per Hertz, Sensorless Vector, and Vector Control with FORCE Technology, accommodating a wide range of applications from fans to extruders.

• Human Interface Module (HIM):

  • Equipped with a full numeric LCD for multilingual text display, facilitating startup, metering, programming, and troubleshooting.

• Enclosure:

  • Rated IP66/NEMA Type 4X/12 for indoor use, providing protection against dust, dirt, and high-pressure water, suitable for harsh industrial environments.

• Mounting:

  • Designed for wall or machine mounting, offering flexibility in installation.

• Environmental Specifications:

  • Operating Temperature: 0 to 50°C

  • Storage Temperature: -40 to 70°C

  • Relative Humidity: 5 to 95%, non-condensing

• Additional Features:

  • Includes Brake IGBT for dynamic braking capabilities.

  • Features a conformal coating to protect electronic components from environmental contaminants.

  • Comes with a Second Environment Filter compliant with CE EMC Directive (89/336/EEC), ensuring electromagnetic compatibility.
