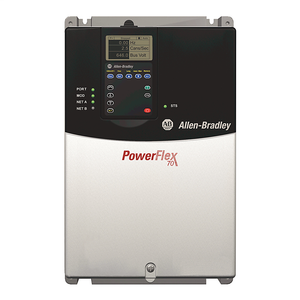

20AD3P4A0AYNANC0 | Allen-Bradley Powerflex 70 AC Drive
- Regular price
- $1,612.00
- Sale price
- $1,612.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 20AD3P4A0AYNANC0
Description
The Allen-Bradley 20AD3P4A0AYNANC0 is a PowerFlex 70 AC drive designed for precise motor control in industrial applications. With a 3.4A output and 480V input, it offers vector control, an integral LCD HIM, and flexible I/O, making it ideal for demanding variable-speed motor operations.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Allen-Bradley |
| Category |
Drives
|
| Part Number | 20AD3P4A0AYNANC0 |
| Subcategory | Motor Drives |
| Enclosure | Panel Mount - IP20 / NEMA Type 1, with conformal coating |
|
Frame Size
|
Frame Size B |
| Input Voltage | 480 VAC, 3 PH |
| Current Rating | 3.4 Amps , 2 HP Normal Duty, 1.5 HP Heavy Duty |
| Filter Options | Second Environment Filter per CE EMC directive |
| Brake IGBT | Brake IGBT |
| Human Interface Module | No HIM (Blank) , Blank Plate |
| Output Current Information | 3.4A Cont, 4.5A 1 Min, 6A 3 Sec |
| Weight | 1.66 kgs |
Information About 20AD3P4A0AYNANC0
The Allen-Bradley 20AD3P4A0AYNANC0 is a PowerFlex 70 AC drive engineered to deliver precise motor control in industrial settings. Designed for 480V three-phase input, it provides an output of 3.4 amps, accommodating motor ratings up to 2 HP (1.5 kW) for normal-duty applications and 1.5 HP (1.1 kW) for heavy-duty operations.
Key Features:
-
Control Flexibility: Supports multiple control modes, including Volts per Hertz (V/Hz), Sensorless Vector Control, and Vector Control with FORCE Technology, allowing adaptation to various application requirements.
-
Integrated Brake IGBT: Equipped with a brake Insulated-Gate Bipolar Transistor (IGBT), facilitating dynamic braking capabilities when paired with an external braking resistor.
-
Human Interface Module (HIM): This model features a blank cover in place of the HIM, indicating that an external interface or programming tool is necessary for configuration and monitoring.
-
EMC Compliance: Incorporates a Second Environment Filter to meet Electromagnetic Compatibility (EMC) standards as per the CE EMC directive (89/336/EEC), ensuring reduced electromagnetic interference.
-
Enclosure Design: The drive is housed in an IP20, NEMA/UL Type 1 enclosure with conformal coating, suitable for panel-mounted installations in controlled environments.
Physical Characteristics:
-
Frame Size: Classified as Frame Size B, offering a compact footprint for space-constrained installations.
-
Output Current: Delivers a continuous output of 3.4A, with short-term overload capacities of 4.5A for 1 minute and 6A for 3 seconds, accommodating varying load demands.
In summary, the Allen-Bradley 20AD3P4A0AYNANC0 PowerFlex 70 AC drive offers versatile control options and robust features tailored for efficient motor management in industrial applications, with considerations for its upcoming discontinuation.
