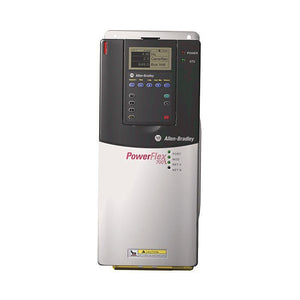

20BD052A0AYNAND0 | Allen-Bradley PowerFlex 700 AC Drive 480V
- Regular price
- $8,364.00
- Sale price
- $8,364.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 20BD052A0AYNAND0
Description
The Allen-Bradley 20BD052A0AYNAND0 is a high-performance PowerFlex 700 variable frequency AC drive designed for controlling three-phase motors in demanding industrial applications. It delivers robust vector and V/Hz motor control with enhanced torque and speed regulation.
Technical Specifications
|
Condition |
New/Never Used Surplus |
|---|---|
| Brand | Allen-Bradley |
|
Category |
Drives
|
|
Part Number |
20BD052A0AYNAND0 |
| Subcatecory |
Motor Drives
|
| Input Voltage | 480V AC, 3-Phase |
| Frequency | 60 Hz |
| Output Current | 52 Amps |
| Horsepower | 40 HP |
| Frame Size | 3 |
| Enclosure Rating | IP20 / NEMA Type 1 |
| Control Method | Vector Control, V/Hz |
| Brake IGBT | Yes |
| Interface Module | Blank Cover (No HIM) |
| Mounting | Panel Mount |
| Weight | 17.24 kgs |
Information About 20BD052A0AYNAND0
The 20BD052A0AYNAND0 is a 40 HP drive from the PowerFlex 700 series. It operates at 480V AC, 3-phase, with a 52A output current and is equipped with a vector control cassette for advanced motor performance. This unit features a Frame Size 3, IP20 / NEMA Type 1 enclosure, CE filter, and common mode (CM) choke. The drive includes a blank cover in place of the Human Interface Module (HIM) and has an integrated brake IGBT for dynamic braking capability.
Key Features:
-
Motor Control: Supports Vector and V/Hz control for precise speed and torque regulation.
-
Power Rating: 40 HP output with a 52A rated current, suitable for mid- to high-range applications.
-
Enclosure Type: IP20 / NEMA Type 1 for standard industrial environments.
-
Integrated Braking: Built-in IGBT for braking to enhance stopping performance and reduce wear.
-
Filter & Choke: CE-compliant EMC filter and CM choke for reduced electrical noise and improved system compatibility.
-
Communication: RS485 network connectivity for seamless integration into control systems.
-
User Interface: Comes with a blank cover; optional HIM modules can be added separately as needed.
This PowerFlex 700 drive is well-suited for process automation, material handling, and high-inertia load control.
