20BD065A0AYNAND0 | Allen-Bradley AC Drive
- Regular price
- $12,435.00
- Sale price
- $12,435.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 20BD065A0AYNAND0
Description

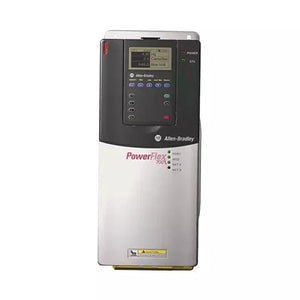

The Allen-Bradley 20BD065A0AYNAND0 is a PowerFlex 700 Adjustable Frequency AC Drive designed for precise motor control in industrial applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand |
Allen-Bradley |
| Category | Drives |
| Part Number | 20BD065A0AYNAND0 |
| Subcategory | Motor Drives |
| Voltage | 480V AC |
| Phases | 3 |
| Output Current | 65 Amps |
| Enclosure | IP20 / Type 1, with conformal coating |
| Frame Size | 3 |
| Output Current Information | Output Amps: 65A Cont, 78A 1 Min, 104A 3 Sec |
| I/O | Vector Control with 120V I/O |
| Brake IGBT | Brake IGBT Installed |
| Weight | 18.14 kgs |
Information About 20BD065A0AYNAND0
The Allen-Bradley 20BD065A0AYNAND0 is a PowerFlex 700 Adjustable Frequency AC Drive designed for precise motor control in industrial applications. It operates on a three-phase 480V AC input and delivers an output current of 65 A, suitable for driving motors up to 50 HP.
Key Features:
-
Enclosure: IP20 / NEMA Type 1, providing standard protection suitable for typical industrial environments.
-
Control Options: Offers vector control with 115V AC I/O, enhancing motor performance and efficiency.
-
Braking: Equipped with a Brake IGBT, facilitating dynamic braking applications.
-
Electromagnetic Compatibility (EMC): Includes a CE filter and common mode choke to meet emission standards and ensure compliance with electromagnetic compatibility requirements.
-
Human Interface Module (HIM): Comes with a blank cover; optional HIMs are available for enhanced user interaction.
The PowerFlex 700 series is recognized for its versatility, offering multiple motor control algorithms to match various application requirements, ranging from simple speed control to demanding torque control.
