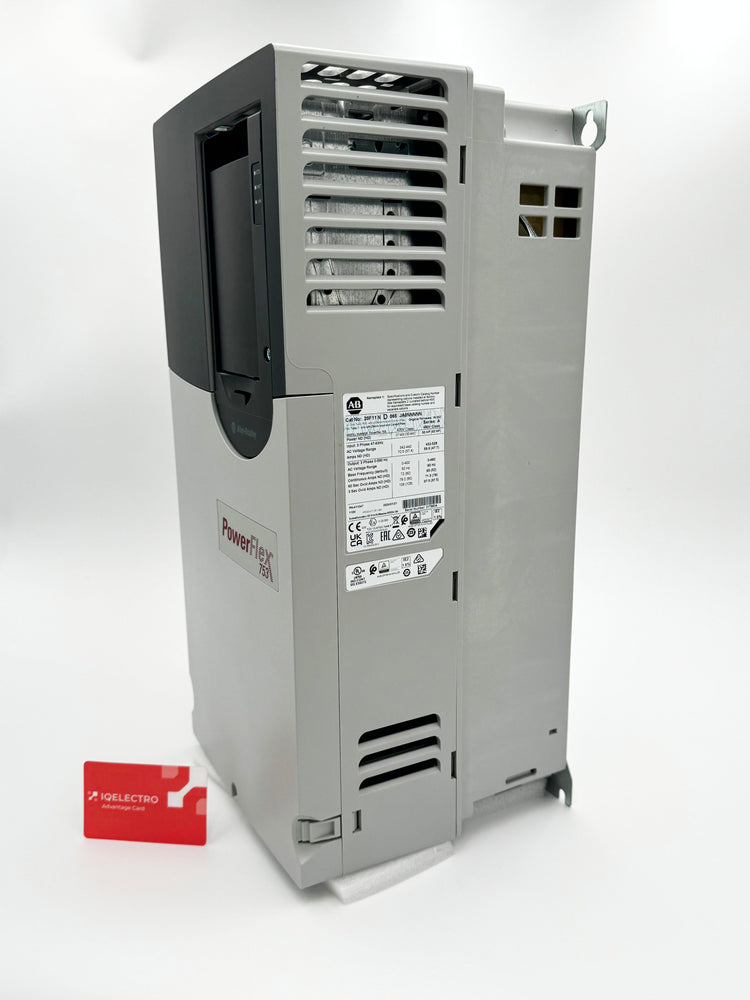

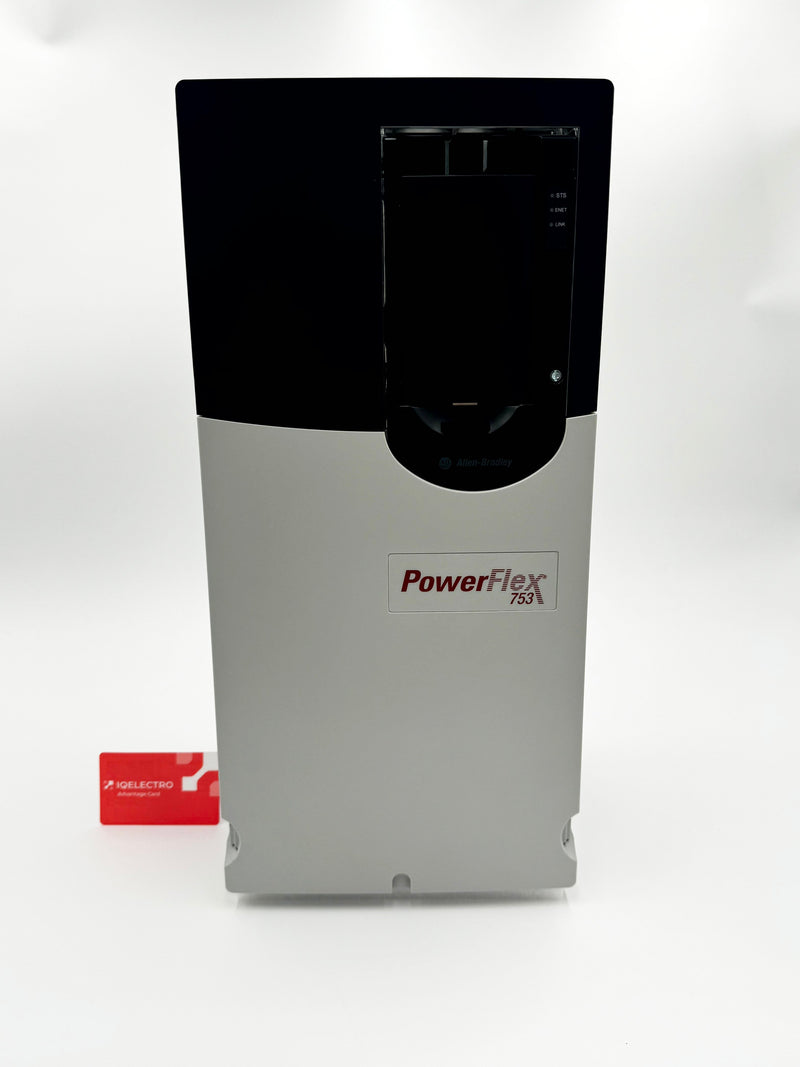

20F11ND065JA0NNNNN | Allen-Bradley PowerFlex 753 480V AC 65A 50 HP Drive With Embedded I/O And DB Transistor

The 20F11ND065JA0NNNNN is an industrial AC drive from the Allen-Bradley PowerFlex 753 series. It is designed for motor control applications in various industrial settings, particularly where precision, flexibility, and reliability are critical. This drive operates on 480V AC with three-phase power input and supports both normal and heavy-duty motor loads. It features embedded I/O and standard protection mechanisms, making it suitable for a wide range of automation environments. The drive is built into Frame Size 4 and includes pre-installed EMC filtering and dynamic braking capabilities. It supports forced-air cooling and has both AC input and DC bus terminals. The open-type enclosure makes it ideal for mounting inside control panels. This model is widely used in systems requiring energy efficiency and dynamic motor performance.

The 20F11ND065JA0NNNNN drive belongs to Frame 4 of the PowerFlex 753 series. Typical dimensions for Frame 4 are approximately 540 mm (H) x 270 mm (W) x 275 mm (D). These measurements may slightly vary based on specific installation configurations or additional components like communication adapters. The open-type enclosure does not include a full protective housing, so it is intended for installation inside an electrical cabinet. The drive’s dimensions make it suitable for medium to large control panels. Care must be taken to ensure sufficient airflow around the unit for proper cooling. Mounting holes and layout diagrams are provided in the installation manual. The size ensures a balance between power density and maintainability.

No, this specific configuration of the drive is supplied without a HIM module ("Blank (No HIM)"). This design choice is common when the drive is integrated into systems using centralized PLCs or remote configuration tools. However, optional HIM modules can be added separately if local parameter access or diagnostics are needed. The drive supports various HIM options including LCD and keypad types. Parameter setup can also be done via Connected Components Workbench or Studio 5000 software. For large installations, omitting HIM helps reduce cost and simplifies panel layout. The HIM port remains available for service or upgrades.

The 20F11ND065JA0NNNNN comes with pre-installed EMC filtering and a common mode (CM) jumper. This configuration helps reduce electromagnetic interference (EMI), protecting nearby sensitive equipment. The installed filter meets typical industrial EMC standards and is effective for many factory automation environments. It reduces noise on both the input and output sides of the drive. The CM jumper improves ground path continuity and noise suppression. In cases where custom filtering is required, external EMC filters can also be added. Proper grounding and cable shielding are still necessary for best EMC performance.

Yes, as of mid-2025, the 20F11ND065JA0NNNNN model from the PowerFlex 753 series remains an active product from Rockwell Automation. It is commonly available through authorized distributors and OEMs. This model continues to be supported with firmware updates, accessories, and technical documentation. It is widely implemented in both new automation projects and retrofit applications. However, customers are encouraged to confirm availability for long-term planning, as product lines may evolve. The PowerFlex 753 family is a part of Rockwell’s active portfolio, known for modularity and application versatility. Availability of replacements or enhanced models is also supported in Rockwell's lifecycle tools.
