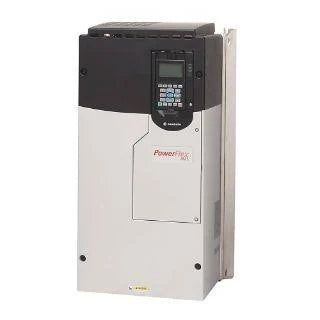

20F1AND125AN0NNNNN | Allen-Bradley PowerFlex 753 Drive 480V 125A 100HP
- Regular price
- $7,172.00
- Sale price
- $7,172.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 20F1AND125AN0NNNNN
Description
The Allen-Bradley 20F1AND125AN0NNNNN is a PowerFlex 753 adjustable frequency AC drive engineered to deliver precise motor control and energy efficiency. It offers a robust solution for heavy-duty industrial applications with a 100 HP motor output and a maximum output current of 125 A.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Allen-Bradley |
| Category |
Drives
|
| Part Number | 20F1AND125AN0NNNNN |
| Subcategory | Drive |
| Series | PowerFlex 755 |
| Enclosure Rating | Flange (NEMA/UL Type 4X/12 back) enclosure |
| Voltage Rating | 480V AC/650V |
| Continuous Output Power, ND | 100 HP |
| Continuous Output Current, HD | 96 Amperes |
| Continuous Output Power, HD | 75 HP |
| DC Filtering | Yes |
| Default CM Cap Connection | Jumper Removed |
| Internal Resistor | No |
| Human Interface Module (HIM) | Not Included |
| Voltage Class | 480 AC Volts |
| Output Current | 125 Amperes |
| Phase Count | Three |
| Frame Size | 6 |
| Enclosure Type | IP00 (IP20 NEMA) |
| EMC Filtering Options | Filtered, No CM Jumper |
| Input Type | AC Input with Precharge |
| Dynamic Breaking | None |
| Weight | 85 lbs |
| Dimensions | 26.20 x 12.13 x 13.64 in |
Information About 20F1AND125AN0NNNNN
The 20F1AND125AN0NNNNN belongs to the PowerFlex 753 series of adjustable frequency drives, specifically designed for industrial motor control and variable speed applications. This model supports 480 VAC or 650 VDC input, ensuring compatibility with a wide range of industrial power systems. It features a flange-mounted enclosure rated NEMA/UL Type 4X/12 back, which allows for reliable installation in challenging industrial environments. Notably, it includes an integrated EMC filter but does not come with a door-mounted Human Interface Module (HIM), offering users flexibility in customizing their control interface.
Key Features:
- Motor Output Power: Provides continuous output power of 100 HP in normal duty (ND) and 75 HP in heavy duty (HD) mode, ensuring versatility in industrial settings.
- Output Current: Delivers 125 A output current, supporting a broad range of motor sizes and load demands.
- Input and Output Voltage: Supports 480 V AC/650 V DC voltage rating, accommodating various power systems while maintaining consistent motor performance.
- Enclosure: Flange-mounted with a NEMA/UL Type 4X/12 back rating, designed for rugged industrial applications and ensuring durability in harsh environments.
- EMC Filtering: Integrated filter ensures compliance with electromagnetic compatibility (EMC) standards, reducing interference and improving system reliability.
- Phase and Frame Size: Three-phase operation with a Frame Size 6, suitable for larger motor installations.
- Additional Features: Includes precharge AC input, no dynamic braking, no internal resistor, and an IP00/IP20 NEMA enclosure rating for flexibility in system integration.
The 20F1AND125AN0NNNNN ensures smooth and reliable motor operation, supporting demanding applications with a robust design and powerful output performance.
