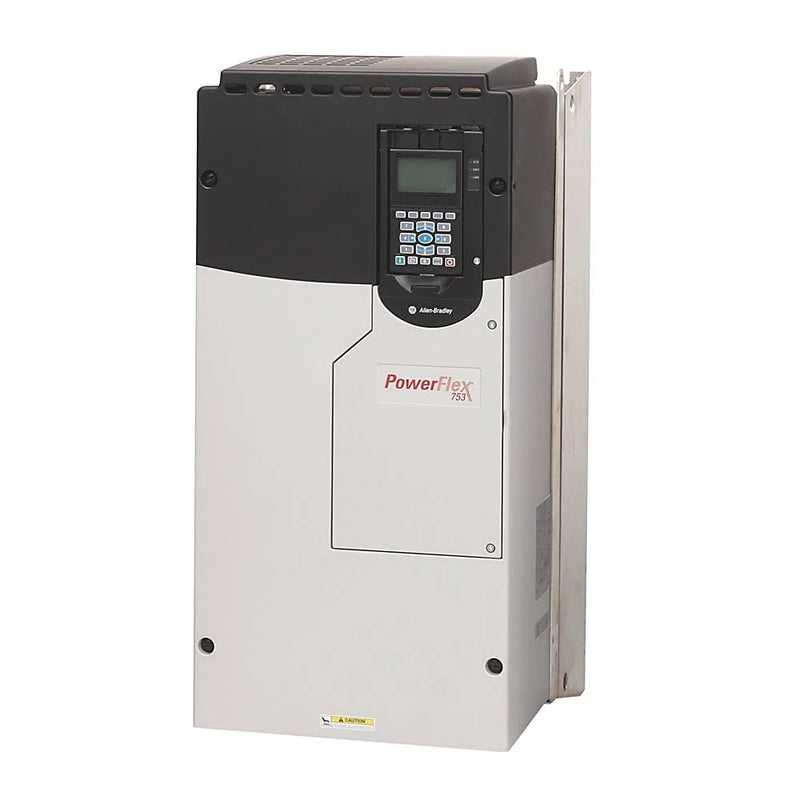

20F1AND156AN0NNNNN | Allen-Bradley PowerFlex Air Cooled 753 AC Drive
- Regular price
- $6,792.00
- Sale price
- $6,792.00
- Regular price
-
Couldn't load pickup availability
Do you need help?

Product Description P/N: 20F1AND156AN0NNNNN
Description
The Allen-Bradley 20F1AND156AN0NNNNN is a PowerFlex 753 adjustable frequency AC drive designed for industrial applications requiring precise motor control.
Technical Specifications
Condition | New/Never Used Surplus |
---|---|
Brand | Allen-Bradley |
Category | Drives |
Part Number | 20F1AND156AN0NNNNN |
Subcategory |
Drives
|
Amperage
|
156 Amp |
Enclosure
|
Open Type |
Output Current
|
156 A |
Split Crucible | S |
Type | Air Cooled |
Display Type | Blank (No HIM) |
Enclosure Type | Open Type, Frame 6 |
Size | Frame 6 |
Standard | C-TICK,CE,CUL,GOST,KC,MARINE,UL |
Voltage | 480 Volt |
Input Type | AC Input with Precharge |
Weight | 85 lbs |
Dimensions | 26.20 x 12.13 x 13.64 in |
Information About 20F1AND156AN0NNNNN
The Allen-Bradley 20F1AND156AN0NNNNN is an air-cooled adjustable frequency drive from the PowerFlex 753 series, engineered to deliver precise motor control in a wide range of industrial applications. It supports integration with Rockwell Automation systems and is suitable for high-performance environments where flexibility, safety, and power are essential.
Key Features:
- Application: Designed for controlling 3-phase AC induction motors in applications such as conveyors, pumps, fans, and mixers across industrial and process environments.
- Input & Output Ratings: Operates at 380–480V AC, 3-phase input, with a continuous output current of 156 A. It delivers up to 125 HP (Normal Duty) and 100 HP (Heavy Duty).
- Cooling & Enclosure: Air-cooled with an open-type IP00/IP20 (NEMA Open) enclosure, suitable for installation in protected environments.
- Control Capabilities: Supports Volts/Hertz, sensorless vector control, and closed-loop vector control (with encoder feedback), enabling precise and efficient motor performance.
- Built-in I/O: Includes embedded digital and analog inputs/outputs, simplifying system design and reducing the need for additional modules.
- Safety Features: Comes standard with Safe Torque-Off (STO), enabling compliance with international safety standards.
- Communication Support: Compatible with various communication protocols including EtherNet/IP, ControlNet, and DeviceNet through optional communication cards.
- Frame Size: Fits within Frame Size 6, facilitating installation in standard industrial enclosures.
- Integration: Designed for seamless integration into Rockwell Automation’s Logix control architecture, enhancing centralized control and diagnostics.
The 20F1AND156AN0NNNNN offers a robust and intelligent motor control solution tailored for modern industrial automation systems. Though officially discontinued in June 2024, it remains a reliable option where in use, with the recommended replacement being the 20F1AND156JN0NNNNN. Its high output, embedded features, and communication flexibility make it a powerful asset in drive-centric applications.
