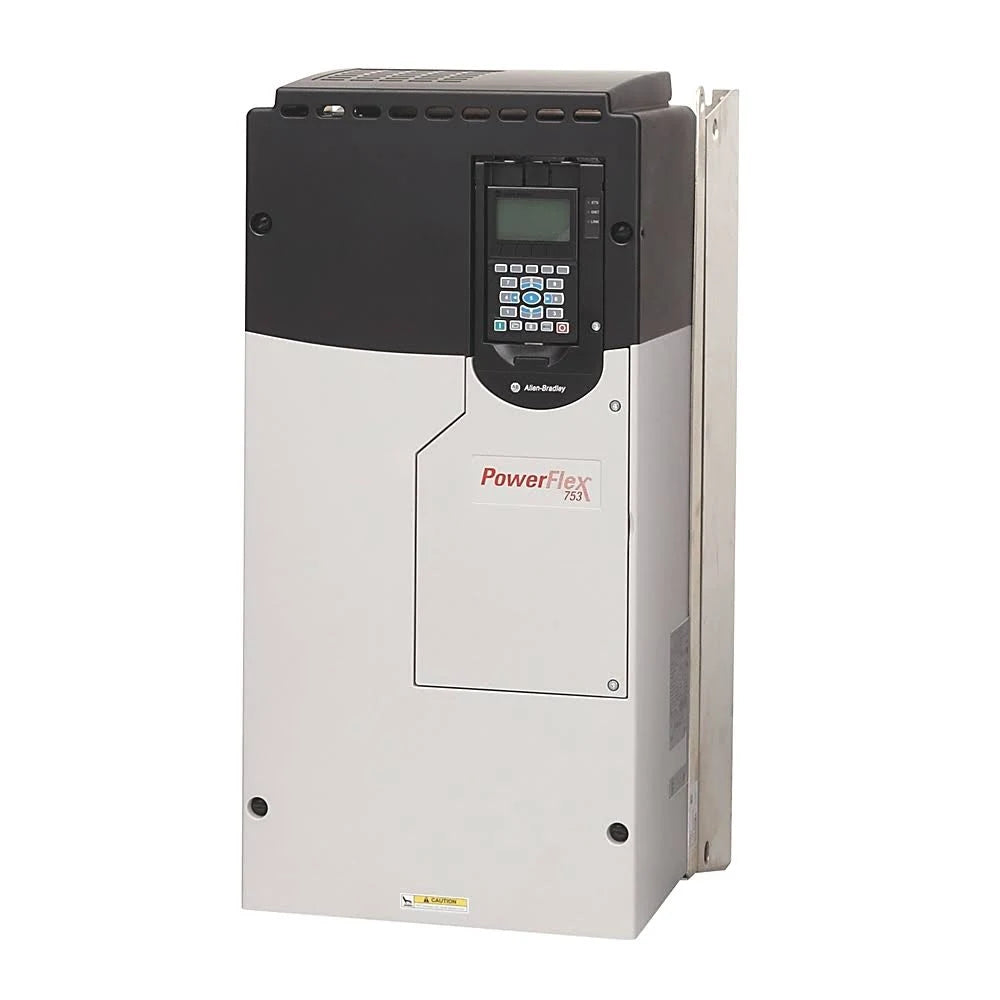

20F1AND248AN0NNNNN | Allen-Bradley PowerFlex 753 AC Drive 480V 248A 200HP
- Regular price
- $9,999.00
- Sale price
- $9,999.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 20F1AND248AN0NNNNN
Description
The Allen-Bradley 20F1AND248AN0NNNNN is a PowerFlex 753 adjustable frequency AC drive designed to deliver efficient motor control for industrial applications. With a 480V AC voltage class, 200 HP output power, and a 248A output current rating, this drive supports high-performance operations in a wide range of demanding environments.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Allen-Bradley |
| Category |
Drives
|
| Part Number | 20F1AND248AN0NNNNN |
| Subcategory | Drive |
| Voltage Class | 480 AC Volts |
| Output Current | 248 Amperes |
| Phase Count | Three |
| Frame Size | 6 |
| Enclosure Type | IP00 (IP20 NEMA) |
| EMC Filtering Options | Filtered, No CM Jumper |
| Input Type | AC Input with Precharge |
| Dynamic Breaking | None |
| Weight | 85 lbs |
| Dimensions | 26.20 x 12.13 x 13.64 in |
Information About 20F1AND248AN0NNNNN
The 20F1AND248AN0NNNNN is part of the PowerFlex 750 series, known for its flexibility, control capabilities, and high power density. This specific model is rated for 480V AC three-phase input and offers an output power of 200 HP at normal duty with an output current of 248A. It features a Frame Size 6 construction and comes with a standard IP00 (IP20 NEMA Open) enclosure, ideal for installation in enclosed panels. This drive includes a blank cover in place of the Human Interface Module (HIM), though an HIM can be added for enhanced control and monitoring. The unit includes EMC filtering with the common-mode (CM) jumper removed for noise reduction and compatibility with grounded motor systems.
Key Features:
- 200 HP Output Power (ND): Supports large industrial motors and high-inertia load applications.
- 248A Output Current: Delivers robust power handling for continuous duty operations.
- 480V AC Three-Phase Input: Suitable for standard industrial power systems.
- Frame Size 6: High-density power in a compact footprint.
- IP00/IP20 Enclosure: NEMA Type Open design for internal panel mounting.
- Filtered EMC Design: Built-in EMC filtering with CM jumper removed for enhanced noise immunity.
- Blank Front Cover: Ships without HIM module; allows optional installation of HIM for localized control.
- AC Input with Precharge: Precharge circuitry protects components from inrush current during power-up.
- No Dynamic Braking Resistor: External DB units can be added if braking is needed.
- Versatile Integration: Compatible with Rockwell Automation’s Integrated Architecture.
The 20F1AND248AN0NNNNN is built to provide efficient, flexible motor control in large-scale automation systems, supporting ease of use, scalability, and dependable performance.
