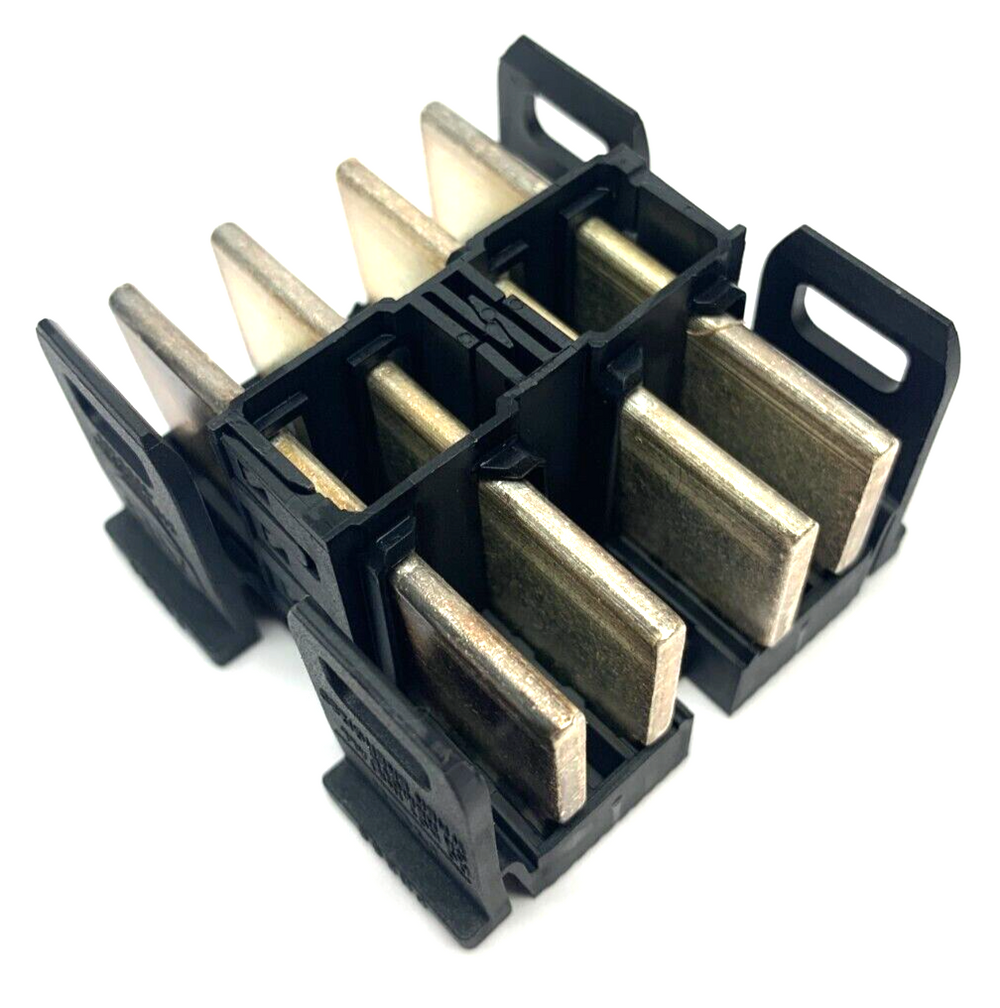

2198-BARCON-55DC200 | Allen-Bradley Kinetix 5700 Connector Kit
- Regular price
- $62.00
- Sale price
- $62.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 2198-BARCON-55DC200
Description
The Allen-Bradley 2198-BARCON-55DC200 connector kit is designed for efficient and secure DC-bus linking in Kinetix 5700 dual-axis inverter systems. Engineered to support high current ratings and compact installation, this 55 mm connector ensures reliable power transfer across interconnected drive components.
Technical Specifications
|
Condition |
New/Never Used Surplus |
|---|---|
| Brand | Allen-Bradley |
|
Category |
Electronic Components
|
|
Part Number |
2198-BARCON-55DC200 |
| Subcatecory |
Electrical Connectors, Terminals, & Pins
|
| Series | Kinetix 5700 |
| Function | DC-Bus Connector Kit |
| Application | Dual-Axis Inverter Linking |
| Bus Width | 55 mm |
| Rated Current | 200 A (208 A max) |
| Mounting Compatibility | Kinetix 5700 Dual-Axis Inverters |
| Design Type | Modular / Panel Mount |
| Weight | 0.16 kgs |
Information About 2198-BARCON-55DC200
The 2198-BARCON-55DC200 is a DC-bus link connector kit specifically built for use with Allen-Bradley Kinetix 5700 dual-axis inverters. With a 55 mm bus width and a rated current of 200 A (208 A max), this kit provides the necessary physical and electrical interface for DC-bus interconnection in multi-axis servo drive configurations. It supports clean, modular assembly and helps streamline power distribution in high-performance motion systems.
Key Features:
-
DC-Bus Link for Dual-Axis Inverters: Enables efficient power distribution between multiple Kinetix 5700 drives.
-
55 mm Connector Width: Compact form factor ensures easy installation within drive enclosures.
-
High Current Rating: Supports up to 200 A continuous (208 A max), suitable for high-power servo applications.
-
Optimized for Kinetix 5700: Designed to integrate seamlessly with Allen-Bradley dual-axis inverter modules.
-
Modular and Reliable: Simplifies system expansion and enhances long-term reliability of DC power links.
The 2198-BARCON-55DC200 provides a critical connection point for distributing DC power across multi-axis motion drives.
