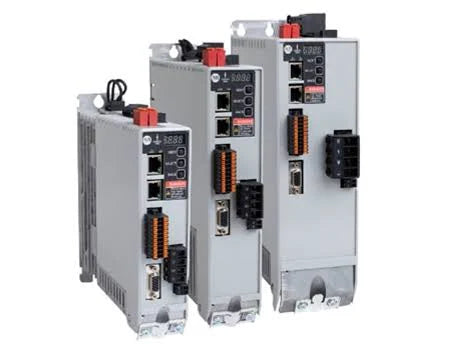

2198-C1007-ERS | Allen-Bradley Kinetix 5300 Servo Drive
- Regular price
- $1,227.00
- Sale price
- $1,227.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 2198-C1007-ERS
Description
The Allen-Bradley 2198-C1007-ERS is a Kinetix 5300 single-axis EtherNet/IP servo drive designed for small to medium-sized machines requiring precise motion control.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Allen-Bradley |
| Category | Servo Products |
| Part Number | 2198-C1007-ERS |
| Subcategory | Servo Drive/Servo Control |
|
Conductor Size
|
24-12 AWG |
| Output Current | 4.6 A (Continuous), 6.5 A (Peak) |
|
Input Voltage
|
95–132 VAC (Single Phase) 170–253 VAC (Single or Three Phase) |
| Power Rating |
0.75 kW
|
| Product Family | Kinetix 5300 |
| Input Phase Options | 1 or 3 Phase |
| Frequency | 50 / 60 Hz |
| Frame Size | 1 |
| Safety Feature | Hardwired Safe Torque Off (STO) |
| Weight | 2.00 lbs |
Information About 2198-C1007-ERS
The Allen-Bradley 2198-C1007-ERS is a compact, single-axis servo drive from the Kinetix 5300 series, designed for precise motion control in small to medium-sized machine applications. It integrates seamlessly with EtherNet/IP systems and supports both 1-phase and 3-phase power inputs, offering flexibility for a wide range of industrial automation needs.
Key Features:
-
Power Rating: 0.75 kW / 1 HP
-
Input Voltage Range: 95–132V AC (1-phase) or 170–253V AC (1/3-phase)
-
Input Frequency: 50/60 Hz
-
Continuous Output Current: 4.6 A RMS
-
Peak Output Current: 15.5 A
-
Frame Size: 1
-
Communication Interface: Dual-port EtherNet/IP with Device Level Ring (DLR) support
-
Safety Function: Hardwired Safe Torque Off (STO)
-
Mounting Type: Panel mount with compact, zero-stack design
-
Enclosure Type: Open style (IP20 rating)
-
Control Type: Integrated Motion with Logix controllers
This servo drive is built for high-performance motion control, featuring advanced tuningless technology such as Load Observer and Tracking Notch Filter to minimize setup time and improve dynamic response. Its small footprint, safe design, and compatibility with Studio 5000 environments make it ideal for OEMs and system integrators working on space-constrained or safety-sensitive projects.
Description
The Allen-Bradley 2198-C1007-ERS is a Kinetix 5300 single-axis EtherNet/IP servo drive designed for small to medium-sized machines requiring precise motion control.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Allen-Bradley |
| Category | Servo Products |
| Part Number | 2198-C1007-ERS |
| Subcategory | Servo Drive/Servo Control |
|
Conductor Size
|
24-12 AWG |
| Output Current | 4.6 A (Continuous), 6.5 A (Peak) |
|
Input Voltage
|
95–132 VAC (Single Phase) 170–253 VAC (Single or Three Phase) |
| Power Rating |
0.75 kW
|
| Product Family | Kinetix 5300 |
| Input Phase Options | 1 or 3 Phase |
| Frequency | 50 / 60 Hz |
| Frame Size | 1 |
| Safety Feature | Hardwired Safe Torque Off (STO) |
| Weight | 2.00 lbs |
Information About 2198-C1007-ERS
The Allen-Bradley 2198-C1007-ERS is a compact, single-axis servo drive from the Kinetix 5300 series, designed for precise motion control in small to medium-sized machine applications. It integrates seamlessly with EtherNet/IP systems and supports both 1-phase and 3-phase power inputs, offering flexibility for a wide range of industrial automation needs.
Key Features:
-
Power Rating: 0.75 kW / 1 HP
-
Input Voltage Range: 95–132V AC (1-phase) or 170–253V AC (1/3-phase)
-
Input Frequency: 50/60 Hz
-
Continuous Output Current: 4.6 A RMS
-
Peak Output Current: 15.5 A
-
Frame Size: 1
-
Communication Interface: Dual-port EtherNet/IP with Device Level Ring (DLR) support
-
Safety Function: Hardwired Safe Torque Off (STO)
-
Mounting Type: Panel mount with compact, zero-stack design
-
Enclosure Type: Open style (IP20 rating)
-
Control Type: Integrated Motion with Logix controllers
This servo drive is built for high-performance motion control, featuring advanced tuningless technology such as Load Observer and Tracking Notch Filter to minimize setup time and improve dynamic response. Its small footprint, safe design, and compatibility with Studio 5000 environments make it ideal for OEMs and system integrators working on space-constrained or safety-sensitive projects.
