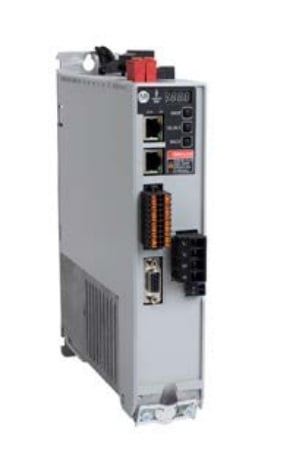

2198-C1020-ERS | Allen-Bradley Kinetix 5300 Servo Drive
- Regular price
- $2,599.00
- Sale price
- $2,599.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 2198-C1020-ERS
Description
The 2198-C1020-ERS is a compact Kinetix 5300 servo drive designed for high-performance motion control in small to mid-sized machines. It delivers continuous output power of up to 2.0 kW at 240V AC and supports EtherNet/IP for integrated motion.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Allen-Bradley |
| Category |
Drives
|
| Part Number | 2198-C1020-ERS |
| Subcategory |
Servo Drives & Controls
|
| Blade Dimensions | 55 mm W x 225 mm H |
| Input Voltage | 100/200 V |
| Power Rating | 2 kW |
| Conductor Size | 24-12 AWG |
| Output Current | 12.2 A (Continuous), 17.3 A (Peak) |
| Feedback | Multi-turn High-resolution Encoder (absolute feedback) |
| Control | Ethernet/IP |
| Weight | 2.3 kgs |
Information About 2198-C1020-ERS
The Allen-Bradley 2198-C1020-ERS is a Kinetix 5300 servo drive designed for precise and cost-effective motion control in small to medium-sized industrial machines. It integrates seamlessly with Logix controllers via EtherNet/IP, offering a compact and efficient solution for a wide range of applications.
Key Features:
-
Model: 2198-C1020-ERS
-
Series: Kinetix 5300
-
Continuous Output Power:
-
2.02 kW (single-phase)
-
3.13 kW (three-phase)
-
-
Continuous Output Current: 12.2 A (rms)
-
Peak Output Current: 40.6 A (rms)
-
Input Voltage Range: 170–253V AC (single- or three-phase)
-
Frequency Range: 47–63 Hz
-
Communication Interface: EtherNet/IP with Device Level Ring (DLR) support
-
Safety Functionality: Integrated Safe Torque Off (STO)
-
Motor Feedback Support: Absolute encoder interfaces
-
Cooling Method: Natural convection
-
Mounting Type: Panel mount
-
Frame Size: 2
-
Weight: Approximately 2.3 kg (5.0 lbs)
This servo drive is ideal for machine builders and automation engineers seeking an integrated, scalable, and efficient servo solution with built-in safety and advanced networking capabilities. Its compatibility with Studio 5000 software simplifies programming and system integration.
