Part #: 2198-C4015-ERS Manufactured by: Allen-Bradley
Regular price
$1,427.00
Sale price
$1,427.00
Regular price
12 in Stock

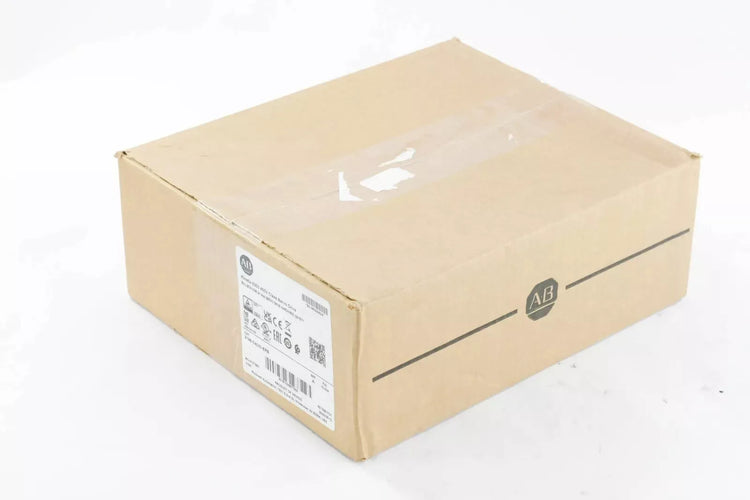

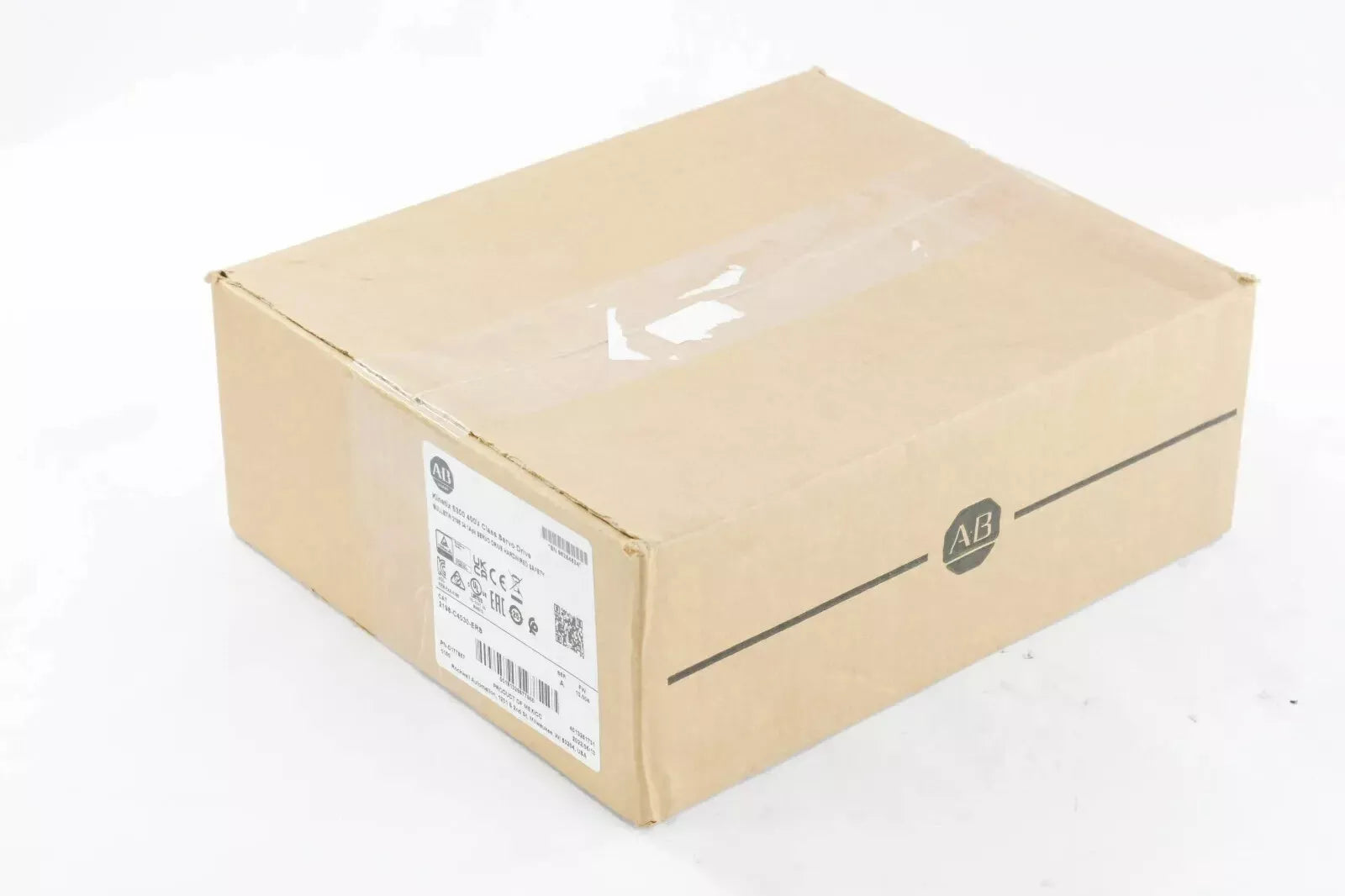

Condition: New-Surplus Original Box
Shipping calculated at checkout.
Product Overview
Allen-Bradley 2198-C4015-ERS Kinetix 5300 Servo Drive, 400V Class, Hardwired Safety, 1.5kW Output Power, 5.2A Continuous O...  Read more
We accept:
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
warranty
IQElectro 2-Year Warranty
Warranty for Product #: 2198-C4015-ERS
IQElectro offers a free 2-year warranty on all products. You can trust that every purchase is a reliable investment in the future of your company. Warranty Terms
2-3 Day Free Shipping
Packed Ready to Ship
24/7 Expert Support
Return within 30-Days
IQElectro LLC BBB Business Review
IQElectro is Not an authorized distributor for Allen-Bradley
Original Manufacturer's Warranty Not Covered, This Product is SURPLUS.

Product Description P/N: 2198-C4015-ERS

Description / Specifications

Description

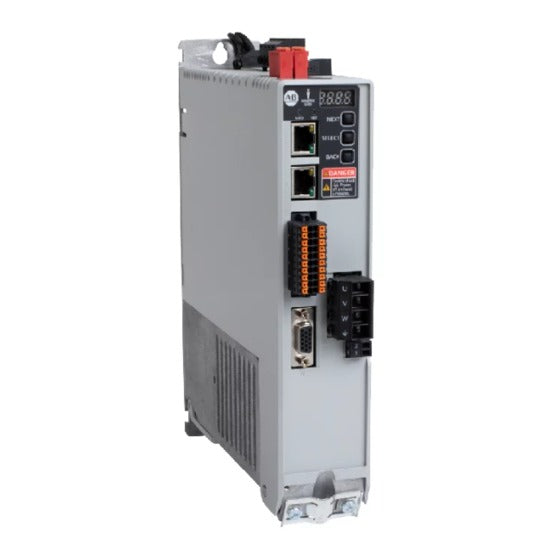

The Allen-Bradley 2198-C4015-ERS servo drive is an industrial single-axis servo drive from the Kinetix 5300 series. It can work with circuits rated at up to 200,000 Amps with UL-fuses.



Technical Specifications



Brand Allen-Bradley
Series Kinetix 5300
Part Number 2198-C4015-ERS
Product Type Servo Drive
Axis Type Single-Axis
Frame Size 2
CE Approved Yes (With an AC Line Filter)
AC Line Filter 2198-DB08-F
Continuous Output Power 2.78 Watts
3-Phase Voltage 342 to 528 Volts RMS





Information About 2198-C4015-ERS

The 2198-C4015-ERS servo drive from Allen-Bradley is a Kinetix 5300 series servo drive with a single axis. This servo drive communicates through the Ethernet network and it can support all of the different Ethernet communication topologies which are the star, ring, and linear topologies. The 2198-C4015-ERS servo drive connects different types of Allen-Bradley ControlLogix or CompactLogix series controllers in these different topologies to handle the applications that it is designed for. This servo drive needs a Size 2 frame and it can produce 2.78 Watts of continuous output power. Its 3-phase voltage range is from 342 to 528 Volts RMS, its continuous output current rating is 5.2 Amps RMS, and its peak output current is 18 Amps RMS.

The Allen-Bradley 2198-C4015-ERS Kinetix 5300 single-axis servo drive needs to have an AC line filter to meet the requirements of the CE standards. It is compatible with the Allen-Bradley 2198-DB08-F AC line filter, and this AC line filter needs to be installed with a minimum clearance space of 1.97 inches or 50 millimeters between it and the servo drive, and its cable length should be as short as possible. The 2198-C4015-ERS servo drive is built with internal solid-state protection against short circuits in its motor, and it can be used on high-powered circuits if it is protected with the right kind of fuse. For example, this servo drive can handle 200,000-Amp circuits with fuses that are rated for UL applications, it can handle 10,000-Amp circuits with miniature circuit breakers, and it can handle 65,000-Amp circuits with molded-case circuit breakers.


Manufacturer information

Allen-Bradley, a brand of Rockwell Automation, specializes in manufacturing industrial automation equipment. The product range includes programmable logic controllers (PLCs), motion control systems, safety devices, motor control equipment, automation software, and HMI panels. Allen-Bradley products are known for their reliability and integration with other systems.

IQElectro is not an authorized distributor.
QElectro LLC (IQElectro) is NOT an Authorized Distributor or in any way affiliated with Rockwell Automation, Siemens, or any other Manufacturers. IQElectro is NOT an Authorized Dealer of this product. The product may be of older version, date codes, or design than that available from authorized dealers. As IQElectro is not an authorized dealer of this product, the Original Manufacturer's Warranty and Support DO NOT apply. IQElectro sells SURPLUS only and DOES NOT SELL SOFTWARE or FIRMWARE licenses For more detailed information, please refer to the full version of our disclaimer policy Disclaimer Policy.
Description / Specifications

Description

The Allen-Bradley 2198-C4015-ERS servo drive is an industrial single-axis servo drive from the Kinetix 5300 series. It can work with circuits rated at up to 200,000 Amps with UL-fuses.



Technical Specifications



Brand Allen-Bradley
Series Kinetix 5300
Part Number 2198-C4015-ERS
Product Type Servo Drive
Axis Type Single-Axis
Frame Size 2
CE Approved Yes (With an AC Line Filter)
AC Line Filter 2198-DB08-F
Continuous Output Power 2.78 Watts
3-Phase Voltage 342 to 528 Volts RMS





Information About 2198-C4015-ERS

The 2198-C4015-ERS servo drive from Allen-Bradley is a Kinetix 5300 series servo drive with a single axis. This servo drive communicates through the Ethernet network and it can support all of the different Ethernet communication topologies which are the star, ring, and linear topologies. The 2198-C4015-ERS servo drive connects different types of Allen-Bradley ControlLogix or CompactLogix series controllers in these different topologies to handle the applications that it is designed for. This servo drive needs a Size 2 frame and it can produce 2.78 Watts of continuous output power. Its 3-phase voltage range is from 342 to 528 Volts RMS, its continuous output current rating is 5.2 Amps RMS, and its peak output current is 18 Amps RMS.

The Allen-Bradley 2198-C4015-ERS Kinetix 5300 single-axis servo drive needs to have an AC line filter to meet the requirements of the CE standards. It is compatible with the Allen-Bradley 2198-DB08-F AC line filter, and this AC line filter needs to be installed with a minimum clearance space of 1.97 inches or 50 millimeters between it and the servo drive, and its cable length should be as short as possible. The 2198-C4015-ERS servo drive is built with internal solid-state protection against short circuits in its motor, and it can be used on high-powered circuits if it is protected with the right kind of fuse. For example, this servo drive can handle 200,000-Amp circuits with fuses that are rated for UL applications, it can handle 10,000-Amp circuits with miniature circuit breakers, and it can handle 65,000-Amp circuits with molded-case circuit breakers.


Manufacturer information

Allen-Bradley, a brand of Rockwell Automation, specializes in manufacturing industrial automation equipment. The product range includes programmable logic controllers (PLCs), motion control systems, safety devices, motor control equipment, automation software, and HMI panels. Allen-Bradley products are known for their reliability and integration with other systems.
