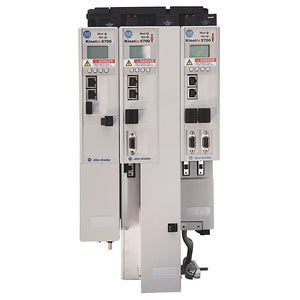

2198-D012-ERS3 | Allen-Bradley Kinetix 5700 Dual-Axis Module 2x 5A/3.2kW
2198-D012-ERS3 | Allen-Bradley Kinetix 5700 Dual-Axis Module 2x 5A/3.2kW
Part #: 2198-D012-ERS3 Manufactured by: Allen-Bradley

2198-D012-ERS3 | Allen-Bradley Kinetix 5700 Dual-Axis Module 2x 5A/3.2kW

Regular price
$1,779.00
Sale price
$1,779.00
Regular price
Never Used Surplus
1 in Stock
Shipping calculated at checkout.
Product Overview
The Allen-Bradley 2198-D012-ERS3 is an axis module that is part of the Kinetix Ethernet I/P 5700 servo system. This servo ...  Read more
We accept:
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Meta Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
IQElectro LLC BBB Business Review
warranty
Product comes with IQElectro 2-Year Warranty
Warranty for item #: 2198-D012-ERS3
IQElectro offers a complimentary 2-year warranty on all our products. This ensures that every purchase you make from IQElectro is a reliable and trustworthy investment for the future of your company. Warranty Terms
IQElectro is NOT an authorized distributor for Allen-Bradley
Original Manufacturer's Warranty Not Covered, This Product is SURPLUS.
2198-D012-ERS3 | Allen-Bradley Kinetix 5700 Dual-Axis Module 2x 5A/3.2kW
    2198-D012-ERS3 | Allen-Bradley Kinetix 5700 Dual-Axis Module 2x 5A/3.2kW
2198-D012-ERS3 | Allen-Bradley Kinetix 5700 Dual-Axis Module 2x 5A/3.2kW
Return/Exchange within 30-Days.
If any product is damaged upon delivery, you may request an Exchange or Refund within 30 days of receiving your order.
2-3 Day Free Shipping
IQElectro provides free shipping within 2-3 days from the moment the order is placed on our website.

Product Description P/N: 2198-D012-ERS3

Description / Specifications

Description

The Allen-Bradley 2198-D012-ERS3 is an axis module that is part of the Kinetix Ethernet I/P 5700 servo system. This servo drive is a dual-axis inverter with continuous output power of 1.7 kW at 240V input, and 3.4 kW @ 480V input. It has continuous output current of 7.0 A and continuous peak current of 17.6 A. It supports max. velocity loop of 400 Hz, Current loop of 1000 Hz and PWM frequency of 4 kHz.



Technical Specifications



Brand Allen-Bradley
Manufacturer Rockwell Automation
Part Number 2198-D012-ERS3
Internal Capacitance 165 F
Jumper connector Not installed (default)
DC input current @276…747V DC 5.3 A
Continuous power out (nom) (480V rms, three-phase) 3.4 kW
Continuous power out (nom) (240V rms, three-phase at 1/2 power) 1.7 kW
Continuous output current (0-pk) 7.0 A
Continuous output current (rms) 5.0 A
PWM Frequency 4 kHz
Bandwidth Current loop 1000 Hz
Bandwidth Velocity loop 400 Hz
Product Line Kinetix 5700 Ethernet I/P Servo System
Module Type Dual-axis Inverter
Dimensions 9.92 x 2.17 x 14.09 in (252 x 55 x 358 mm)
Continuous Output Power 3.4 kWatts
29 Volt Inrush Current 4.0 Amperes
Torque Value 4.4-5.3 lb*in (0.5-0.6 N*m)
Module Width 55 mm





Information About 2198-D012-ERS3

The Allen-Bradley 2198-D012-ERS3 is a Kinetix 5700 dual-axis servo drive. It incorporates the drive with a hardwired and integrated safety feature that has a safe torque-off (STO) function and SIL CL3 and PLe safety ratings. It also provides support for Hiperface and DSL encoder feedback. Its Dual Ethernet ports provide support for both linear and device level ring (DLR) topologies. It uses single-wire and tuning-less commissioning, simplifying installation and saving space.

The 2198-D012-ERS3 drive has a module width of 55mm. It has dimensions of 9.92 x 2.17 x 14.09 in. and weighs 9.17 lbs. It has a continuous and peak output current of 5A and 12.5A at RMS (root mean square) values and 7A and 17.6A at 0-peak values respectively. Continuous power output at 324 - 528V RMS, three-phase is 3.4 kW. It has a PWM frequency of 4 kHz and internal capacitance of 165 ?F.

The 2198-D012-ERS3 servo drive has a simple, powerful, and compact design for machines requiring large axis counts and higher power. The drive has an integrated motion and safety feature via the EtherNet/IP network facilitating its use in large machines. With its high-performance motor control and less integration time, it finds application in various industries such as beverages, diaper machines, bag machines, tire building machines, tray loaders, etc.

The 2198-D012-ERS3 is designed for max. velocity loop frequency of 400 Hz, Current loop frequency of 1000 Hz while the module’s Pulse Width Modulation (PWM) frequency of 4 kHz. This module has a physical measurement of 9.92 x 2.17 x 14.09 inches or 252 x 55 x 358 mm while it weighs 9.17 lbs or 4.16 kg.

Being part of the Kinetix 5700 Ethernet I/P servo system, it supports integrated motion over Ethernet I/P and provided with a dual Ethernet communication port for interfacing with liner, star and ring topologies. These embedded communication interface may be used with Allen-Bradley’s Stratix ethernet or 3rd party switches. Additionally, the Kinetix 5700 supports Safe Torque-Off (STO) feature as the device’ integrated safety and Advanced tuning. With the use of the 2198-D012-ERS3 dual axis inverter, commissioning and tuning time is reduced, and unknown mechanics is compensated.

The 2198-D012-ERS3 servo inverter may be used in different applications including beverage, consumer products, Food, and Automotive. It may also be used with specific industry segments such as Converting Print and Web Handling, Manufacturing and Assembly and Packaging.

The 2198-D012-ERS3 may be used to communicate with Allen-Bradley PanelView Human Machine Interfaces (HMI), Supervisory Control and Data Acquisition (SCADA) systems and direct integration with Logix controller platforms.



Manufacturer information

Allen-Bradley, a brand of Rockwell Automation, specializes in manufacturing industrial automation equipment. The product range includes programmable logic controllers (PLCs), motion control systems, safety devices, motor control equipment, automation software, and HMI panels. Allen-Bradley products are known for their reliability and integration with other systems.

Warrany image

IQElectro 2 Year Warranty

IQElectro offers a 2-Year Warranty on all our products. This complimentary two-year warranty ensures that every purchase from IQElectro is a secure investment in the future of your company.
Warranty Terms
warningIQElectro is not an authorized distributor.
IQElectro LLC (IQElectro) is NOT an Authorized Distributor or in any way affiliated with Rockwell Automation, Siemens, or any other Manufacturers. IQElectro is NOT an Authorized Dealer of this product. The product may be of older version, date codes, or design than that available from authorized dealers. As IQElectro is not an authorized dealer of this product, the Original Manufacturer's Warranty and Support DO NOT apply. IQElectro sells SURPLUS only and DOES NOT SELL SOFTWARE or FIRMWARE licenses. Some hardware products may contain software and firmware and may not be legally operated without first obtaining an appropriate license from the manufacturer. IQElectro makes no representation as to whether a product will or will not have software or firmware and, if it does, whether the software or firmware is the revision level that you need for your application. IQElectro also makes no representations as to your ability or right to download or otherwise obtain software or firmware for the product from the Original Manufacturer, its distributors, or any other source. IQElectro also makes no representations as to your right to install any such software or firmware on the product. IQElectro will not obtain or supply software or firmware on your behalf. It is your obligation to comply with the terms of any End-User License Agreement or similar document related to obtaining or installing software or firmware. Customer acknowledges and agrees that IQElectro DOES NOT provide any software, firmware, operating system, or right-to-use licenses with the products it sells. Customers understand and agree that proper software (firmware) licensing, maintenance, and upgrades are subject to the applicable manufacturer's Licensing Agreement or similar document. Disclaimer Policy.
Description / Specifications

Description

The Allen-Bradley 2198-D012-ERS3 is an axis module that is part of the Kinetix Ethernet I/P 5700 servo system. This servo drive is a dual-axis inverter with continuous output power of 1.7 kW at 240V input, and 3.4 kW @ 480V input. It has continuous output current of 7.0 A and continuous peak current of 17.6 A. It supports max. velocity loop of 400 Hz, Current loop of 1000 Hz and PWM frequency of 4 kHz.



Technical Specifications



Brand Allen-Bradley
Manufacturer Rockwell Automation
Part Number 2198-D012-ERS3
Internal Capacitance 165 F
Jumper connector Not installed (default)
DC input current @276…747V DC 5.3 A
Continuous power out (nom) (480V rms, three-phase) 3.4 kW
Continuous power out (nom) (240V rms, three-phase at 1/2 power) 1.7 kW
Continuous output current (0-pk) 7.0 A
Continuous output current (rms) 5.0 A
PWM Frequency 4 kHz
Bandwidth Current loop 1000 Hz
Bandwidth Velocity loop 400 Hz
Product Line Kinetix 5700 Ethernet I/P Servo System
Module Type Dual-axis Inverter
Dimensions 9.92 x 2.17 x 14.09 in (252 x 55 x 358 mm)
Continuous Output Power 3.4 kWatts
29 Volt Inrush Current 4.0 Amperes
Torque Value 4.4-5.3 lb*in (0.5-0.6 N*m)
Module Width 55 mm





Information About 2198-D012-ERS3

The Allen-Bradley 2198-D012-ERS3 is a Kinetix 5700 dual-axis servo drive. It incorporates the drive with a hardwired and integrated safety feature that has a safe torque-off (STO) function and SIL CL3 and PLe safety ratings. It also provides support for Hiperface and DSL encoder feedback. Its Dual Ethernet ports provide support for both linear and device level ring (DLR) topologies. It uses single-wire and tuning-less commissioning, simplifying installation and saving space.

The 2198-D012-ERS3 drive has a module width of 55mm. It has dimensions of 9.92 x 2.17 x 14.09 in. and weighs 9.17 lbs. It has a continuous and peak output current of 5A and 12.5A at RMS (root mean square) values and 7A and 17.6A at 0-peak values respectively. Continuous power output at 324 - 528V RMS, three-phase is 3.4 kW. It has a PWM frequency of 4 kHz and internal capacitance of 165 ?F.

The 2198-D012-ERS3 servo drive has a simple, powerful, and compact design for machines requiring large axis counts and higher power. The drive has an integrated motion and safety feature via the EtherNet/IP network facilitating its use in large machines. With its high-performance motor control and less integration time, it finds application in various industries such as beverages, diaper machines, bag machines, tire building machines, tray loaders, etc.

The 2198-D012-ERS3 is designed for max. velocity loop frequency of 400 Hz, Current loop frequency of 1000 Hz while the module’s Pulse Width Modulation (PWM) frequency of 4 kHz. This module has a physical measurement of 9.92 x 2.17 x 14.09 inches or 252 x 55 x 358 mm while it weighs 9.17 lbs or 4.16 kg.

Being part of the Kinetix 5700 Ethernet I/P servo system, it supports integrated motion over Ethernet I/P and provided with a dual Ethernet communication port for interfacing with liner, star and ring topologies. These embedded communication interface may be used with Allen-Bradley’s Stratix ethernet or 3rd party switches. Additionally, the Kinetix 5700 supports Safe Torque-Off (STO) feature as the device’ integrated safety and Advanced tuning. With the use of the 2198-D012-ERS3 dual axis inverter, commissioning and tuning time is reduced, and unknown mechanics is compensated.

The 2198-D012-ERS3 servo inverter may be used in different applications including beverage, consumer products, Food, and Automotive. It may also be used with specific industry segments such as Converting Print and Web Handling, Manufacturing and Assembly and Packaging.

The 2198-D012-ERS3 may be used to communicate with Allen-Bradley PanelView Human Machine Interfaces (HMI), Supervisory Control and Data Acquisition (SCADA) systems and direct integration with Logix controller platforms.



Manufacturer information

Allen-Bradley, a brand of Rockwell Automation, specializes in manufacturing industrial automation equipment. The product range includes programmable logic controllers (PLCs), motion control systems, safety devices, motor control equipment, automation software, and HMI panels. Allen-Bradley products are known for their reliability and integration with other systems.
