Part #: 2198-H008-ERS Manufactured by: Allen-Bradley
Regular price
$999.00
Sale price
$999.00
Regular price
340 in Stock

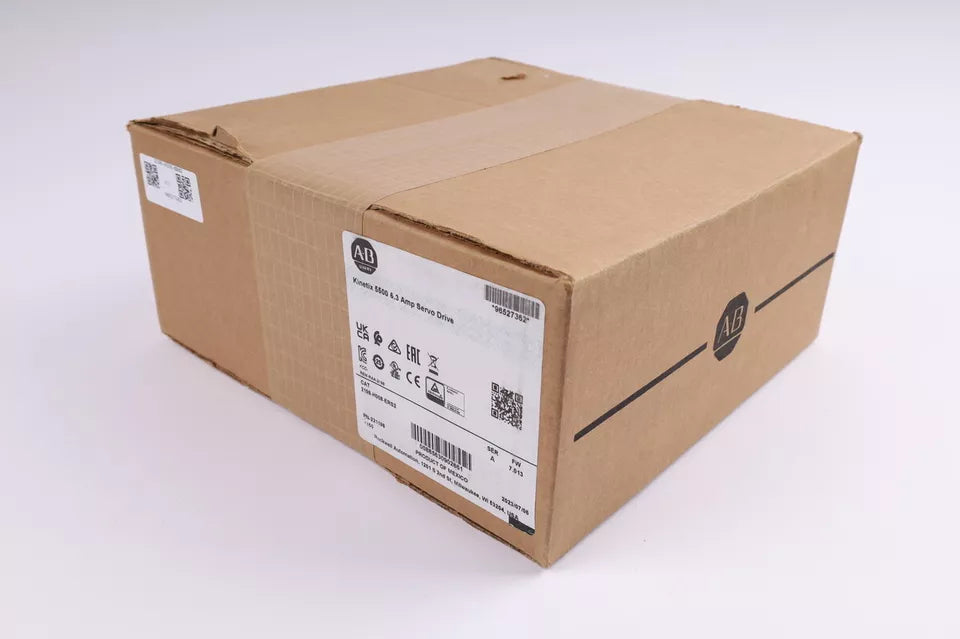

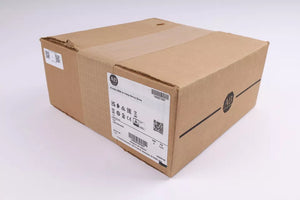

Condition: New-Surplus Original Box
Shipping calculated at checkout.
Product Overview
The Allen-Bradley 2198-H008-ERS Kinetix 5500 Servo Drive exhibits Drive 3.5 Amperes Continuous Output Current (0-peak), 6....  Read more
We accept:
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
warranty
IQElectro 2-Year Warranty
Warranty for Product #: 2198-H008-ERS
IQElectro offers a free 2-year warranty on all products. You can trust that every purchase is a reliable investment in the future of your company. Warranty Terms
2-3 Day Free Shipping
Packed Ready to Ship
24/7 Expert Support
Return within 30-Days
IQElectro LLC BBB Business Review
IQElectro is Not an authorized distributor for Allen-Bradley
Original Manufacturer's Warranty Not Covered, This Product is SURPLUS.

Product Description P/N: 2198-H008-ERS

Description / Specifications

Description

The 2198-H008-ERS is a Kinetix 5500 Servo Drive that is manufactured by Allen-Bradley. This Servo This drive is powered by an input supply voltage range of 195-264V rms, 1-pahse and 3-phase with 240V nominal voltage and 324-528V rms, 3-phase with 480VAC nominal voltage. It provides a continuous output current (rms) of 3.5 A, peak output Current of 11.3 A and output power of 0.5 kW @ 195…264V rms, single-phase; 0.8 kW @ 195…264V rms, three-phase and 1.6 kW @ 324…528V rms, three-phase.



Technical Specifications



Brand Allen-Bradley
Manufacturer Rockwell Automation
Part Number 2198-H008-ERS
Current Loop 1000 Hz
Peak Output Current (0-peak) 8.8 A
Continuous Output Current (rms) 2.5 A
Continuous Output Power 0.5 KW at 195…264V rms, single-phase; 0.8 KW at 195…264V rms, three-phase; 1.6 kW at 324…528V rms, three-phase;
Product Category Kinetix 5500
Peak Output Current (rms) 6.25 A
Velocity Loop 300 Hz
Efficiency 0.97
Short-circuit current rating 200,000 A (rms) symmetrical
Continuous Output Current (0-peak) 3.5 A
Input Voltage 195…264V rms, single-phase (240V nom); 195…264V rms, three-phase (240V nom); 324…528V rms, three-phase (480V nom);
Internal shunt power 30 W
Safe Torque Off (STO) Feature Hardwired
Frame Size Frame Size 1
Dimensions 1.97 x 8.90 x 8.46 in (50 x 226 x 215 mm)
Integrated Safety Over Ethernet/IP No
Nom Drive Voltage 240 V (Single Phase); 240/480 V (Three Phase)
Peak Output Current 6.3 Amperes
Hardwired Safety Yes





Information About 2198-H008-ERS

The 2198-H008-ERS is an Allen-Bradley is a Kintetix 5000 Servo drive. This servo drive is operated by an input supply voltage range of 195-264V rms, 1-phase with 240VAC, 1-Phase nominal supply; 195-264V rms, 3-phase with 240V nominal supply and 324-528V rms, 3-phase with 480VAC nominal voltage. This servo drive delivers a continuous output current (rms) of 3.5 A, peak output Current of 11.3 A and output power of 0.5 kW @ 195…264V rms, 1-phase; 0.8 kW @ 195…264V rms, 3-phase and 1.6 kW @ 324…528V rms, 3-phase.

When operating in stand-alone drive systems, recommended branch circuit components for 240VAC, 1-Phase supply and UL rated applications include KTK-R-5 busmann fuse and 140U-D6D2-B20 molded case C; For 240VAC, 1-Phase supply and IEC or non UL applications recommended components are a 6A fuse and 140U-D6D2-B20 molded case CB; For 240VAC / 480VAC, 3-Phase and UL rated application, recommended busman fuse is KTK-R-7 and 140U-D6D3-B60; For 240VAC / 480VAC, 3-Phase and IEC (non-UL) application, recommended fuse is a 6A fuse and 140U-D6D3-B60 molded case circuit braker.

The 2198-H008-ERS supports a hardwired version of Safe Torque Off (STO) functionality. To implement this features with this drive, it requires integration to a ControlLogix® 5570, ControlLogix 5580, CompactLogix™ 5370, or CompactLogix 5380. The dedicated STO connector located on the drive’s front panel is used. The STO feature enables this drive to be used in safety-related application that require up to ISO 13849-1, Performance Level d (PL d) and Category 3, SIL CL 2 per IEC 61508, IEC 61800-5-2, and IEC 62061 Safety levels.

The module is sized for 0.5kW to 1.6kW motors, depending on output voltage. This servo drive module can operate as a standalone device or can be grouped with other servo modules into a multi-axis configuration (shared DC, shared AC, shared AC/DC hybrid, and shared DC/AC). This system is designed to operate optimally with the Allen Bradley family of controllers such as CompactLogix 5370 and ControlLogix controllers. By using such a powerful programming and configuration tool, projects containing motor motion control will get much easier to put into operation and will provide an almost maintenance free solution. The 2198-H008-ERS modules have a protection system that operates in accordance with UL 508 C and is designed as solid-state motor overload protection. Motor overload protection carries out thermal memory algorithms and predicts actual motor temperature based on operating conditions, as long as control power is constantly in use. If control power is removed, thermal memory is not retained. This module also gives an option of input for an external temperature sensor device, implanted in the motor, to maintain the UL requirement for motor overload protection. The 2198-H008-ERS works with an AC input/output voltage of 240 Volts AC for single-phase and three-phase systems and 480 Volts AC for three-phase systems. The power supply for control inputs is 24 Volts DC and nominal bus output supply is 276 Volts DC to 747 Volts DC. The housing of the servo module fits into a 50 x 170 x 200 millimeter (1.97 x 6.69 x 7.87 inch) space. Restrictions concerning cable lengths from the module to the motors are 50 meters (164 feet) for standard non-flex cables and 30 meters (98.4 feet) for continuous flex cables. The Kinetix 5500 drive series, which includes the servo drive module 2198-H008-ERS, have accessories like Bulletin 2198 capacitor modules, AC line filters, shared-bus connection systems, and Bulletin 2097 external shunt resistors.



Manufacturer information

Allen-Bradley, a brand of Rockwell Automation, specializes in manufacturing industrial automation equipment. The product range includes programmable logic controllers (PLCs), motion control systems, safety devices, motor control equipment, automation software, and HMI panels. Allen-Bradley products are known for their reliability and integration with other systems.

IQElectro is not an authorized distributor.
QElectro LLC (IQElectro) is NOT an Authorized Distributor or in any way affiliated with Rockwell Automation, Siemens, or any other Manufacturers. IQElectro is NOT an Authorized Dealer of this product. The product may be of older version, date codes, or design than that available from authorized dealers. As IQElectro is not an authorized dealer of this product, the Original Manufacturer's Warranty and Support DO NOT apply. IQElectro sells SURPLUS only and DOES NOT SELL SOFTWARE or FIRMWARE licenses For more detailed information, please refer to the full version of our disclaimer policy Disclaimer Policy.
Description / Specifications

Description

The 2198-H008-ERS is a Kinetix 5500 Servo Drive that is manufactured by Allen-Bradley. This Servo This drive is powered by an input supply voltage range of 195-264V rms, 1-pahse and 3-phase with 240V nominal voltage and 324-528V rms, 3-phase with 480VAC nominal voltage. It provides a continuous output current (rms) of 3.5 A, peak output Current of 11.3 A and output power of 0.5 kW @ 195…264V rms, single-phase; 0.8 kW @ 195…264V rms, three-phase and 1.6 kW @ 324…528V rms, three-phase.



Technical Specifications



Brand Allen-Bradley
Manufacturer Rockwell Automation
Part Number 2198-H008-ERS
Current Loop 1000 Hz
Peak Output Current (0-peak) 8.8 A
Continuous Output Current (rms) 2.5 A
Continuous Output Power 0.5 KW at 195…264V rms, single-phase; 0.8 KW at 195…264V rms, three-phase; 1.6 kW at 324…528V rms, three-phase;
Product Category Kinetix 5500
Peak Output Current (rms) 6.25 A
Velocity Loop 300 Hz
Efficiency 0.97
Short-circuit current rating 200,000 A (rms) symmetrical
Continuous Output Current (0-peak) 3.5 A
Input Voltage 195…264V rms, single-phase (240V nom); 195…264V rms, three-phase (240V nom); 324…528V rms, three-phase (480V nom);
Internal shunt power 30 W
Safe Torque Off (STO) Feature Hardwired
Frame Size Frame Size 1
Dimensions 1.97 x 8.90 x 8.46 in (50 x 226 x 215 mm)
Integrated Safety Over Ethernet/IP No
Nom Drive Voltage 240 V (Single Phase); 240/480 V (Three Phase)
Peak Output Current 6.3 Amperes
Hardwired Safety Yes





Information About 2198-H008-ERS

The 2198-H008-ERS is an Allen-Bradley is a Kintetix 5000 Servo drive. This servo drive is operated by an input supply voltage range of 195-264V rms, 1-phase with 240VAC, 1-Phase nominal supply; 195-264V rms, 3-phase with 240V nominal supply and 324-528V rms, 3-phase with 480VAC nominal voltage. This servo drive delivers a continuous output current (rms) of 3.5 A, peak output Current of 11.3 A and output power of 0.5 kW @ 195…264V rms, 1-phase; 0.8 kW @ 195…264V rms, 3-phase and 1.6 kW @ 324…528V rms, 3-phase.

When operating in stand-alone drive systems, recommended branch circuit components for 240VAC, 1-Phase supply and UL rated applications include KTK-R-5 busmann fuse and 140U-D6D2-B20 molded case C; For 240VAC, 1-Phase supply and IEC or non UL applications recommended components are a 6A fuse and 140U-D6D2-B20 molded case CB; For 240VAC / 480VAC, 3-Phase and UL rated application, recommended busman fuse is KTK-R-7 and 140U-D6D3-B60; For 240VAC / 480VAC, 3-Phase and IEC (non-UL) application, recommended fuse is a 6A fuse and 140U-D6D3-B60 molded case circuit braker.

The 2198-H008-ERS supports a hardwired version of Safe Torque Off (STO) functionality. To implement this features with this drive, it requires integration to a ControlLogix® 5570, ControlLogix 5580, CompactLogix™ 5370, or CompactLogix 5380. The dedicated STO connector located on the drive’s front panel is used. The STO feature enables this drive to be used in safety-related application that require up to ISO 13849-1, Performance Level d (PL d) and Category 3, SIL CL 2 per IEC 61508, IEC 61800-5-2, and IEC 62061 Safety levels.

The module is sized for 0.5kW to 1.6kW motors, depending on output voltage. This servo drive module can operate as a standalone device or can be grouped with other servo modules into a multi-axis configuration (shared DC, shared AC, shared AC/DC hybrid, and shared DC/AC). This system is designed to operate optimally with the Allen Bradley family of controllers such as CompactLogix 5370 and ControlLogix controllers. By using such a powerful programming and configuration tool, projects containing motor motion control will get much easier to put into operation and will provide an almost maintenance free solution. The 2198-H008-ERS modules have a protection system that operates in accordance with UL 508 C and is designed as solid-state motor overload protection. Motor overload protection carries out thermal memory algorithms and predicts actual motor temperature based on operating conditions, as long as control power is constantly in use. If control power is removed, thermal memory is not retained. This module also gives an option of input for an external temperature sensor device, implanted in the motor, to maintain the UL requirement for motor overload protection. The 2198-H008-ERS works with an AC input/output voltage of 240 Volts AC for single-phase and three-phase systems and 480 Volts AC for three-phase systems. The power supply for control inputs is 24 Volts DC and nominal bus output supply is 276 Volts DC to 747 Volts DC. The housing of the servo module fits into a 50 x 170 x 200 millimeter (1.97 x 6.69 x 7.87 inch) space. Restrictions concerning cable lengths from the module to the motors are 50 meters (164 feet) for standard non-flex cables and 30 meters (98.4 feet) for continuous flex cables. The Kinetix 5500 drive series, which includes the servo drive module 2198-H008-ERS, have accessories like Bulletin 2198 capacitor modules, AC line filters, shared-bus connection systems, and Bulletin 2097 external shunt resistors.



Manufacturer information

Allen-Bradley, a brand of Rockwell Automation, specializes in manufacturing industrial automation equipment. The product range includes programmable logic controllers (PLCs), motion control systems, safety devices, motor control equipment, automation software, and HMI panels. Allen-Bradley products are known for their reliability and integration with other systems.
