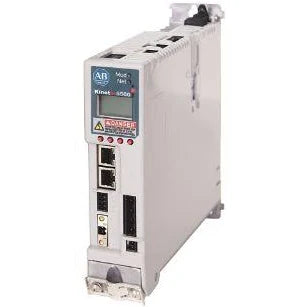

Part #: 2198-H008-ERS2 Manufactured by: Allen-Bradley
$957.00
$957.00
5 in Stock
Condition: New – Open box
Shipping calculated at checkout.
Product Overview
The Allen-Bradley 2198-H008-ERS2 Kinetix 5500 Servo Drive exhibits 3.5 Amperes Continuous Output Current (0-peak), 6.3 Amp...  Read more
We accept:
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

Do you need help?

Call our Sales Manager
phone
+1 (828) 222-3490
Mon./Sat.: 7:00AM - 8:00PM
Write to us now
email
sales@iqelectro.com
Mon./Sat.: 7:00AM - 12:00PM
warranty
IQElectro 2-Year Warranty
Warranty for Product #: 2198-H008-ERS2
IQElectro offers a free 2-year warranty on all products. You can trust that every purchase is a reliable investment in the future of your company. Warranty Terms
2-3 Day Free Shipping
Packed Ready to Ship
24/7 Expert Support
Return within 30-Days
IQElectro is Not an authorized distributor for Allen-Bradley
Original Manufacturer's Warranty Not Covered, This Product is SURPLUS.

Product Description P/N: 2198-H008-ERS2

Description / Specifications

Description

The Allen-Bradley 2198-H008-ERS2 is a Kinetix 5500 servo drive designed for high-performance motion control applications. Supporting both 240V and 480V AC input systems, it provides continuous output currents up to 2.5A (rms) with peak capacities up to 6.25A (rms). With integrated Safe Torque Off (STO) over EtherNet/IP and dual Ethernet ports, this drive enables premier integration with Logix-based controllers for streamlined commissioning and advanced safety control.





Technical Specifications

Condition New/Never Used Surplus
Brand Allen-Bradley
Series Kinetix 5500
Part Number 2198-H008-ERS2
Manufacturer Rockwell Automation
Input Voltage 195–264V AC (1/3-phase), 324–528V AC (3-phase)
Nominal Drive Voltage 240V (1-phase); 240/480V (3-phase)
Continuous Output Current (rms) 2.5 A
Continuous Output Current (0-pk) 3.5 A
Peak Output Current (rms) 6.25 A
Peak Output Current (0-pk) 8.8 A
Output Power 0.5 kW (1-phase); 0.8 kW (3-phase 240V); 1.6 kW (3-phase 480V)
Efficiency 0.97
Short-Circuit Rating 200,000 A (rms)
Control Input Voltage 24V DC
Current Loop Bandwidth 1000 Hz
Velocity Loop Bandwidth 300 Hz
Integrated Safety Safe Torque Off (STO) over EtherNet/IP
Frame Size 1
Internal Shunt Power 30 W
Dimensions 1.97 x 8.90 x 8.46 in (50 x 226 x 215 mm)
Communication Dual EtherNet/IP ports
Hardwired Safety Not supported
Product Type Servo Drive
Category Motion Control





Information About 2198-H008-ERS2

The Allen-Bradley 2198-H008-ERS2 is part of the Kinetix 5500 servo drive family, offering high-performance EtherNet/IP-based integrated motion. It is designed to operate with both single-phase and three-phase supply voltages between 195…264V AC (240V nominal) and three-phase 324…528V AC (480V nominal). Depending on the supply voltage and configuration, it delivers power ratings of 0.5 kW, 0.8 kW, and 1.6 kW. This drive features dual Ethernet ports to support ring or linear topologies and provides Integrated Safe Torque Off (STO) compliant over EtherNet/IP, allowing safety controllers such as Compact GuardLogix and GuardLogix 5570 to send safety commands directly over the network. The system supports premier integration through Studio 5000 Logix Designer, simplifying parameter management, diagnostics, and commissioning. The 2198-H008-ERS2 includes connectors for feedback, motor power, AC mains, DC bus, brake control, and shunt resistor. It supports zero-stacking installation for compact panel layouts and offers current loop bandwidth of 1000 Hz and velocity loop bandwidth of 300 Hz for precision motion control.

Key Features:

  • Kinetix 5500 EtherNet/IP integrated motion servo drive
  • Dual-port Ethernet for linear or Device Level Ring (DLR) topologies
  • Safe Torque Off (STO) over EtherNet/IP
  • Operates on 240V and 480V AC systems
  • Continuous output: 2.5A rms; Peak output: 6.25A rms
  • Output power up to 1.6 kW
  • Current loop bandwidth: 1000 Hz
  • Zero-stacking design for compact panels
  • Compatible with Kinetix VP, MP-Series motors, and induction motors
  • Studio 5000 Logix Designer integration
  • High-performance EtherNet/IP Kinetix 5500 servo drive with STO, 240/480V AC input, and 2.5A continuous output rating.

Compatible with Kinetix VP servo motors, MP-Series servo motors (via feedback converters), and induction motors with open-loop control, this servo drive is suitable for multi-axis and single-axis applications requiring fast response, accuracy, and integrated safety. Its short-circuit rating of 200,000A ensures high durability in demanding industrial environments.

Frequently Asked Questions about 2198-H008-ERS2
Question: What is the output power and current capacity of the 2198-H008-ERS2?
Date Update:04/06/2025
Answer:

The drive delivers up to 0.5 kW on single-phase 240V input, 0.8 kW on three-phase 240V input, and 1.6 kW on three-phase 480V input. It supports a continuous output current of 2.5 A (rms) and peak output current of 6.25 A (rms), with instantaneous peak up to 8.8 A. This enables the drive to handle rapid acceleration and dynamic loads without overheating. It is optimized for compact and mid-range motion applications requiring precision and responsiveness. These values help users correctly size motors and motion loads.

Question: What are the dimensions of the 2198-H008-ERS2?
Date Update:04/06/2025
Answer:

The physical dimensions of the 2198-H008-ERS2 servo drive are approximately 50 mm (1.97 in) wide, 226 mm (8.90 in) high, and 215 mm (8.46 in) deep. Its compact form factor supports zero-stacking installation, making it ideal for use in tight control cabinets. Despite its small size, the drive offers high output power and connectivity. This enables efficient panel space utilization while maintaining high servo performance. The slim design also reduces the need for additional ventilation hardware.

Question: How does motor overload protection work in this drive?
Date Update:04/06/2025
Answer:

The 2198-H008-ERS2 provides solid-state motor overload protection compliant with UL 508C standards. It uses a thermal memory algorithm to estimate internal motor temperature based on electrical load and duration. When control power is maintained, this memory helps prevent motor overheating. Additionally, the drive can monitor an embedded thermistor in the motor for extra protection. If unsafe thermal conditions are detected, the drive will shut down to protect the motor.

Question: What types of motors are compatible with the 2198-H008-ERS2?
Date Update:04/06/2025
Answer:

The drive is compatible with rotary and linear servo motors from the Kinetix VP series (VPL, VPF, VPS), MP series (MPL, MPF, MPM, MPS), and induction motors in open-loop mode. It supports both 220V and 400V-class motors, making it versatile for global applications. Feedback options such as Hiperface DSL can be used via converter kits. The maximum motor cable length is 50 meters for standard cables and 30 meters for continuous flex cables. Compatibility with multiple motor series allows system flexibility in retrofit and OEM scenarios.

Question: Is the 2198-H008-ERS2 still being manufactured?
Date Update:04/06/2025
Answer:

Yes, the 2198-H008-ERS2 is currently in production and actively supported by Rockwell Automation. It is part of the Kinetix 5500 series, a modern family of servo drives designed for EtherNet/IP motion control. The drive is recommended for new machine designs and future expansions due to its integration capabilities and safety features. It is also compatible with current Logix-based control systems, including GuardLogix and CompactLogix. Rockwell continues to supply firmware updates and accessories for this product line.

IQElectro is not an authorized distributor.
IQElectro LLC (IQElectro) is NOT an Authorized Distributor or in any way affiliated with Rockwell Automation, Siemens, or any other Manufacturers. IQElectro is NOT an Authorized Dealer of this product. The product may be of older version, date codes, or design than that available from authorized dealers. As IQElectro is not an authorized dealer of this product, the Original Manufacturer's Warranty and Support DO NOT apply. IQElectro sells SURPLUS only and DOES NOT SELL SOFTWARE or FIRMWARE licenses For more detailed information, please refer to the full version of our disclaimer policy Disclaimer Policy.
