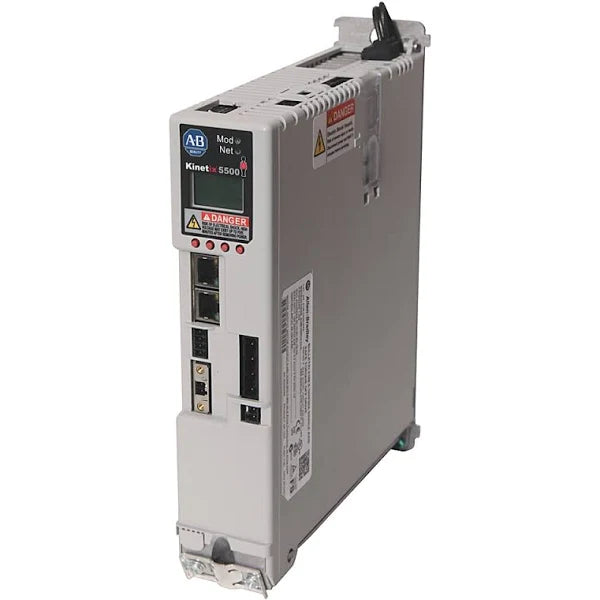

Part #: 2198-H025-ERS Manufactured by: Allen-Bradley
Regular price
$1,785.00
Sale price
$1,785.00
Regular price
1 in Stock
Condition: New-Surplus Original Box
Shipping calculated at checkout.
Product Overview
The Allen-Bradley 2198-H025-ERS Kinetix 5500 Servo Drive exhibits 11.5 Amperes Continuous Output Current (0-peak), 20 Ampe...  Read more
We accept:
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
warranty
IQElectro 2-Year Warranty
Warranty for Product #: 2198-H025-ERS
IQElectro offers a free 2-year warranty on all products. You can trust that every purchase is a reliable investment in the future of your company. Warranty Terms
2-3 Day Free Shipping
Packed Ready to Ship
24/7 Expert Support
Return within 30-Days
IQElectro LLC BBB Business Review
IQElectro is Not an authorized distributor for Allen-Bradley
Original Manufacturer's Warranty Not Covered, This Product is SURPLUS.

Product Description P/N: 2198-H025-ERS

Description / Specifications

Description

The Allen-Bradley 2198-H025-ERS is a Kinetix 5500 Servo Drive. This Servo Drive is directly compatible with the CompactLogix, ControlLogix and GuardLogix controller for implementing Integrated Motion over Ethernet/IP. This drive is powered by an input supply voltage range of 195-264V rms, 3-phase with 240V nominal voltage and 324-528V rms, 3-phase with 480VAC nominal voltage. This drive delivers a continuous output current (rms) of 8.0 A, peak output Current of 11.3 A and output power of 4.0kW - 8.3 kW depending on the input voltage supply.



Technical Specifications



Brand Allen-Bradley
Manufacturer Rockwell Automation
Part Number 2198-H025-ERS
Product Category Kinetix 5500
Internal shunt power 50 W
Integrated Safety Over Ethernet I/P Supported
Short-circuit current rating 200,000 A (rms) symmetrical
Efficiency 97%
Current Loop 1000 Hz
Velocity Loop 300 Hz
Peak Output Current (rms) 17.7 A
Peak Output Current (0-peak) 12.5 A
Continuous Output Current (rms) 7.1 A
Continuous Output Power 1.5 KW at 195…264V rms, three-phase; 3.2 kW at 324…528V rms, three-phase;
Input Frequency 47…63 Hz
Main AC input Current 5.20 A @ 240 V; 3.40 A @ 480V
Continuous Output Current (0-peak) 5.0 A
Input Voltage 195…264V rms, three-phase (240V nom); 324…528V rms, three-phase (480V nom);
Hardwired Safety Yes
Dimensions 2.16 x 8.90 x 10.43 in (55 x 226 x 265 mm)
Integrated Safety Over Ethernet/IP No
Nom Drive Voltage 240/480 V (Three Phase)
Peak Output Current 20 Amperes
Frame Size Frame Size 2





Information About 2198-H025-ERS

The Allen-Bradley 2198-H025-ERS is a motion and position control drive that is part of the 2198 product bulletin. This product is a Kinetix 5500 Ethernet I/P Servo drive that comes with modern control and connectivity features. This drive is compatible with the the Studio 5000 Design environment for implementing integrated architecture. Using the integrated architecture and the integrated dual Ethernet communication interfaces 2198-H025-ERS may be fully integrated to CompactLogix, ControlLogix and GuardLogix controller platforms. Integrating this Kinetix drives to these controllers enables access to the drive parameters through add-on instruction and profiles.

The 2198-H025-ERS operates when supplied with a voltage range of 195-264V rms, 3-phase and nominal value of 240V. It is also compatible with 324-528V rms, 3-phase with 480VAC nominal voltage level. It delivers a continuous output current (rms) of 8.0 A, peak output Current of 11.3 A and output power of 4.0kW @ 195-264V rms, three-phase and 8.3 kW @ 324-528V rms, three-phase.

For branch circuit protection, Allen-Bradley recommends installation of protective devices such as fuse and circuit breakers. For the 2198-H025-ERS, appropriate fuse is KTK-R-20 Bussman fuse and Molded Case CB 140U-D6D3-C20 if used for UL applications. For non-UL applications, recommended DIN gG Fuses is 20 A and Molded case circuit breaker 140U-D6D3-C20. This drive also supports installation in Shared DC or common-bus drive systems, Shared AC Drive Systems and Shared AC/DC and Hybrid Systems.

This Bulletin 2198 Module is three phase and has a frame size of two (2), a continuous output current of 11.3 A 0-pk, and 240 to 480 Volts of nominal drive voltage with an input voltage range of 324 to 528 Volts RMS. It comes with dual-port connectivity to support a linear, ring, or star Ethernet topology using additional CompactLogix, GuardLogix, or ControlLogix programmable controllers. The 2198-H025-ERS Servo Drive features the hardwired safe torque-off or STO functionality. This allows the inverter power transistors to be safely turned off as a response to a digital input. It supports cascading of parallel input terminals to adjacent drives. To wire external devices and cascade hardwired safety connections from one drive to another, an STO connector is used. However, not all applications will require this safety function. In this case, jumper wires must be installed to bypass the STO feature. The 2198-H025-ERS Module ships with installation instructions, a connector kit for motor feedback, a wiring plug connector for shunt power/ RC connections and connectors for safe torque-off (STO), 24 Volts of control input power (CP), digital inputs (IOD), mains input power (IPD), motor brake (BC), and motor power. The 2198-H025-ERS is designed for use in both grounded and ungrounded power setups. By default, grounding screws are installed for grounded configurations. Remove these when operating in ungrounded, corner-grounded, and impedance-grounded environments



Manufacturer information

Allen-Bradley, a brand of Rockwell Automation, specializes in manufacturing industrial automation equipment. The product range includes programmable logic controllers (PLCs), motion control systems, safety devices, motor control equipment, automation software, and HMI panels. Allen-Bradley products are known for their reliability and integration with other systems.

IQElectro is not an authorized distributor.
QElectro LLC (IQElectro) is NOT an Authorized Distributor or in any way affiliated with Rockwell Automation, Siemens, or any other Manufacturers. IQElectro is NOT an Authorized Dealer of this product. The product may be of older version, date codes, or design than that available from authorized dealers. As IQElectro is not an authorized dealer of this product, the Original Manufacturer's Warranty and Support DO NOT apply. IQElectro sells SURPLUS only and DOES NOT SELL SOFTWARE or FIRMWARE licenses For more detailed information, please refer to the full version of our disclaimer policy Disclaimer Policy.
Description / Specifications

Description

The Allen-Bradley 2198-H025-ERS is a Kinetix 5500 Servo Drive. This Servo Drive is directly compatible with the CompactLogix, ControlLogix and GuardLogix controller for implementing Integrated Motion over Ethernet/IP. This drive is powered by an input supply voltage range of 195-264V rms, 3-phase with 240V nominal voltage and 324-528V rms, 3-phase with 480VAC nominal voltage. This drive delivers a continuous output current (rms) of 8.0 A, peak output Current of 11.3 A and output power of 4.0kW - 8.3 kW depending on the input voltage supply.



Technical Specifications



Brand Allen-Bradley
Manufacturer Rockwell Automation
Part Number 2198-H025-ERS
Product Category Kinetix 5500
Internal shunt power 50 W
Integrated Safety Over Ethernet I/P Supported
Short-circuit current rating 200,000 A (rms) symmetrical
Efficiency 97%
Current Loop 1000 Hz
Velocity Loop 300 Hz
Peak Output Current (rms) 17.7 A
Peak Output Current (0-peak) 12.5 A
Continuous Output Current (rms) 7.1 A
Continuous Output Power 1.5 KW at 195…264V rms, three-phase; 3.2 kW at 324…528V rms, three-phase;
Input Frequency 47…63 Hz
Main AC input Current 5.20 A @ 240 V; 3.40 A @ 480V
Continuous Output Current (0-peak) 5.0 A
Input Voltage 195…264V rms, three-phase (240V nom); 324…528V rms, three-phase (480V nom);
Hardwired Safety Yes
Dimensions 2.16 x 8.90 x 10.43 in (55 x 226 x 265 mm)
Integrated Safety Over Ethernet/IP No
Nom Drive Voltage 240/480 V (Three Phase)
Peak Output Current 20 Amperes
Frame Size Frame Size 2





Information About 2198-H025-ERS

The Allen-Bradley 2198-H025-ERS is a motion and position control drive that is part of the 2198 product bulletin. This product is a Kinetix 5500 Ethernet I/P Servo drive that comes with modern control and connectivity features. This drive is compatible with the the Studio 5000 Design environment for implementing integrated architecture. Using the integrated architecture and the integrated dual Ethernet communication interfaces 2198-H025-ERS may be fully integrated to CompactLogix, ControlLogix and GuardLogix controller platforms. Integrating this Kinetix drives to these controllers enables access to the drive parameters through add-on instruction and profiles.

The 2198-H025-ERS operates when supplied with a voltage range of 195-264V rms, 3-phase and nominal value of 240V. It is also compatible with 324-528V rms, 3-phase with 480VAC nominal voltage level. It delivers a continuous output current (rms) of 8.0 A, peak output Current of 11.3 A and output power of 4.0kW @ 195-264V rms, three-phase and 8.3 kW @ 324-528V rms, three-phase.

For branch circuit protection, Allen-Bradley recommends installation of protective devices such as fuse and circuit breakers. For the 2198-H025-ERS, appropriate fuse is KTK-R-20 Bussman fuse and Molded Case CB 140U-D6D3-C20 if used for UL applications. For non-UL applications, recommended DIN gG Fuses is 20 A and Molded case circuit breaker 140U-D6D3-C20. This drive also supports installation in Shared DC or common-bus drive systems, Shared AC Drive Systems and Shared AC/DC and Hybrid Systems.

This Bulletin 2198 Module is three phase and has a frame size of two (2), a continuous output current of 11.3 A 0-pk, and 240 to 480 Volts of nominal drive voltage with an input voltage range of 324 to 528 Volts RMS. It comes with dual-port connectivity to support a linear, ring, or star Ethernet topology using additional CompactLogix, GuardLogix, or ControlLogix programmable controllers. The 2198-H025-ERS Servo Drive features the hardwired safe torque-off or STO functionality. This allows the inverter power transistors to be safely turned off as a response to a digital input. It supports cascading of parallel input terminals to adjacent drives. To wire external devices and cascade hardwired safety connections from one drive to another, an STO connector is used. However, not all applications will require this safety function. In this case, jumper wires must be installed to bypass the STO feature. The 2198-H025-ERS Module ships with installation instructions, a connector kit for motor feedback, a wiring plug connector for shunt power/ RC connections and connectors for safe torque-off (STO), 24 Volts of control input power (CP), digital inputs (IOD), mains input power (IPD), motor brake (BC), and motor power. The 2198-H025-ERS is designed for use in both grounded and ungrounded power setups. By default, grounding screws are installed for grounded configurations. Remove these when operating in ungrounded, corner-grounded, and impedance-grounded environments



Manufacturer information

Allen-Bradley, a brand of Rockwell Automation, specializes in manufacturing industrial automation equipment. The product range includes programmable logic controllers (PLCs), motion control systems, safety devices, motor control equipment, automation software, and HMI panels. Allen-Bradley products are known for their reliability and integration with other systems.
