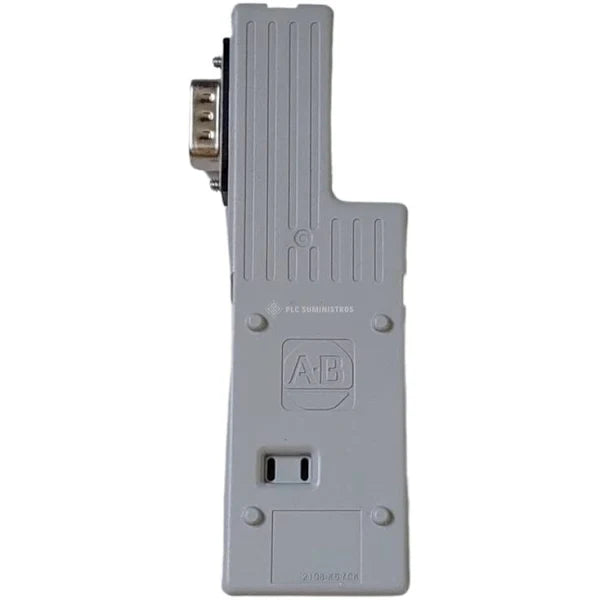

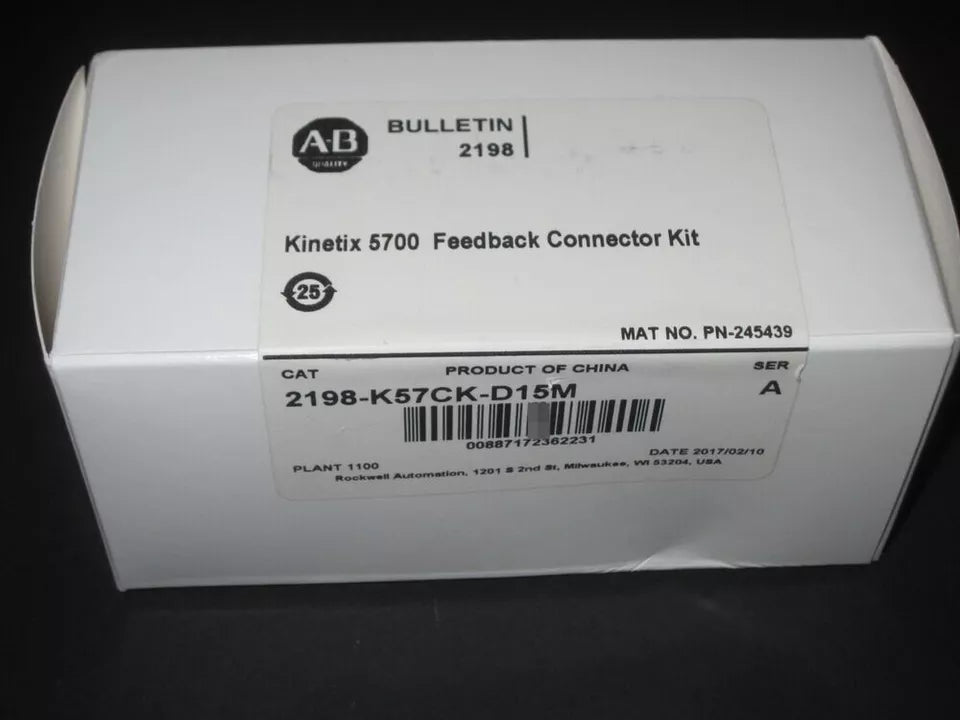

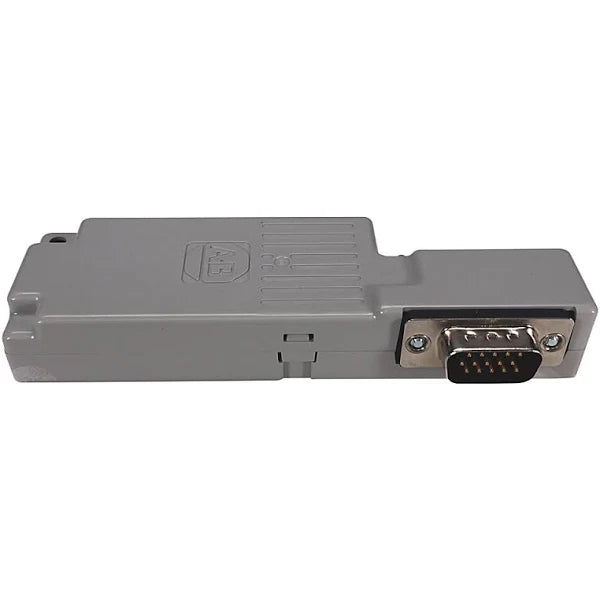

2198-K57CK-D15M | Allen-Bradley Motor Feedback Connector 15-Pin D-Sub Male
- Regular price
- $227.00
- Sale price
- $227.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 2198-K57CK-D15M
Description
The Allen-Bradley 2198-K57CK-D15M is a Kinetix 5700 DC bus capacitor module designed to support high-performance motion systems. It provides additional bus capacitance to stabilize the DC link and improve energy management in multi-axis servo drive applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Allen-Bradley |
| Manufacturer | Rockwell Automation |
| Part Number | 2198-K57CK-D15M |
| Category | Motion Control |
| Subcategory | Servo Drive Accessories |
| Product Type | Motor Feedback Connector Kit |
| Connector Type | D-Sub, 15-Pin, Male |
| Compatibility | Kinetix 5700 (2198 series) |
| Wiring Support | Flat cable / solid-core wiring |
| Standards | C-TICK |
| Series | A |
| Application | Encoder/feedback wiring termination |
| Mounting Style | Cable-mount |
| Electrical Use | Low-voltage signal transmission |
| Housing Material | Industrial-grade connector housing |
| Operating Use | Motion feedback and servo positioning |
Information About 2198-K57CK-D15M
The 2198-K57CK-D15M is part of the Allen-Bradley Kinetix 5700 motion control family, developed to provide scalable and flexible servo drive solutions. This capacitor module offers 15 millifarads of capacitance, designed to connect directly to the DC bus of Kinetix 5700 drives. By supplying extra bus energy storage, it helps absorb regenerative energy, reduce bus voltage fluctuations, and improve drive system stability during demanding load conditions. Compact and DIN rail–mounted, it integrates seamlessly into Kinetix 5700 systems without requiring extra panel space. Engineered for reliability, the 2198-K57CK-D15M enhances overall system performance while reducing the risk of drive overvoltage faults.
Key Features:
- Design: Capacitor module for Kinetix 5700 motion systems.
- Capacitance: Provides 15 mF of bus capacitance for energy storage.
- Functionality: Stabilizes the DC bus, absorbing regenerative energy.
- Compatibility: Designed for use with Allen-Bradley 2198 Kinetix 5700 servo drives.
- Performance: Improves system stability and reduces overvoltage faults.
- Installation: Compact DIN rail–mounted design for easy integration.
- Reliability: Built for continuous operation in demanding industrial environments.
- Application Range: Suitable for packaging, robotics, and heavy-duty motion control.
The 2198-K57CK-D15M delivers the energy buffering and stability required for high-performance Kinetix 5700 motion control systems.
