Product Description P/N: 2198-P031

Description / Specifications

Description

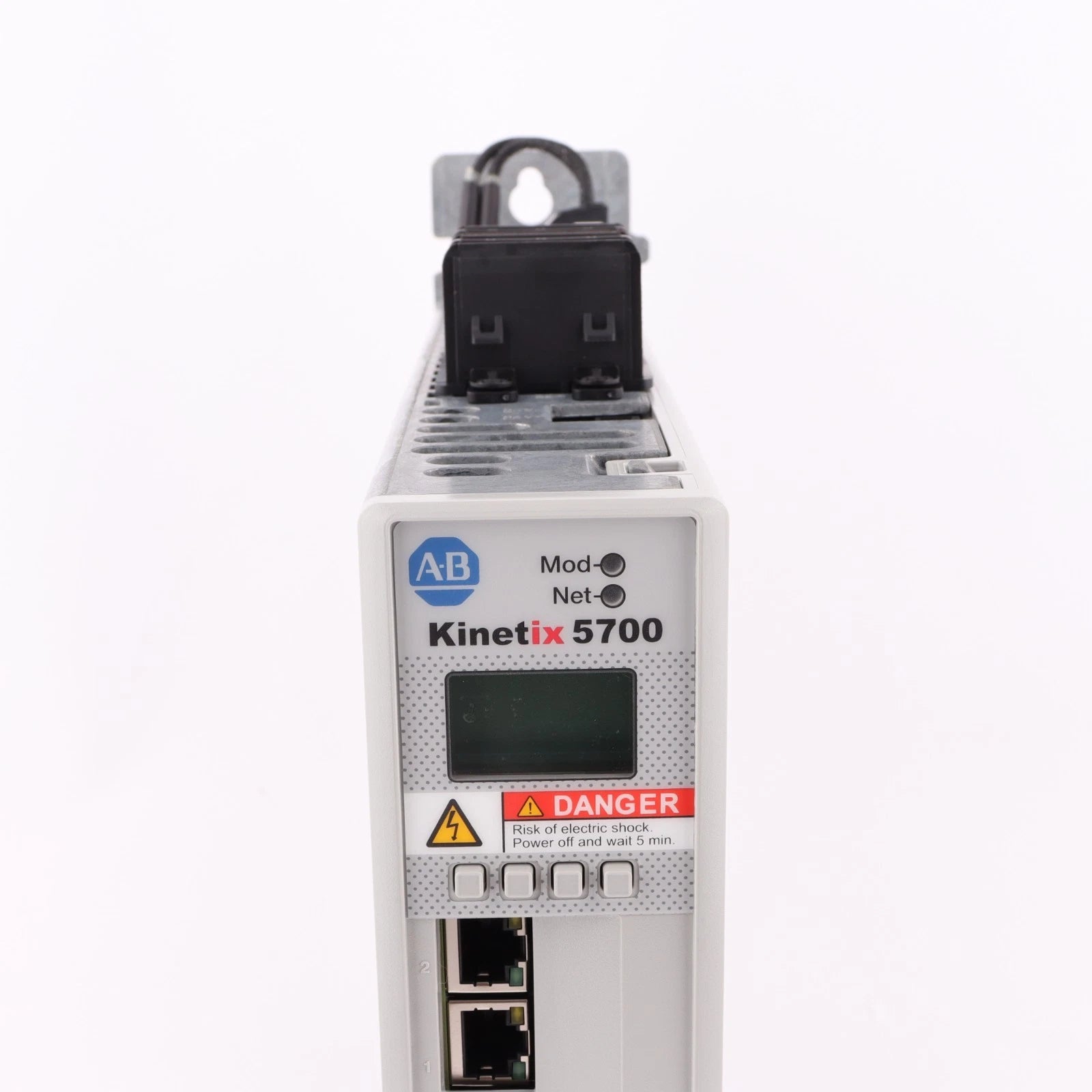

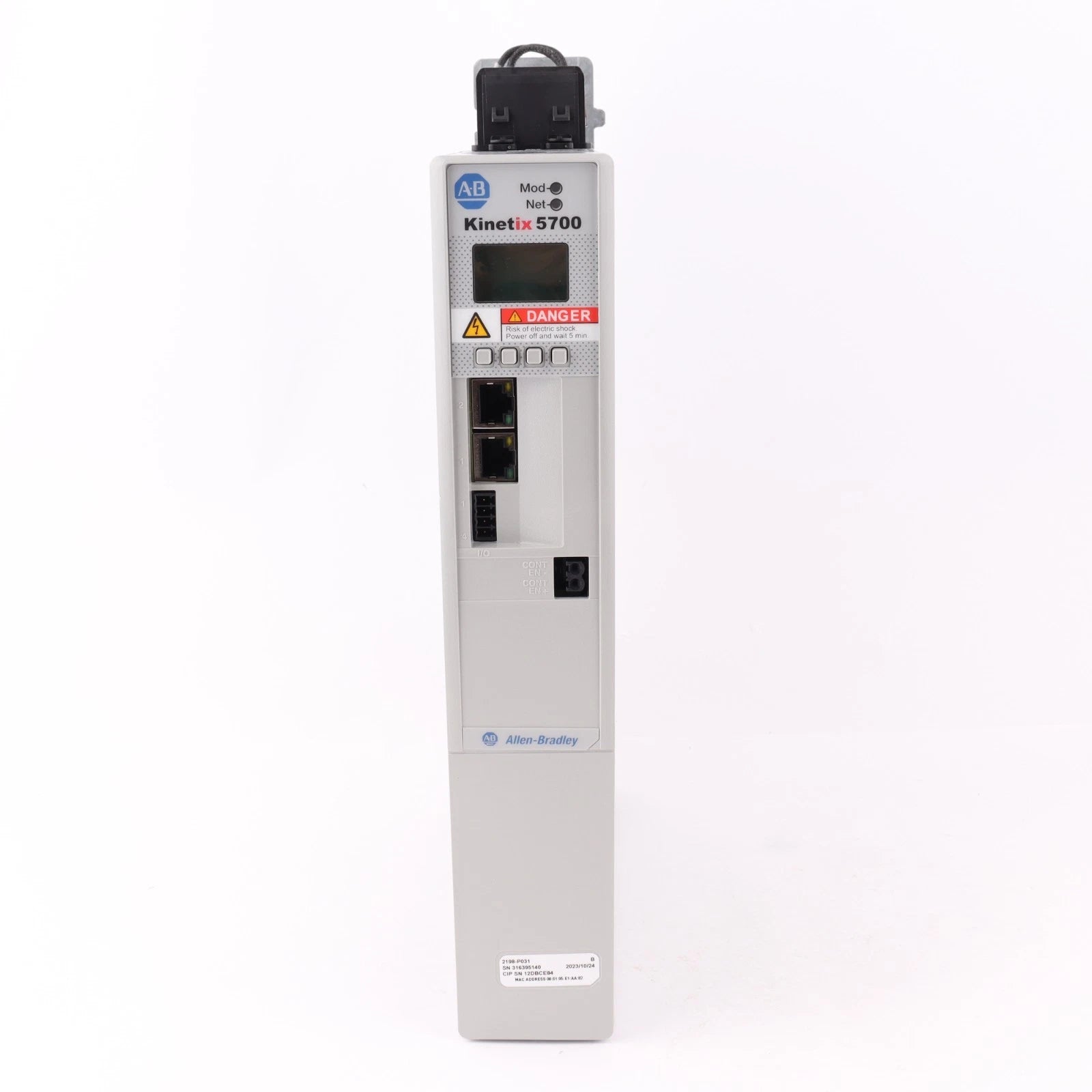

The 2198-P031 is a Kinetix 5700 DC-Bus Power Supply by Allen-Bradley and Rockwell Automation. It is a converter power supply with 200-Volt and 400-Volt class (3-Phase) AC input. This hardware provides output current in a range of 10.5…69.2 Amperes.



Technical Specifications



Brand Allen-Bradley
Series Kinetix 5700
Part Number 2198-P031
Manufacturer Rockwell Automation
Mounting accessory 2198-K5700-MOUNTKIT
Module Width 55 mm
Tightening Torque 4.0 N-m (35 lb-in)
Mounting hardware M5 (#10-32) steel bolts
Installation clearance 40 mm or 1.57 inches Top clearance; 100 mm or 3.94 inches bottom clearance
Zero stacking Supported
Mounting Panel mount
Continuous output current 10.5 A
Input Phase 3-phase
Input Voltage 324…528Vrms
Continuous Output Power 7 kW
Dimensions 9.29 x 2.17 x 14.09 in (252 x 55 x 358 mm)
24 Volt Inrush Current 4.0 Amperes
Torque Value 4.4-7.1 lb*in (0.5-0.8 N*m)
Internal Capacitance 585 Microfarads





Information About 2198-P031

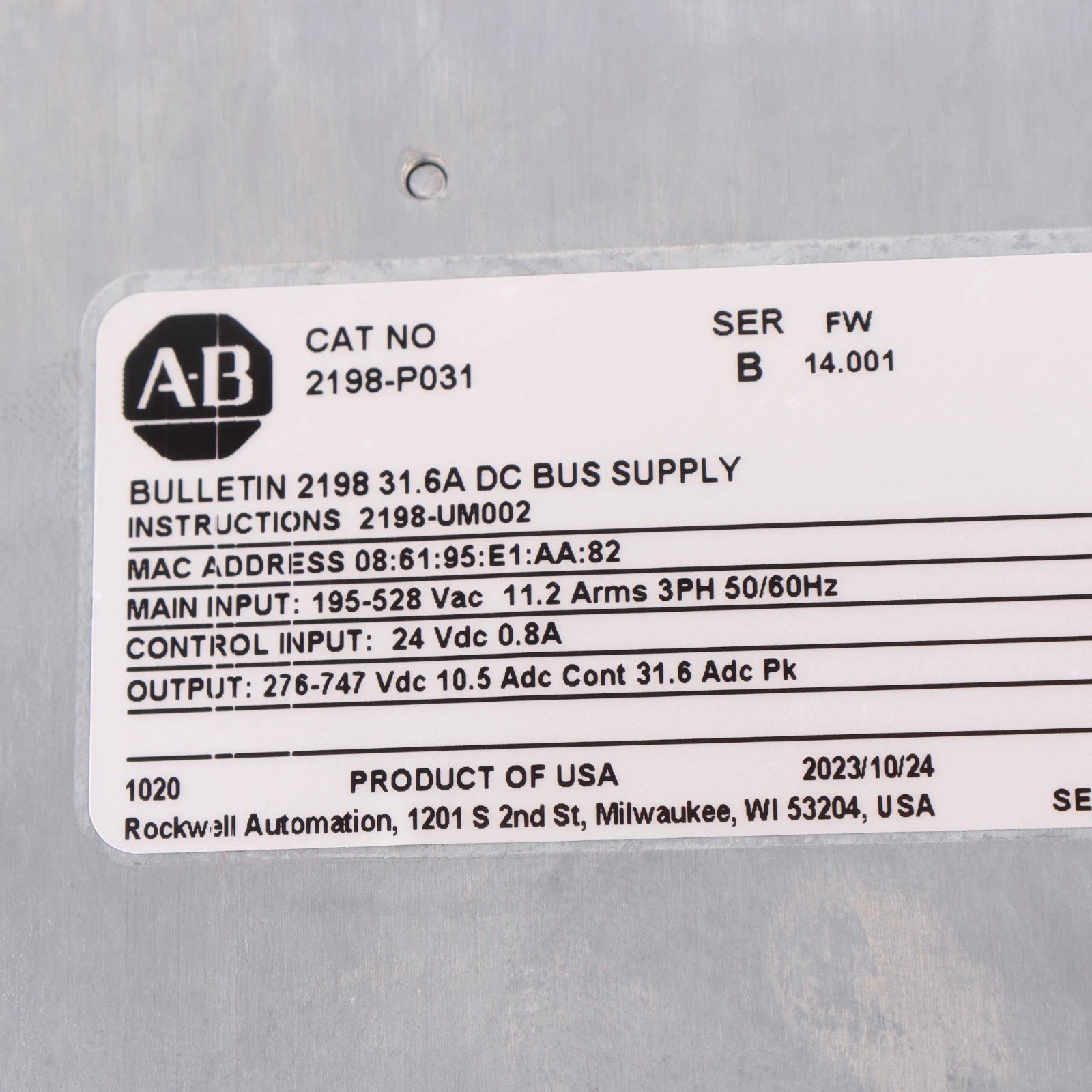

The Allen-Bradley 2198-P031 is a DC-bus power supply for the Kinetix 5700 servo drive. It has three-phase 324 - 528V (480V nominal) RMS AC input voltage with A 47-63 Hz frequency. It has a module width of 55mm. It has an 11.2 A main AC input current, a 33A Max inrush (0-peak) current, and a 33.4A peak AC input current. The continuous and peak output current-to-bus are 10.5A and 31.6A respectively. The continuous and peak output power-to-bus are 7 kW and 21 kW respectively. The 2198-P031 has an internal shunt resistance and shunt power of 37.5 and 75W respectively. It has 99% efficiency with 585μF internal capacitance and 129 J capacitive energy absorption. The 2198-P031 power supply has an innovative snap fit system that requires no tools and can be easily assembled and installed in the drive. It weighs 9.55 lbs. and has dimensions of 9.29 x 2.17 x 14.09 in. A single Kinetix 5700 drive can support up to 3 2198-P031 power supply modules. Additional power supply modules can be installed to increase the power output to the drive’s single-axis and dual-axis inverters. The 2198-P031 has a simple, powerful, and compact design for machines requiring large axis counts and higher power. The drive has an integrated motion and safety feature via the EtherNet/IP network that makes it ideal for use in large machines. With its high-performance motor control and reduced integration time, it finds application in various industries such as beverage manufacturing, diaper machines, bag machines, tire building machines, tray loaders, etc.

The Allen-Bradley 2198-P031 is a DC-Bus power supply that is used with the Kinetix 5700 Motion control system. This power supply has an input supply voltage of of 324-528 Volts rms, 3-phase and delivers a continuous output power of 7 Kilowatts and continuous output current of 10.5 Amperes.

The 2198-P031 is a 55 millimeter width module. This power supply is mainly used to provide additional output power to the DC bus. Additionally, the DC bus may also be extended to provide power to additional inverter clusters with the use of accessory modules.

The 2198-P031 components include DC-bus end caps, wiring plug connector sets for mains input (IPD) and 24 Volts DC control input power (CP), discrete inputs (IOD), shunt power (RC) and contactor enable (CED). It also has a wiring plug connector used for shunt power labeled as RC.

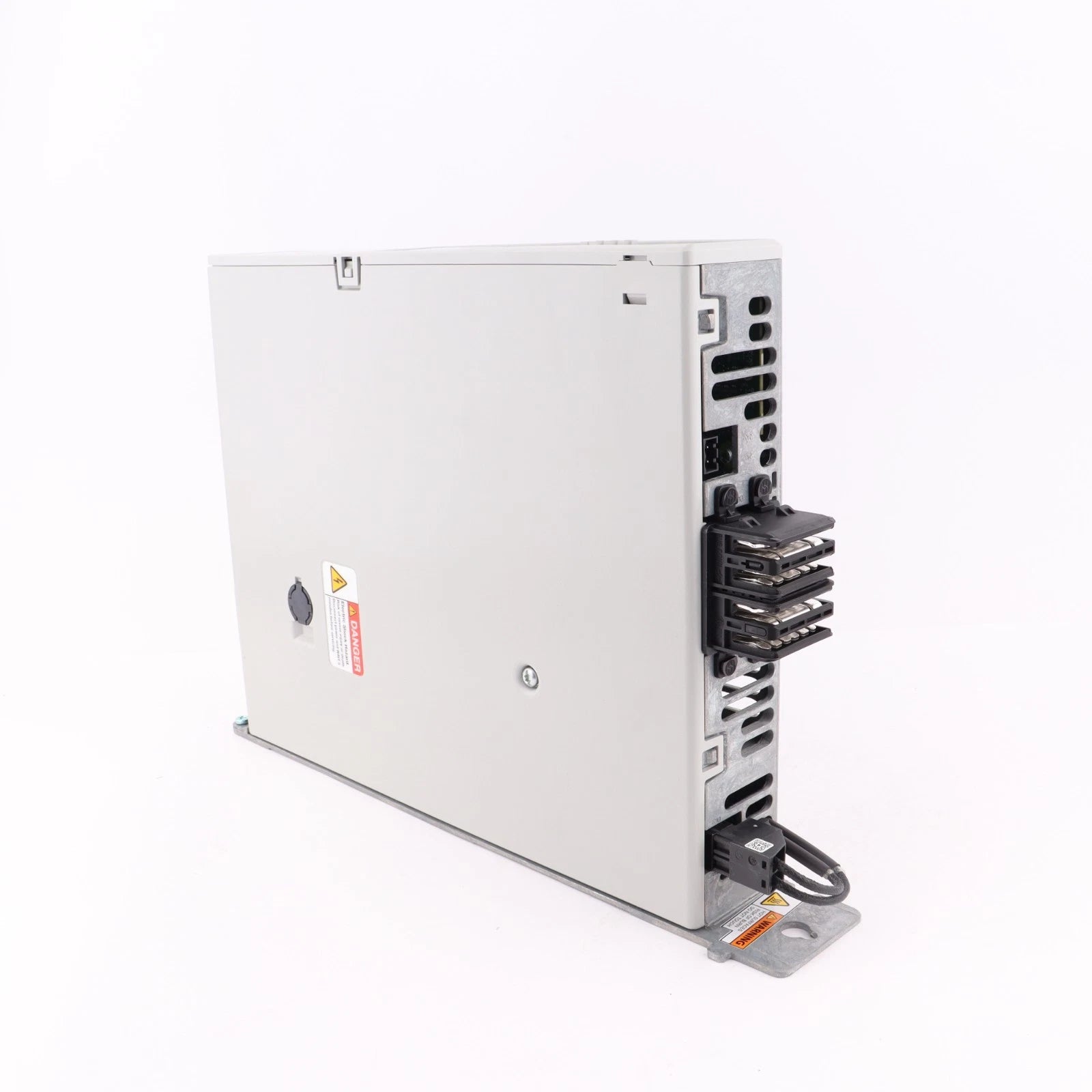

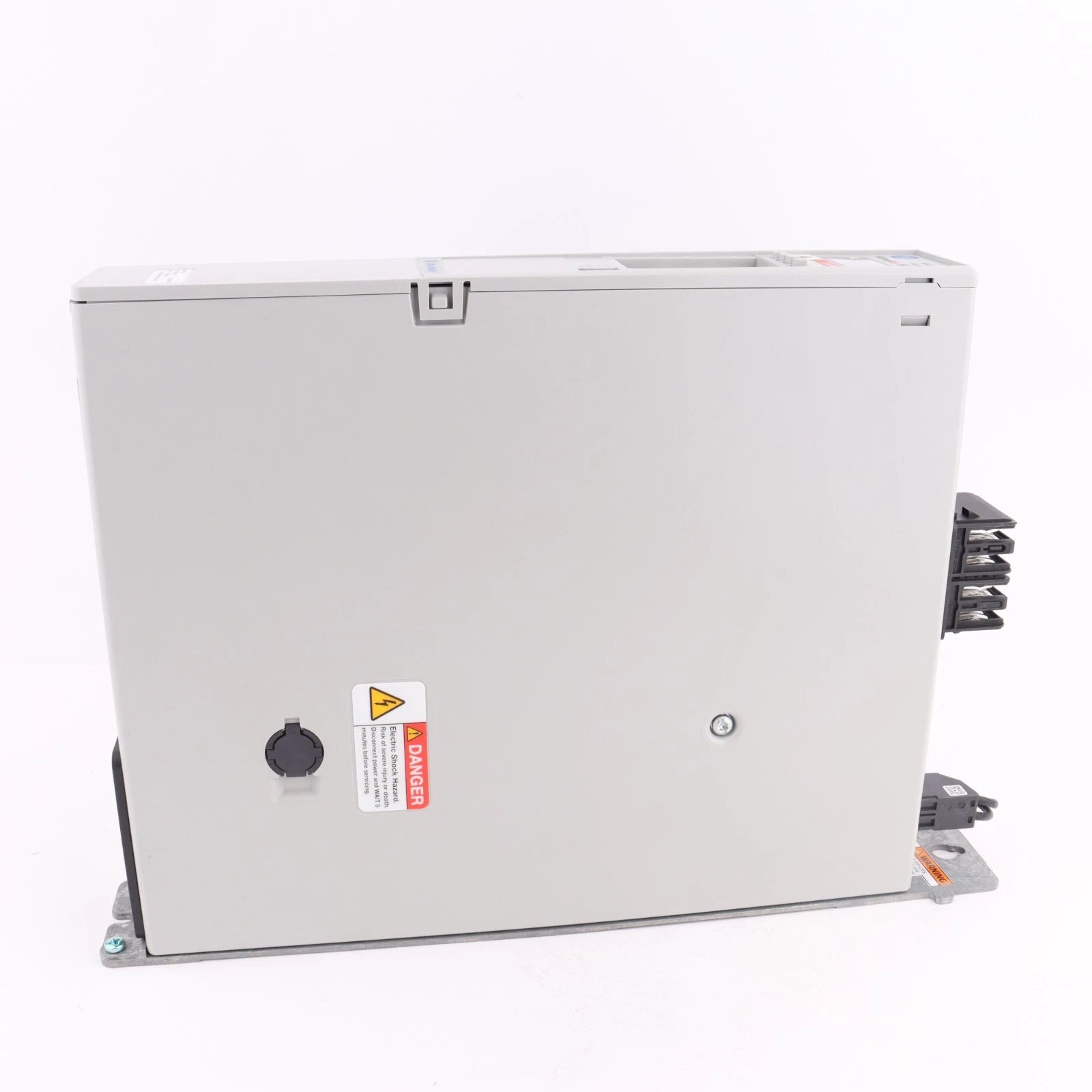

The 2198-P031 is provided with a ground screw mounted on the side. This ground screw terminal comes with an access door that needs to be flipped open to be able to terminate ground wire for connection to the grounding bus bar. For ungrounded, corner-grounded and impedance grounded power arrangements, the pre-installed ground screw must be removed.

The 2198-P031 supports direct panel mounting. Only upright position is supported by this power supply module. Mounting clearances must be met to ensure proper air flow and provide adequate working space. Top clearance requirement is 40 millimeters or 1.57 inches and 100 millimeters or 3.94 inches for bottom clearance. Side clearances are not required. Additionally, this power supply module supports zero stacking. To do so, install multiple instances of the 2198-P031 side by side, aligning the zero stacking tab. Users can build shared bus connection with this configuration.



Manufacturer information

Allen-Bradley, a brand of Rockwell Automation, specializes in manufacturing industrial automation equipment. The product range includes programmable logic controllers (PLCs), motion control systems, safety devices, motor control equipment, automation software, and HMI panels. Allen-Bradley products are known for their reliability and integration with other systems.
