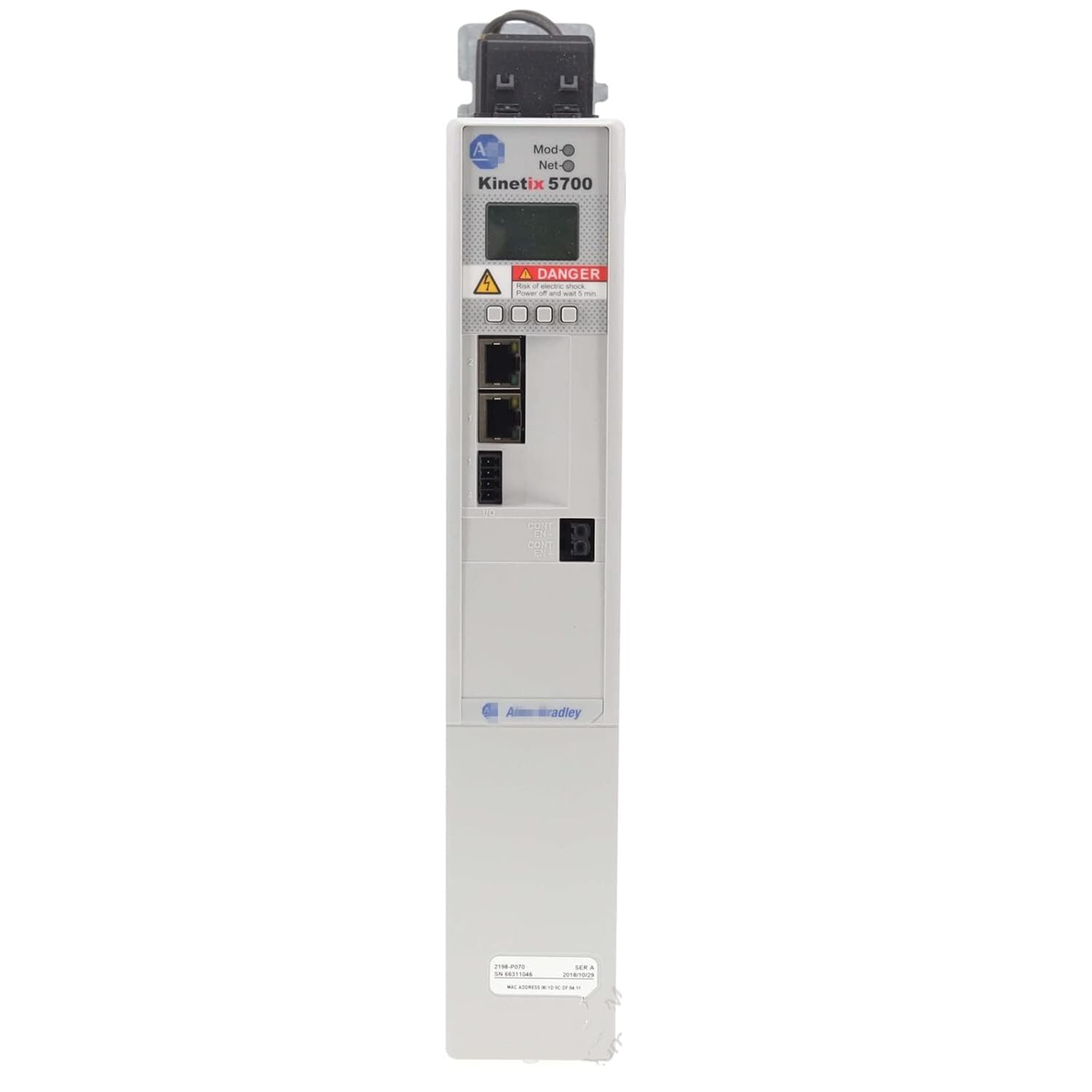

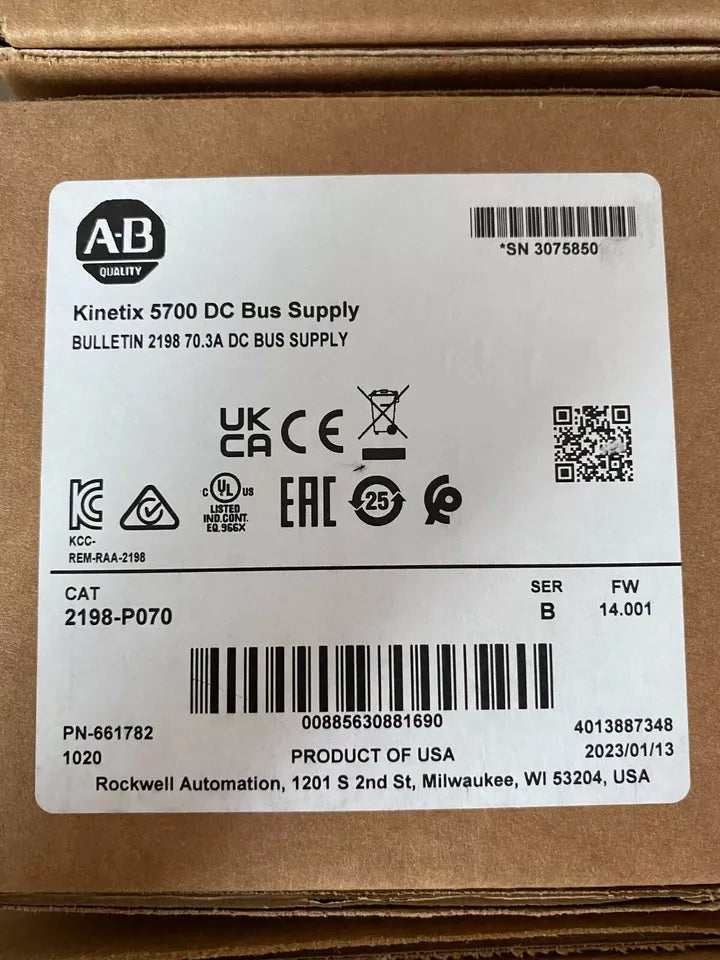

Part #: 2198-P070 Manufactured by: Allen-Bradley
$2,685.00
$2,685.00
2 in Stock
Condition: New – Open box
Shipping calculated at checkout.
Product Overview
Allen Bradley 2198-P070 Kinetix 5700 DC Bus Power Supply 325-528V AC, 25A, 3-Phase, Module width: 55mm
We accept:
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

Do you need help?

Call our Sales Manager
phone
+1 (828) 222-3490
Mon./Sat.: 7:00AM - 8:00PM
Write to us now
email
sales@iqelectro.com
Mon./Sat.: 7:00AM - 12:00PM
warranty
IQElectro 2-Year Warranty
Warranty for Product #: 2198-P070
IQElectro offers a free 2-year warranty on all products. You can trust that every purchase is a reliable investment in the future of your company. Warranty Terms
2-3 Day Free Shipping
Packed Ready to Ship
24/7 Expert Support
Return within 30-Days
IQElectro is Not an authorized distributor for Allen-Bradley
Original Manufacturer's Warranty Not Covered, This Product is SURPLUS.

Product Description P/N: 2198-P070

Description / Specifications

Description

The Allen-Bradley 2198-P070 is a Kinetix 5700 DC bus power supply designed to convert 480V AC three-phase input into regulated DC bus power for multi-axis servo drive systems. It provides high-capacity continuous output suitable for demanding motion applications requiring stable and efficient energy distribution. With compact dimensions and integrated protection features, it supports reliable operation in advanced automation environments.





Technical Specifications

Condition New/Never Used Surplus
Brand Allen-Bradley
Category Motion Control
Part Number 2198-P070
Subcategory Servo Drive Power Supplies
Series Kinetix 5700
Input Voltage 324–524 VAC (3-phase)
Continuous Output Power 17 kW
Internal Capacitance 780 µF
Inrush Current (25V) 4.0 A
Module Width 55 mm
Dimensions 252 × 55 × 358 mm (9.29 × 2.17 × 14.09 in)
Torque Value 4.4–7.1 lb-in (0.5–0.8 N·m)
Mounting Panel/cabinet mount
Application Multi-axis servo power distribution
Manufacturer Rockwell Automation





Information About 2198-P070

The 2198-P070 is part of the Allen-Bradley Kinetix 5700 family, developed to support large-scale, high-performance motion control systems. This power supply converts incoming 3-phase AC input to a regulated DC bus, delivering 70 kW of continuous power for connected servo drives. It integrates seamlessly with Kinetix 5700 servo drive modules, supplying the necessary energy for multi-axis control while maintaining efficiency. The unit features advanced diagnostics and LED indicators for monitoring system status, as well as protective functions to guard against overloads and faults. Its modular design reduces panel space requirements and simplifies installation in demanding automation environments.

Key Features:

  • Design: High-power DC bus power supply module for Kinetix 5700 systems.
  • Power Rating: Provides up to 70 kW continuous output.
  • Input Voltage: Operates on 3-phase AC input for industrial applications.
  • Integration: Supplies DC bus power to Kinetix 5700 multi-axis servo drives.
  • Diagnostics: Built-in LED indicators and fault reporting for system monitoring.
  • Protection: Includes safeguards against overload and fault conditions.
  • Installation: Modular design simplifies wiring and reduces panel space needs.
  • Application Range: Suitable for robotics, packaging, printing, and material handling.

The 2198-P070 delivers the high-capacity power and reliability required to support advanced multi-axis motion systems in modern industrial automation.

Frequently Asked Questions about 2198-P070
Question: What are the input and output power specifications?
Date Update:29/05/2025
Answer:

The module supports an AC input voltage range of 324–524V AC RMS across three phases. It is capable of delivering 17 kW continuous output power, making it suitable for heavy-duty, multi-axis servo drive systems. The inrush current is rated at 4.0 Amps at 25 Volts, which indicates the current drawn when the module is first energized.

Question: Does the 2198-P070 support CIP Security and Ethernet communication?
Date Update:29/05/2025
Answer:

Yes. The 2198-P070 includes support for CIP Security™, an extension of the EtherNet/IP™ protocol, which ensures encrypted and authenticated data exchange between automation devices. This helps prevent unauthorized access, tampering, or cyber threats in industrial environments.

Question: How is the module integrated into a shared bus configuration?
Date Update:29/05/2025
Answer:

The 2198-P070 is designed to be part of a shared bus configuration, where multiple drives are powered from a common DC bus. It integrates easily through shared-bus accessories, ensuring compact installation with electrical and mechanical compatibility. Proper engagement of the zero-stack tabs and cutouts ensures consistent alignment and electrical continuity between modules.

Question: What applications typically use the 2198-P070?
Date Update:29/05/2025
Answer:

The 2198-P070 is used in complex motion control systems requiring centralized DC power, such as:

  • High-speed packaging lines
  • Multi-axis robotic arms
  • Automated conveyor systems
  • High-performance CNC machinery

Its modular and scalable design makes it a preferred solution in industries like automotive, electronics, and food & beverage manufacturing.

Question: Is the 2198-P070 still in production?
Date Update:29/05/2025
Answer:

Yes, the 2198-P070 is currently listed with an "Active" lifecycle status, meaning it is still in production and available from Rockwell Automation. This makes it a viable choice for new projects or as a replacement in existing systems.
