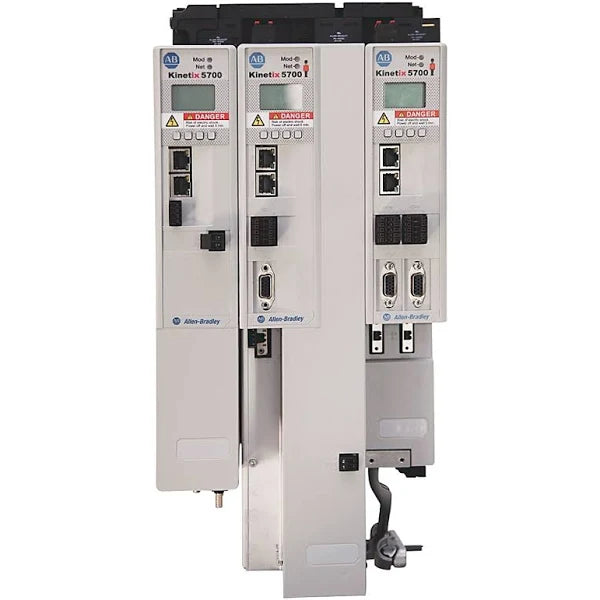

2198-S086-ERS3 | Allen-Bradley Kinetix 5700 Single-Axis Servo Drive, 43A 30kW
2198-S086-ERS3 | Allen-Bradley Kinetix 5700 Single-Axis Servo Drive, 43A 30kW
2198-S086-ERS3 | Allen-Bradley Kinetix 5700 Single-Axis Servo Drive, 43A 30kW
    2198-S086-ERS3 | Allen-Bradley Kinetix 5700 Single-Axis Servo Drive, 43A 30kW
2198-S086-ERS3 | Allen-Bradley Kinetix 5700 Single-Axis Servo Drive, 43A 30kW

2198-S086-ERS3 | Allen-Bradley Kinetix 5700 Single-Axis Servo Drive, 43A 30kW

Part #: 2198-S086-ERS3 Manufactured by: Allen-Bradley
$2,569.00
$2,569.00
5 in Stock
Condition: New – Open box
Shipping calculated at checkout.
Product Overview
Allen Bradley 2198-S086-ERS3 Kinetix 5700 Servo Drive Inverter Module, Single-Axis, Input: 458-747V DC, Continuous Output ...  Read more
We accept:
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

Do you need help?

Call our Sales Manager
phone
+1 (828) 222-3490
Mon./Sat.: 7:00AM - 8:00PM
Write to us now
email
sales@iqelectro.com
Mon./Sat.: 7:00AM - 12:00PM
warranty
IQElectro 2-Year Warranty
Warranty for Product #: 2198-S086-ERS3
IQElectro offers a free 2-year warranty on all products. You can trust that every purchase is a reliable investment in the future of your company. Warranty Terms
2-3 Day Free Shipping
Packed Ready to Ship
24/7 Expert Support
Return within 30-Days
IQElectro is Not an authorized distributor for Allen-Bradley
Original Manufacturer's Warranty Not Covered, This Product is SURPLUS.

Product Description P/N: 2198-S086-ERS3

Description / Specifications

Description

The Allen-Bradley 2198-S086-ERS3 is a Kinetix 5700 single-axis inverter module engineered for high-power, high-performance motion control applications. Delivering up to 29.7 kW continuous output power and 43 A continuous output current, it is designed for demanding servo systems requiring fast response, precision regulation, and seamless EtherNet/IP connectivity.





Technical Specifications

Condition New/Never Used Surplus
Brand Allen-Bradley
Category Servo Drives / Motion Control
Part Number 2198-S086-ERS3
Series Kinetix 5700
Module Type Single-Axis Inverter Module
Continuous Output Power 29.7 kW
Continuous Output Current 43 A (nom), 60.8 A (0-peak)
Peak Output Current 86 A (continuous), 121.6 A (0-peak)
Internal Capacitance 560 µF
Inrush Current 4 A at 33V
Torque Value 22–40 lb-in (2.5–4.5 N·m)
PWM Frequency 4 kHz
Loop Bandwidth 100 Hz / 400 Hz
Ethernet Interface Supported (EtherNet/IP)
Feedback Ports Motor Feedback (MF), Universal Feedback (UFB)
Input DC Current 45.7 A DC (required)
Power Dissipation 190–475 W depending on load %
Operating Temperature 0–50 °C
Storage Temperature -40–70 °C
Humidity 5–95% non-condensing
Altitude Rating Up to 1500 m without derating
Vibration 2G
Shock 15G
Module Width 85 mm
Dimensions (H×W×D) 9.92 × 3.35 × 17.0 in (252 × 85 × 433 mm)
Weight ~5.21 kg (11.5 lb)
Manufacturer Rockwell Automation





Information About 2198-S086-ERS3

The 2198-S086-ERS3 is part of the Kinetix 5700 servo drive family, offering high scalability for medium to large machine designs. It features 100 Hz and 400 Hz current/velocity loop bandwidths with a 4 kHz PWM rate, enabling smooth, accurate motion performance. The module supports both motor and auxiliary feedback through MF and UFB connectors and integrates with EtherNet/IP for synchronized, high-speed motion control. Built to operate in industrial environments, the drive provides reliable thermal performance, wide operating temperature tolerance, and high vibration/shock resistance. Its 560 µF internal capacitance and high inrush handling further enhance system stability.

Key Features:

  • High Power Output: 29.7 kW continuous power for demanding single-axis loads.
  • High Current Capacity: 43 A continuous and 60.8 A (0-peak) output current.
  • Advanced Motion Performance: 100/400 Hz loop bandwidth with 4 kHz PWM for precise control.
  • EtherNet/IP Connectivity: Integrated Ethernet interface for real-time networked motion control.
  • Robust Build: Designed for 0–50 °C operation, 2G vibration, and 15G shock environments.
  • Feedback Support: Motor feedback via 2-pin MF connector and 15-pin UFB connector.
  • High Internal Capacitance: 560 µF for stable DC bus performance.
  • Compact Form Factor: 85 mm wide, enabling high-density multi-axis installations.

The 2198-S086-ERS3 is a high-performance single-axis inverter module built for Kinetix 5700 motion systems. Its combination of power, bandwidth, and networked motion capability makes it suitable for large-scale automation requiring precise, coordinated servo control in packaging, material handling, robotics, and high-speed manufacturing applications.

Frequently Asked Questions about 2198-S086-ERS3
Question: What is the 2198-S086-ERS3 Kinetix 5700 Servo Drive?
Date Update:04/06/2025
Answer:

The Allen-Bradley 2198-S086-ERS3 is a single-axis inverter module from the Kinetix 5700 series, designed for high-performance motion control applications. It provides precise control over servo motors in systems requiring high power and axis counts, such as packaging, material handling, and robotics.

Question: What are the key specifications of the 2198-S086-ERS3?
Date Update:04/06/2025
Answer:

Key specifications of the 2198-S086-ERS3 include:

  • Continuous Output Current: 43 A (rms)
  • Peak Output Current: 86 A (rms)
  • Continuous Output Power: 29.7 kW
  • Input Voltage: 458–747 V DC
  • PWM Frequency: 4 kHz
  • Current Loop Bandwidth: 1000 Hz
  • Velocity Loop Bandwidth: 400 Hz
  • Internal Capacitance: 560 µF
  • Module Width: 85 mm
  • Dimensions: 252 x 85 x 433 mm
  • Weight: Approximately 5.21 kg
  • Operating Temperature: 0 to 50°C
  • Storage Temperature: -40 to 70°C
  • Relative Humidity: 5% to 95% (non-condensing)
  • Vibration: 2 G at 55–500 Hz
  • Shock: 15 G, 11 ms half-sine pulse

These specifications make the 2198-S086-ERS3 suitable for demanding applications requiring high power and precise motion control.

Question: What are the safety features of the 2198-S086-ERS3?
Date Update:04/06/2025
Answer:

The 2198-S086-ERS3 incorporates integrated safety features to enhance operational safety:

  • Safe Torque-Off (STO): Prevents unintended motor movement by removing power from the motor.
  • Safe Stop 1 and 2: Monitors and controls motor deceleration to ensure safe stopping.
  • Safe Brake Control: Manages external brake systems to ensure safe operation.
  • Safe Operating Stop (SOS): Maintains motor position within defined limits during operation.

These features comply with SIL3/PLe safety standards, reducing the risk of accidents and enhancing system reliability.

Question: How is the 2198-S086-ERS3 integrated into a motion control system?
Date Update:04/06/2025
Answer:

The 2198-S086-ERS3 integrates into a motion control system as follows:

  • DC Bus Supply: Connect to a compatible DC bus supply to provide the necessary input voltage.
  • EtherNet/IP Communication: Utilize EtherNet/IP for communication with a Logix-based controller, enabling real-time control and diagnostics.
  • Feedback Devices: Connect motor and auxiliary feedback devices to the appropriate connectors on the drive.
  • Safety Connections: Implement safety connections as per the system requirements, ensuring compliance with safety standards.
  • Configuration: Use Studio 5000 Logix Designer to configure the drive parameters, tuning, and safety settings.

Proper integration ensures optimal performance and compliance with safety standards.

Question: What certifications does the 2198-S086-ERS3 have?
Date Update:04/06/2025
Answer:

The 2198-S086-ERS3 complies with the following certifications:

  • CE: Conforms to European Union directives.
  • UL: Listed under UL 508 for industrial control equipment.
  • CSA: Certified by the Canadian Standards Association.
  • C-Tick: Meets Australian EMC requirements.
  • KC: Certified for use in South Korea.

These certifications ensure the module meets international safety and electromagnetic compatibility standards.

IQElectro is not an authorized distributor.
IQElectro LLC (IQElectro) is NOT an Authorized Distributor or in any way affiliated with Rockwell Automation, Siemens, or any other Manufacturers. IQElectro is NOT an Authorized Dealer of this product. The product may be of older version, date codes, or design than that available from authorized dealers. As IQElectro is not an authorized dealer of this product, the Original Manufacturer's Warranty and Support DO NOT apply. IQElectro sells SURPLUS only and DOES NOT SELL SOFTWARE or FIRMWARE licenses For more detailed information, please refer to the full version of our disclaimer policy Disclaimer Policy.
