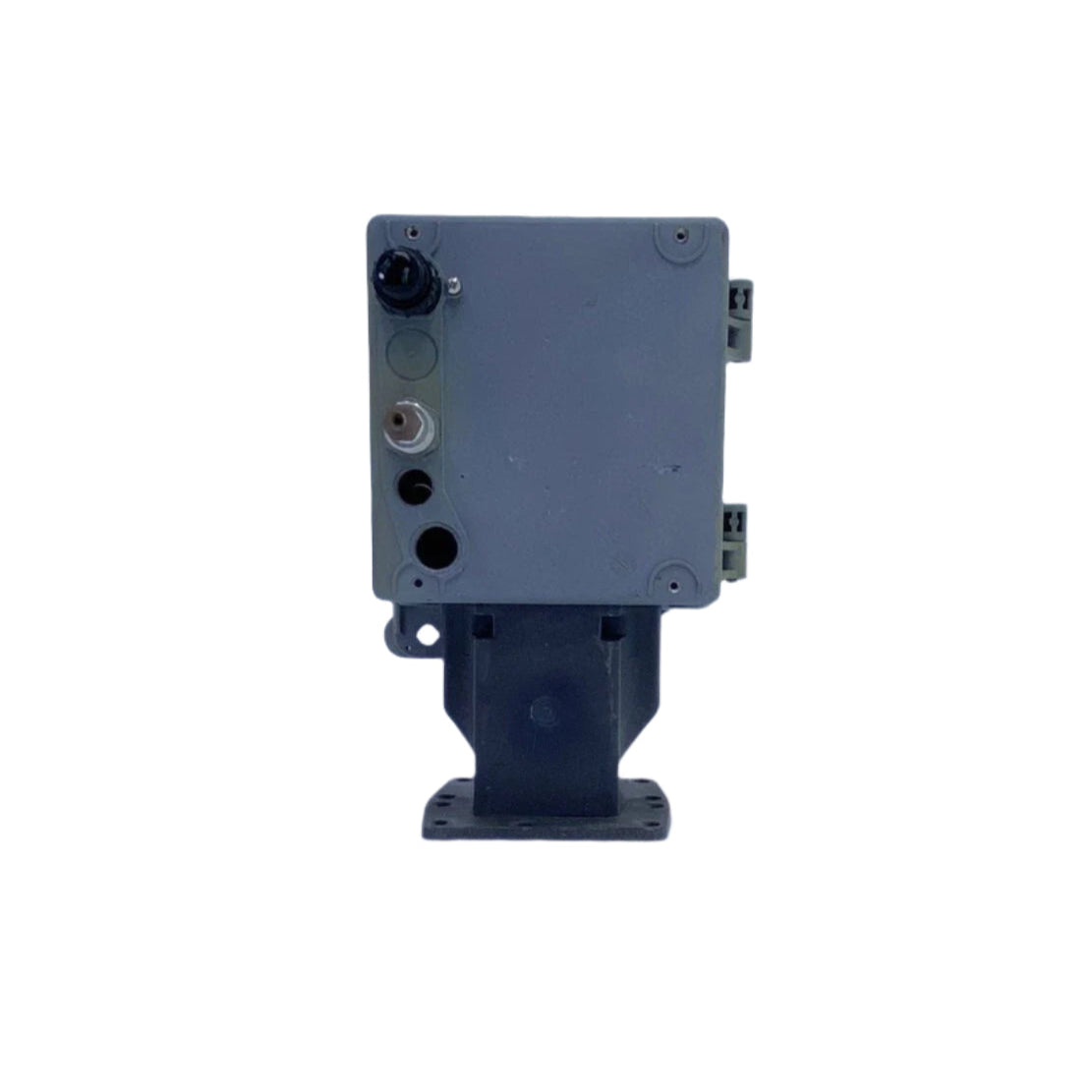

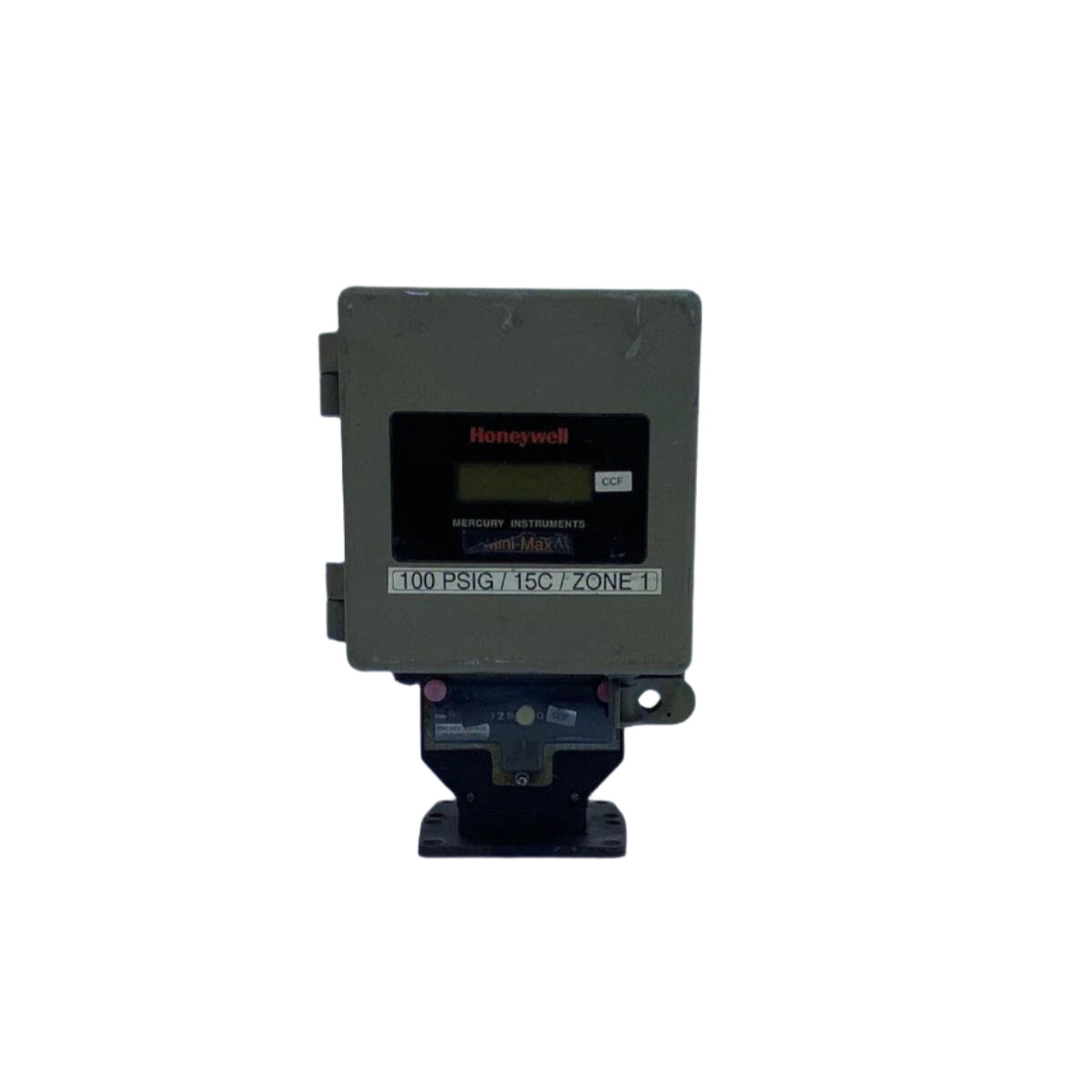

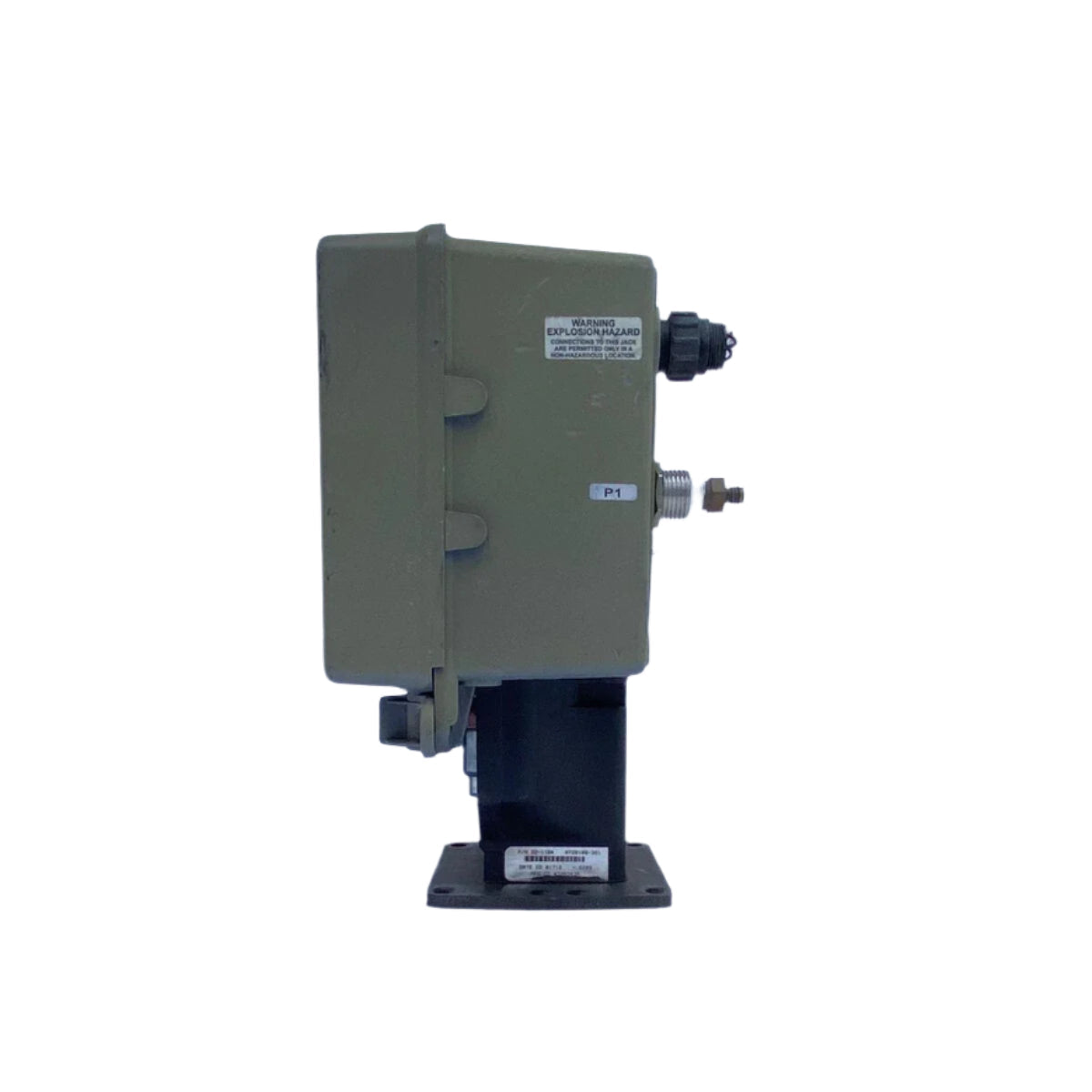

22-1164 | Honeywell Gas Volume Corrector
- Regular price
- $1,899.00
- Sale price
- $1,899.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 22-1164
Description
The Honeywell 22-1164 is a compact and robust gas volume corrector accessory designed to interface with the Mercury Mini-Max series. Built for high-accuracy gas metering environments, it supports bidirectional rotation and delivers consistent performance across a wide pressure range.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Honeywell |
| Category |
Controls & Indicators
|
| Part Number | 22-1164 |
| Subcategory | Meter Reader |
| Compatible Device | Mercury Mini-Max-ATX-PT |
| Material | Composite |
| Volume per Revolution | 10 CU FT |
| Rotation Direction |
CW / CCW |
| Pressure Range | 0–100 PSI |
| Certification / Test Ref. | CH#63 (Tested) |
| Operating Zone | Zone 3 |
| Temperature Reference | 15°C |
| Mount Type | Universal Mounting Bracket (UMB) |
| Weight | 6.55 lbs |
Information About 22-1164
The 22-1164 is a Universal Mounting Bracket Assembly (UMB) crafted from composite material, designed specifically for integration with the Mercury Mini-Max-ATX-PT gas volume corrector. This model enables CW and CCW rotation, making it suitable for diverse installation scenarios. Certified for Zone 3 environments and tested under CH#63 protocol, it ensures durability and operational precision at a reference temperature of 15°C, within a pressure range of 0–100 PSI.
Key Features:
- Composite Construction: Engineered from durable composite material, ensuring lightweight performance and field resilience.
- 10 CU FT Volume Capacity: Provides a consistent 10 cubic feet per revolution, maintaining volumetric accuracy.
- CW/CCW Rotation Support: Allows operation in both clockwise and counterclockwise orientations for flexible installation.
- Mini-Max-ATX-PT Compatibility: Tailored for seamless integration with Mercury Mini-Max gas volume correctors.
- 0–100 PSI Pressure Range: Designed to operate under a wide span of pressure conditions without compromising performance.
- Zone 3 Certified: Safe for use in hazardous environments classified as Zone 3.
- CH#63 Tested: Fully bench-tested under Honeywell’s CH#63 qualification for verified reliability.
- Universal Mounting Bracket (UMB): Supports various installation scenarios using the same bracket design.
- Temperature Reference at 15°C: Calibrated to standard industry temperature baseline for consistent readings.
- Compact Format: Fits into constrained installations while providing robust correction features.
The 22-1164 delivers mechanical versatility and tested accuracy for gas measurement systems using the Mini-Max platform.
