221-613 | Wago Pluggable Terminal Block
- Regular price
- $24.00
- Sale price
- $24.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 221-613
Description
The Hubbell RF406BK is a black, non-metallic flange and hinged door cover assembly designed for use with RF400 floor boxes in concrete floor applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Wago |
| Category |
Wire and Cable
|
| Part Number | 221-613 |
| Subcategory | Wire & Terminal Markers |
| Weight | 0.05 kgs |
| Wire Size |
20AWG to 10AWG
|
| Wire Connection Method | Push In Lock |
| Rated Voltage | 450V |
| No. of Positions | 3 |
| Conductor Area CSA | 6mm² |
| Rated Current | 41A |
| Product Range | 221 Series |
| Ambient Temperature | 85°C |
Information About 221-613

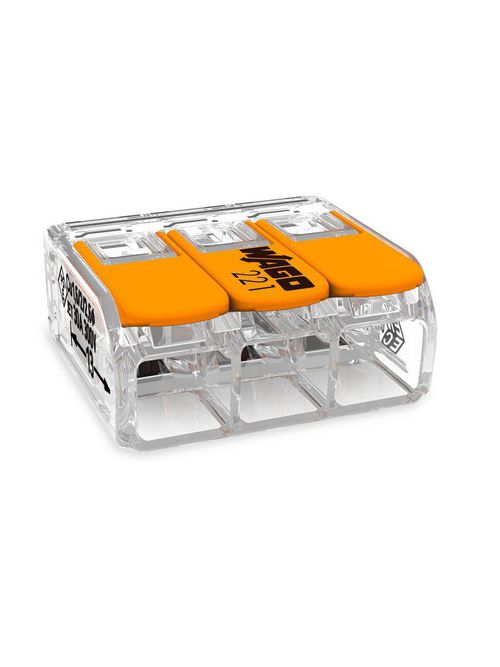

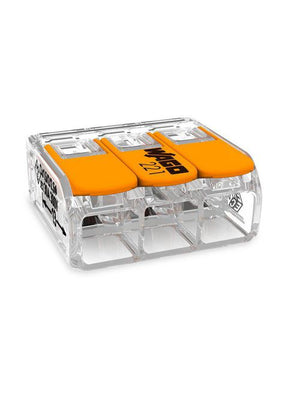

The WAGO 221-613 is a compact, 3-conductor splicing connector equipped with convenient operating levers. It is designed to accommodate all conductor types ranging from 0.5 to 6 mm² (20–10 AWG), facilitating quick and reliable connections. The connector's transparent housing allows for easy verification of proper conductor insertion.
Key Features:
-
Connection Capacity: 0.5–6 mm² (20–10 AWG) for solid, stranded, and fine-stranded conductors.
-
Rated Voltage: 450 V.
-
Rated Current: 41 A.
-
Dimensions: 22.9 mm (width) x 10.1 mm (height) x 21.1 mm (depth).
-
Housing Material: Transparent polycarbonate with a flammability rating of UL94 V2.
-
Operating Temperature: Up to 85°C (T85), with a continuous operating temperature of 105°C.
Benefits:
-
Ease of Use: The lever mechanism simplifies the process of connecting and disconnecting conductors, reducing installation time.
-
Versatility: Suitable for various applications, including lighting systems, electrical appliances, and junction boxes, due to its compatibility with multiple conductor types and sizes.
-
Safety Compliance: Meets international standards, ensuring safe and reliable electrical connections.
The WAGO 221-613 connector is an ideal choice for professionals seeking a reliable, efficient, and user-friendly solution for electrical installations.
