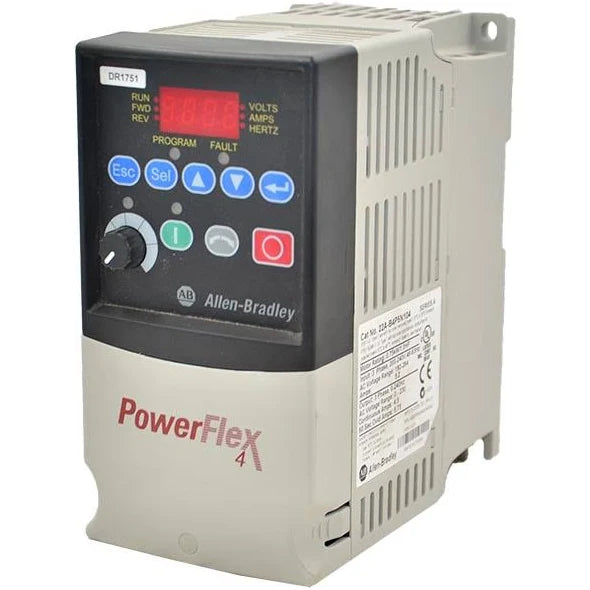

22A-B4P5N104 | Allen-Bradley PowerFlex 4 AC Drive 240VAC 3PH 4.5A 0.75kW 1HP IP20
- Regular price
- $592.00
- Sale price
- $592.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 22A-B4P5N104
Description
The Allen-Bradley 22A-B4P5N104 is a PowerFlex 4 Variable Frequency Drive (VFD). This VFD is powered with an input voltage range of 180-264 VAC, 3-phase with applicable motor output of 4.5 A and Power of 0.75kW (1.0 HP).
Technical Specifications
| Brand | Allen-Bradley |
| Manufacturer | Rockwell Automation |
| Part Number | 22A-B4P5N104 |
| Built-in Communication port | RS485 |
| Rated Power | 0.75kW (1.0 HP) |
| Rated Current output | 4.5 A |
| Input Voltage | 240VAC |
| Installation | Panel Mount / DIN Rail |
| Enclosure Rating | IP20 / NEMA UL Type Open |
| Keypad | LED Keypad |
| Filter | Without CE Compliant Filter |
| I/O Terminal | Discrete Inputs: 3 fixed for START/STOP/REV; 2 Fully Programmble Discrete Outputs: 4 fully programmable; Analog Input: 2 1 0…10V or 4…20 mA) Discrete Output: 1 - N.O/N.C. dry contact; |
| Product Line | PowerFlex 4 |
| Amperage | 4.5 Amps |
| Enclosure Type | IP20/UL (Open) |
| Phase | 3-Phase |
| Wattage | 0.75 Kilowatt |
| Input Type | Keypad |
| Display | Light-Emitting Diode (LED) |
| Horsepower | 1 Horsepower |
| Input Power | 200 to 240 Volts AC |
Information About 22A-B4P5N104
The Allen-Bradley PowerFlex 4 Drive with catalog number 22A-B4P5N104 is a 3-Phase, 240VAC rated adjustable Frequency AC Drive. This drive may sometimes be referred to as a Variable Frequency Drive (VFD) or Variable Speed Drives (VSD). All these terms refer to an electronic equipment that is used to drive an AC motor and modulate speed by varying the frequency input to the motor.
The 22A-B4P5N104 is an adjustable Frequency ZC drive that features Sensorless Vector Control Method. This control method is ideally used not only for modulating speed but with Torque control as well. The operate the 22A-B4P5N104, a supply input voltage rating of 200-240VAC, 3-Phase must be supplied to the input voltage terminal of the drive. It has an output voltage range of 0-230VAC, 3-Phase, continuous output current of 4.5 Amperes and applicable motor rating of 0.75 kW or 1.0 HP.
This drive may be used in small motors, typically installed in industrial fan an pump applications, conveying or material handling systems and other applications.
The 22A-B4P5N104 is provided with a fixed keypad, with options of adding other versions of Human Interface Module (HIM). It is also installed with an internal IGBT brake however, the drive has no internal filter. It also has an RS485 communication port that supports daisy-chain topology, allowing the drive to be configured over the network.
It may also be fully integrated with Logix controller platforms with the use of the Studio 5000 Design environment.
This device is an electronic drive that gives the users an interface for control of speed of motors that drive machines and appliances. Users are able to interact locally with the drive via the provided fixed keypad. It has an IP20 enclosure, and a NEMA/UL open-type enclosure with an ambient temperature range of -10 to 50 degrees Celsius and a 0 to 95% non-condensing relative humidity range. The 22A-B4P5N104 has an input voltage range of 200 - 240 Volts AC and an input current rating of 5.2 Amps with an apparent power rating of 2.2KVA. It also has a motor rating of 0.75 kW (1 Horsepower) and it dissipates 60 Watts of power along its circuit wires.
To implement branch circuit protection, an Allen-Bradley 140M-C2E-C10 motor protector, a 100-C09 contractor, and a 10 UL Class J fuse may be used. It has protection against overcurrent at a 200% hardware limit for up to 60 seconds and a 300% instantaneous fault for 3 seconds. It also protects against a 150% motor overload for 60 seconds and against over and under voltage. The 22A-B4P5N104 has a digital control input that can be set at either the sink or source mode through a DIP switch and an analog control input. It also has a programmable control output. It has a carrier frequency of 2 to 16 kHz and a 2% regulation speed based on a 40 to 1-speed range. It has a weight of 3.1 pounds and dimensions of 5.98 x 3.15 x 5.35 inches.
Manufacturer information
Allen-Bradley, a brand of Rockwell Automation, specializes in manufacturing industrial automation equipment. The product range includes programmable logic controllers (PLCs), motion control systems, safety devices, motor control equipment, automation software, and HMI panels. Allen-Bradley products are known for their reliability and integration with other systems.
