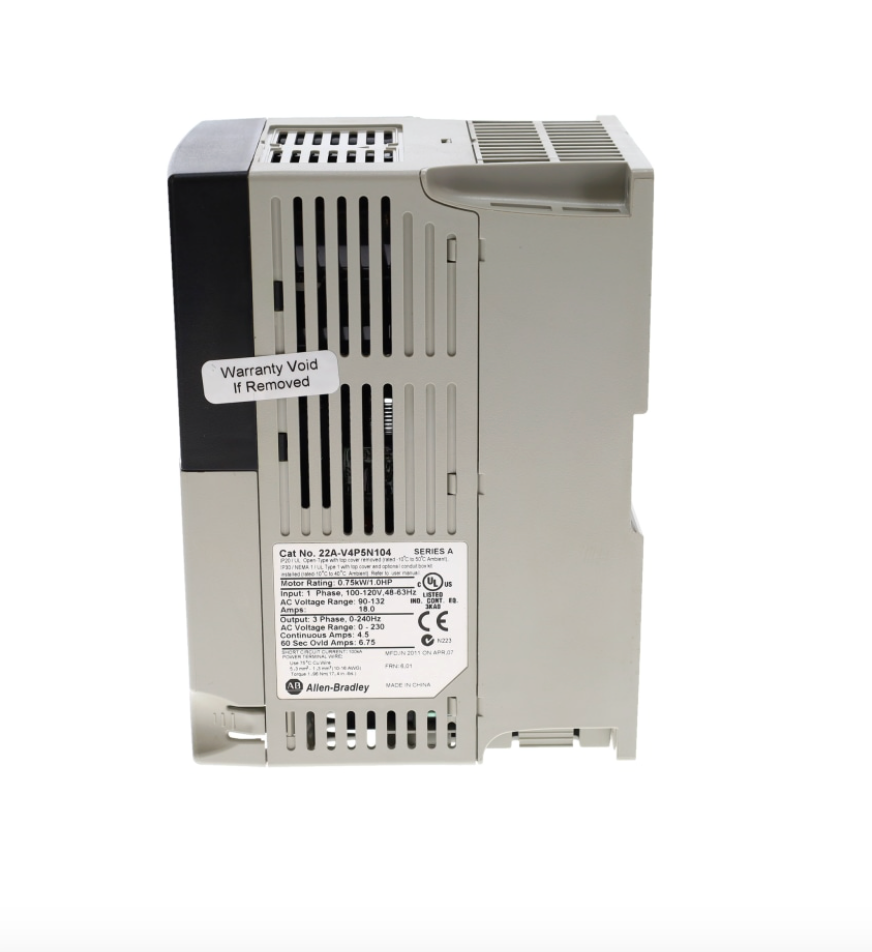

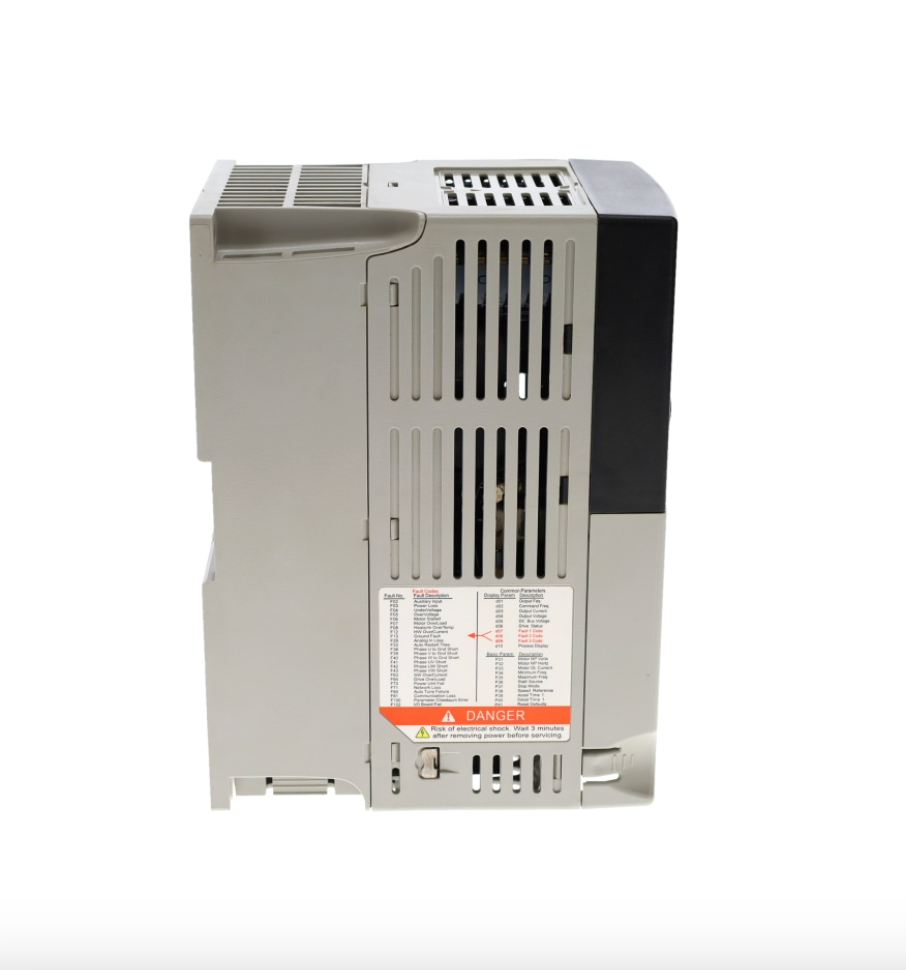

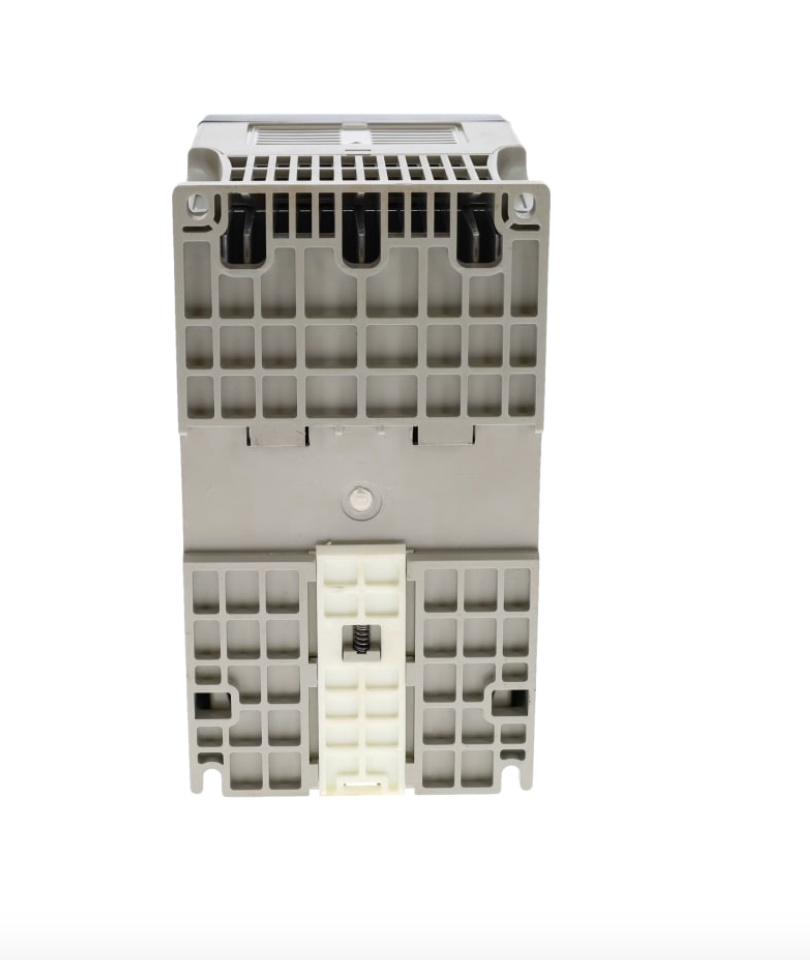

22A-V4P5N104 | Allen-Bradley PowerFlex 4 AC Drive 120VAC/1-Phase/4.5A/1HP/IP20

Description

The Allen-Bradley 22A-V4P5N104 is a PowerFlex 4 Variable Frequency Drive (VFD). This VFD is powered with an input voltage range of 90-132 VAC, 1-phase with applicable motor output of 2.3 A and Power of 0.75 kW (1.0 HP).

Technical Specifications

Information About 22A-V4P5N104

The Allen-Bradley 22A-V4P5N104 PowerFlex4 standard drive is an adjustable frequency drive with single-phase 120 Volts AC voltage, 4.5 Amps of current, and a 0.75 kW (1 Horsepower) power output which offer users control and functionality whether locally or remotely.

The 22A-V4P5N104 is a Frame B drive with a NEMA Type 1 enclosure and integral RS-485 communication ports for communicating with other devices. The 22A-V4P5N104 also has various HMI accessories (22-HIM-C2S, 22-HIM-A3, 22-WIM-N1, among others) which can be installed for enhanced functionality. Also, the 22A-V4P5N104 can incorporate the Allen-Bradley 1204-TFA1 (for use with 3.7 kW 5 Horsepower rated drives) and the Allen-Bradley 1204-TFB2 (for use with 1.5 kW 2 Horsepower rated drives) terminators. The 22A-V4P5N104 has 30 fuses and a motor circuit protector. The 22A-V4P5N104 Powerflex4 has a 100-C23 contactor and it has a power dissipation of 150 Watts. The 22A-V4P5N104 has a programmable output frequency from 0 to 400 Hertz, and a 97.5% efficiency (Typical).

The Allen-Bradley 22A-V4P5N104 drive is equipped with a 5 mA digital input control with a voltage of 18 to 24 Volts or 0 to 6 Volts (ON/OFF) at source mode. It is also adapted with a 0 to 6 Volts or 18 to 24 Volts (OFF/ON) sink mode. The 22A-V4P5N104 has an analog input of 4 to 20 mA at an input impedance of 250 Ohms, and a 100-kiloohm input impedance at 0 to 10 Volts. It measures 3.94 x 7.09 x 5.35 inches and it weighs 2.2 kilograms (4.9 pounds). The 22A-V4P5N104 PowerFlex4 drive has an input voltage of 120 Volts and an operating frequency of 50 to 60 Hertz. This drive is a cost-effective alternative for controlling the speed of applications such as fans, pumps, conveyors, machine tools, and material handling systems. The 22A-V4P5N104 PowerFlex4 drives are designed for flexibility and ease of use in a compact and space-saving module. The 22A-V4P5N104 features sensorless vector control. This allows the 22A-V4P5N104 drive to maintain phenomenal speed regulation, even with high levels of torque along the speed range of the drive.

The Allen-Bradley 22A-V4P5N104 is a Variable Frequency Drive (VFD) that is part of Allen-Bradley’s PowerFlex 4 Adjustable Frequency drive product category. This product is primarily used for controlling speed of AC motor and promote energy savings.

The 22A-V4P5N104 is a 100-120VAC, 1-Phase drive that deliver a continuous output current of 4.5 Amperes with applicable motor rating of 0.75 or 1.0 Horsepower. This drive is an intelligent electronic device capable of being operated and monitored locally via the fixed keypad or remotely by way of communicating through the integrated RS485 communication port or additional communication interfaces that supports ProfiBus, Ethernet I/P, BacNet, LonWorks, ControlNet, DeviceNet and RS232 communication modules.

The 22A-V4P5N104 features a Volts / Hertz or Scalar control method with Sensorless Vector control performance. It also has a control ride through feature with minimum ride through time of 0.5 seconds wherein typical value is 2 seconds while the faultless Power Ride through is 100 miliseconds. This drive has an internal IGBT brake, fixed LCD however, does not have an integrated filter.
