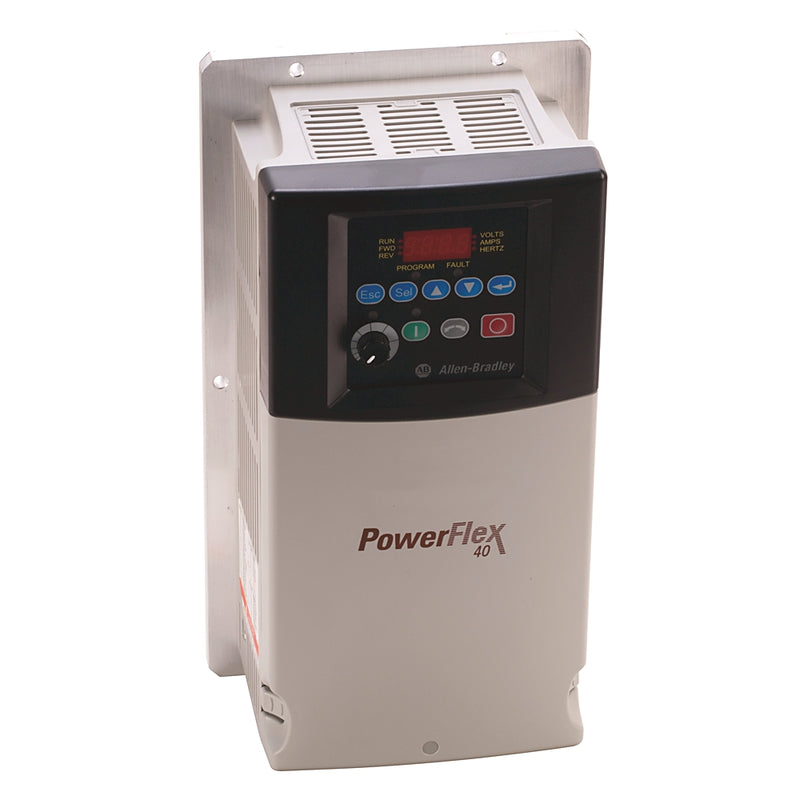

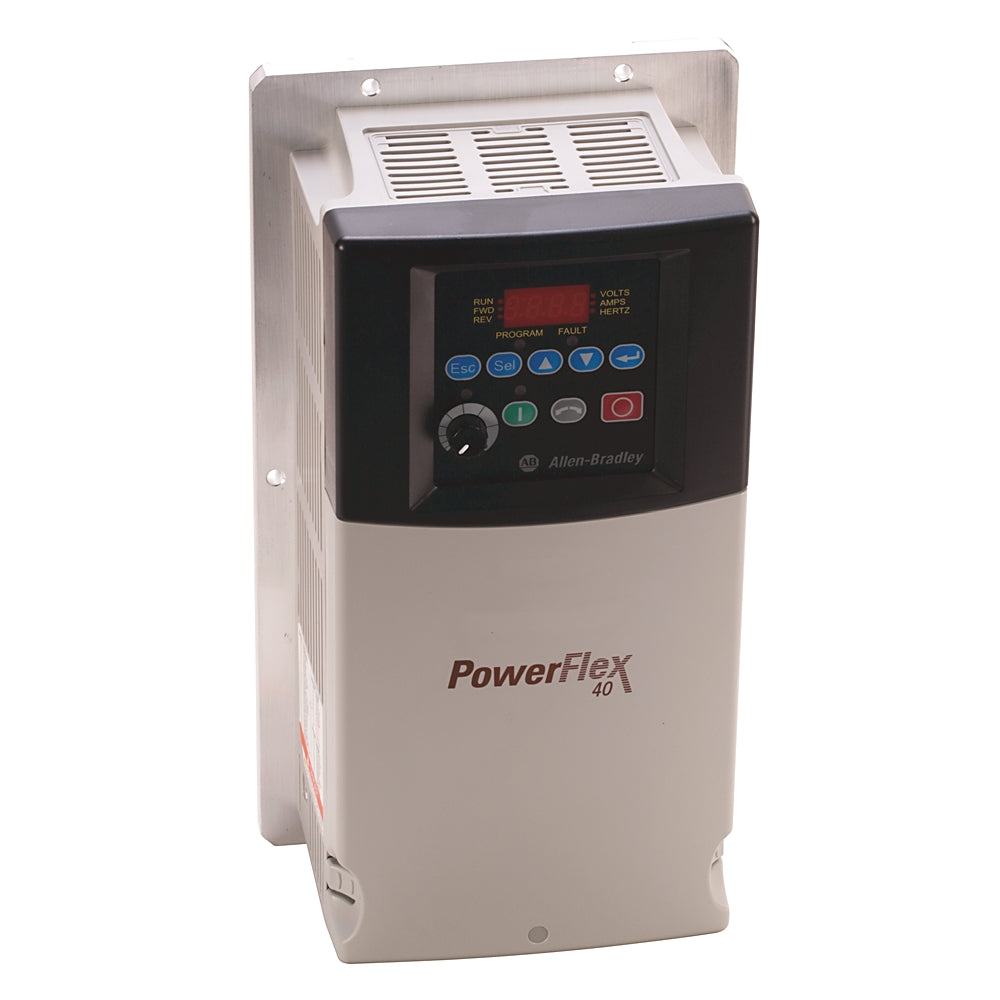

22B-A012N104 | Allen-Bradley PowerFlex 40 AC Drive 240VAC

Description

The Allen-Bradley 22B-A012N104 is an adjustable frequency drive designed for reliable motor control in compact industrial systems. With a single-phase 240V AC input and 12 A output, it delivers up to 3 HP (2.2 kW) of power.

Technical Specifications

Information About 22B-A012N104

The 22B-A012N104 is part of the Allen-Bradley PowerFlex 40 series of variable frequency drives (VFDs). It supports 240V AC single-phase input and outputs up to 12 A for driving motors rated up to 3 HP. The unit includes a built-in keypad for manual control and RS-485 communication capabilities for integration into basic networked systems. Housed in a panel-mount IP20 enclosure (NEMA/UL Type Open), it is suited for indoor use in protected control cabinets. This model does not include a CE-compliant EMC filter, requiring external filtering if needed for regulated environments.

Key Features:

• 3 HP / 2.2 kW Power Output: Delivers reliable performance for light- to medium-duty motor applications.

• 240V Single-Phase Input: Operates on standard industrial power sources for flexible installation.

• 12 A Output Current: Supports higher current loads with consistent drive functionality.

• Panel Mount IP20 Enclosure: Compact open-style housing for control cabinet integration in indoor settings.

• Integrated Keypad Interface: Provides on-drive manual setup and monitoring functionality.

• RS-485 Communication: Enables basic connectivity for serial communication with external systems.

• No Internal EMC Filter: CE-compliant filtering must be added externally where required.

The 22B-A012N104 offers efficient motor control and streamlined configuration in a compact form factor for industrial applications.
