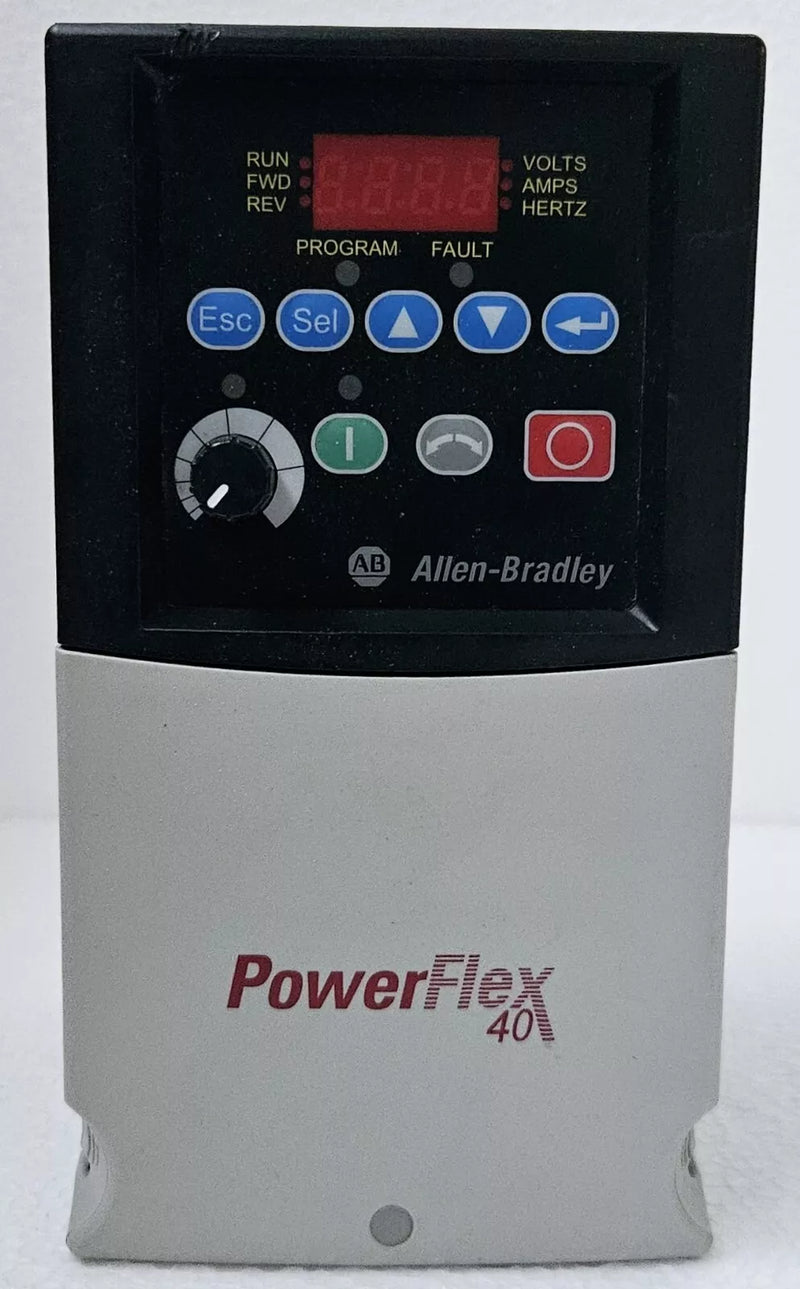

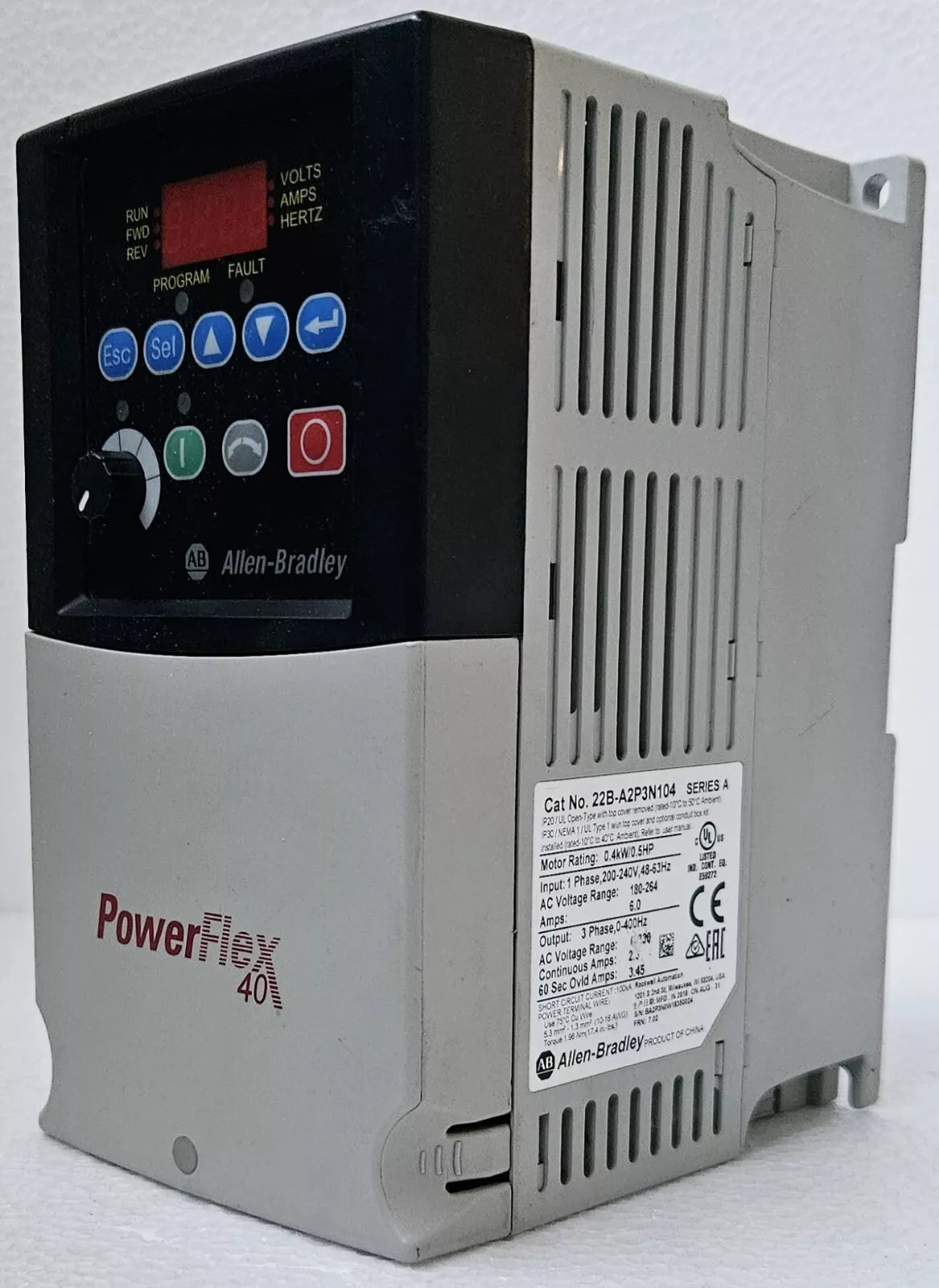

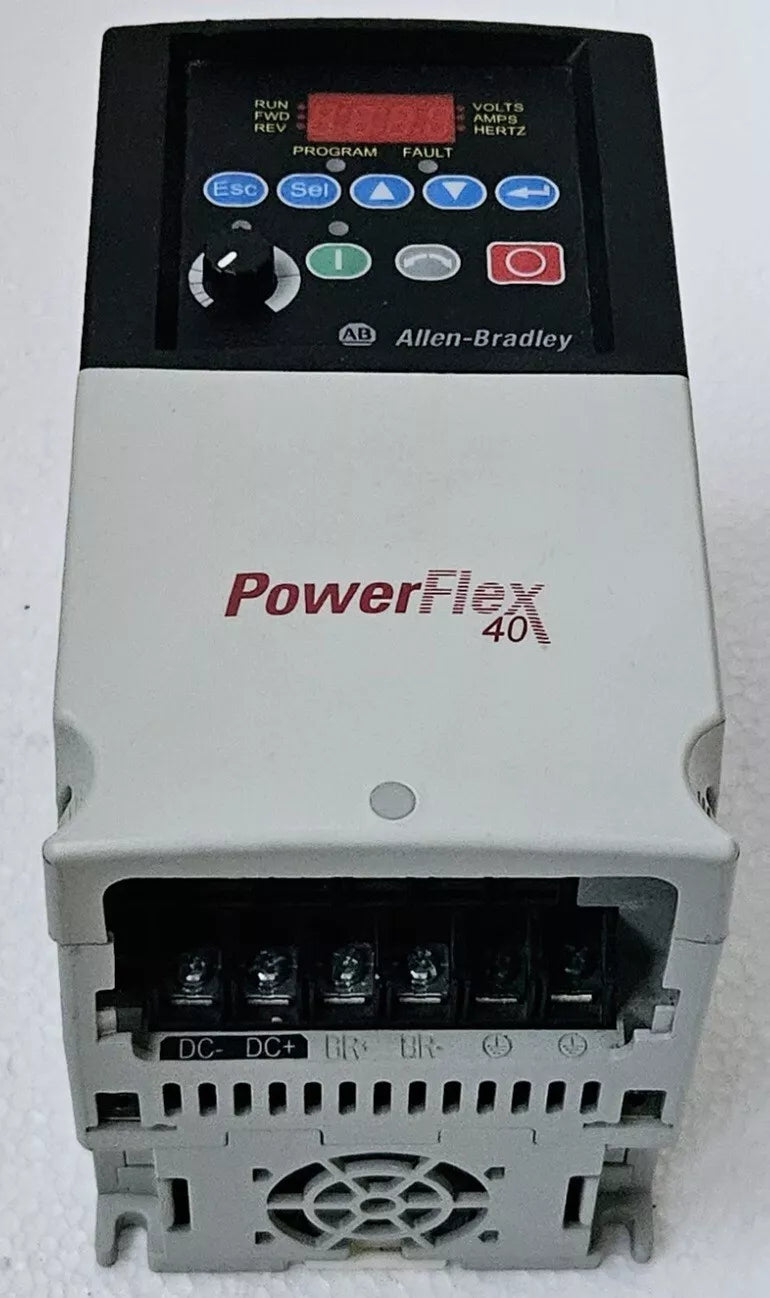

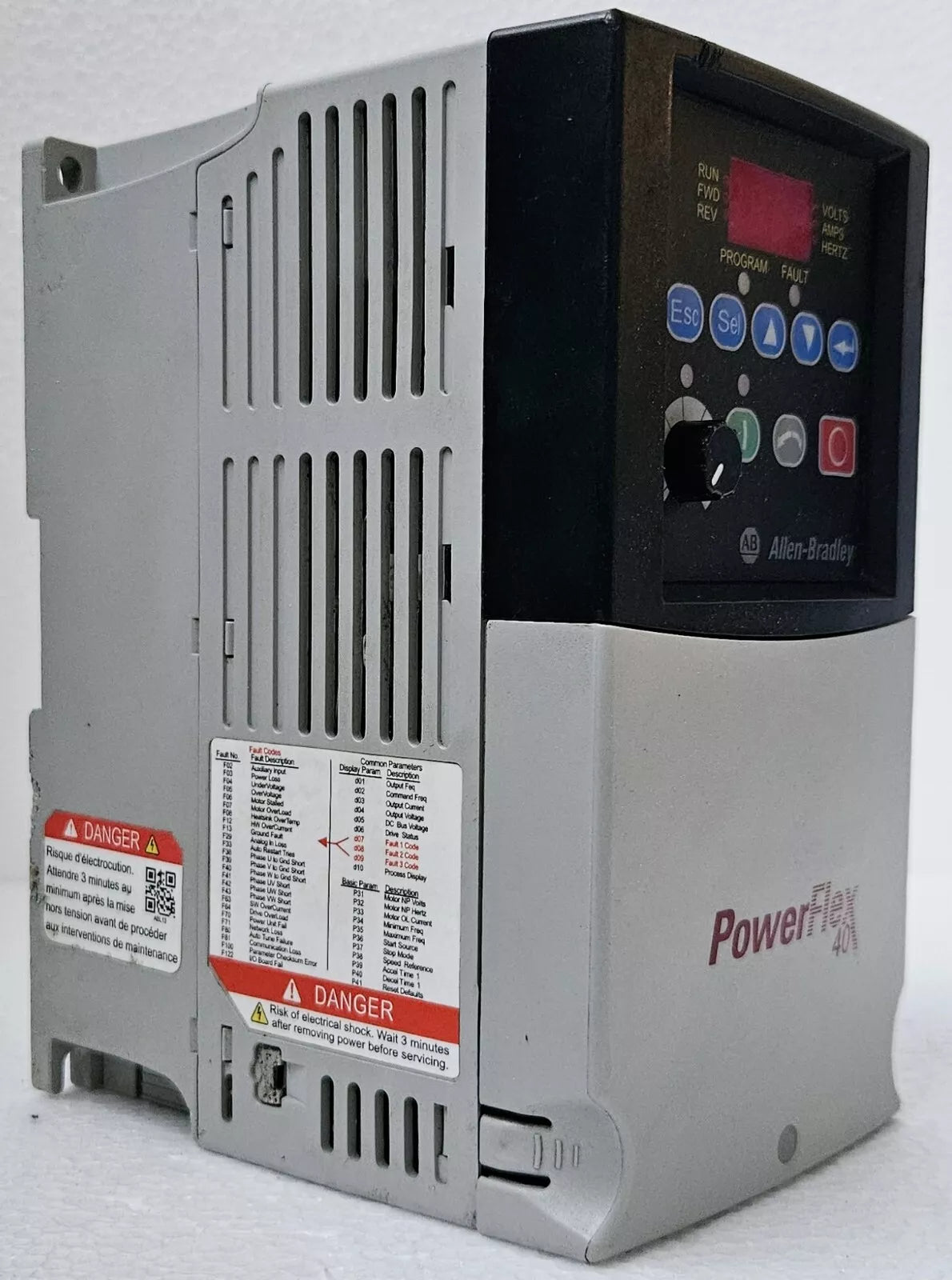

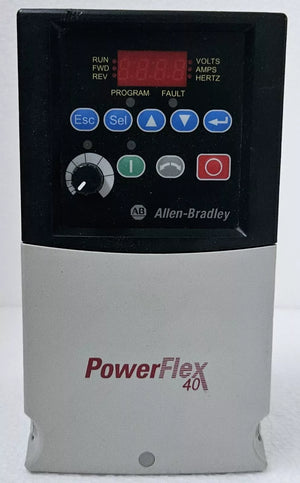

22B-A2P3N104 | Allen-Bradley PowerFlex 40 AC Drive 240VAC 1-Phase
- Regular price
- $1,015.00
- Sale price
- $1,015.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 22B-A2P3N104
Description
The Allen-Bradley 22B-A2P3N104 provides reliable motor speed control for single-phase applications within compact automation systems. This adjustable frequency drive from the PowerFlex 40 series operates at 240V AC and delivers up to 0.5 HP of output power.
Technical Specifications
|
Condition |
New/Never Used Surplus |
|---|---|
| Brand | Allen-Bradley |
|
Category |
Drives
|
|
Part Number |
22B-A2P3N104 |
| Subcatecory |
Motor Drives
|
| Product Line | Powerflex 40 |
| Voltage | 240AC Volts |
| Enclosure | Panel Mount - IP20, NEMA/UL Type Open |
| HP | 0.5 Horsepower |
| Amperage | 2.3 A |
| Phase | 1 Phase |
| Filter | No CE Compliant Filter |
| Communication | RS-485 |
| Input Type | Keypad |
| Weight | 1.49 kgs |
Information About 22B-A2P3N104
The 22B-A2P3N104 is a single-phase input variable frequency drive (VFD) from the Allen-Bradley PowerFlex 40 series. It operates at 240V AC with a frequency range of 50–60 Hz and provides a maximum output of 2.3 A. This drive supports motor loads up to 0.5 HP (0.4 kW) and features an open IP20-rated enclosure for panel-mounted indoor use. The unit includes a built-in keypad and RS-485 communication but does not include a CE-compliant EMC filter.
Key Features:
-
0.5 HP Output Power: Suitable for small motor control applications requiring compact drive performance.
-
240V Single-Phase Input: Operates on standard AC supply voltage, ideal for standalone machines or light-duty systems.
-
2.3 A Output Current: Supports low-to-medium load requirements with consistent drive performance.
-
Open IP20 Enclosure: Designed for panel mounting in protected environments; offers NEMA/UL Type Open rating.
-
Integrated Keypad Interface: Local control via a simple keypad for quick setup and manual operation.
-
RS-485 Communication: Enables basic networking or remote control within automation systems.
-
No Internal EMC Filter: CE-compliant filtering must be added externally if required for specific regulatory needs.
The 22B-A2P3N104 is a straightforward and efficient solution for controlling small motors in panel-mounted applications.
