22B-B2P3N104 | Allen-Bradley PowerFlex 40 Variable Frequency Drive
- Regular price
- $779.00
- Sale price
- $779.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 22B-B2P3N104
Description

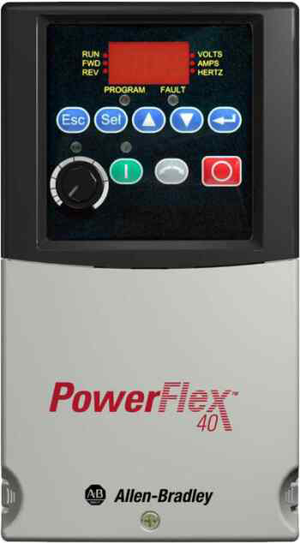

The Allen-Bradley 22B-B2P3N104 is a PowerFlex 40 variable frequency drive (VFD) designed for efficient motor speed control.
Technical Specifications
|
Condition |
New/Never Used Surplus |
|---|---|
| Brand | Allen-Bradley |
|
Category |
Drives |
|
Part Number |
22B-B2P3N104 |
| Subcatecory |
Motor Drives
|
| Input Voltage | 200-240VAC |
| Input Phase | 3-Phase |
| Rated Power | 0.75 kW (1.0 HP) |
| Installation | Panel Mount |
| Enclosure Rating | IP20 / NEMA UL Type Open |
| Keypad | LED Keypad |
| Product Line | Powerflex 40 |
| Communication | RS-485 |
| Weight | 1.54 kgs |
Information About 22B-B2P3N104
The Allen-Bradley 22B-B2P3N104 is part of the PowerFlex 40 series—compact, cost-effective AC drives designed for general-purpose motor control applications. With advanced features like sensorless vector control, integrated communication, and user-friendly programming, it delivers reliable performance for a wide range of industrial uses.
Key Features:
Electrical Specifications:
-
Input Voltage: 3-phase, 240V AC
-
Output Current: 2.3 A
-
Power Rating: 0.5 HP (0.4 kW)
-
Frequency Range: 0–400 Hz
Control and Performance:
-
Sensorless vector control for enhanced motor torque and performance
-
V/Hz control for standard applications
-
Built-in PID loop control
-
Adjustable acceleration/deceleration rates
Communication and Programming:
-
Built-in RS-485 (DPI) communication port
-
Optional communication modules available (DeviceNet, EtherNet/IP, Profibus)
-
Configurable via Human Interface Module (HIM) or Connected Components Workbench (CCW)
Design and Enclosure:
-
Enclosure Type: IP20 / NEMA Open Type
-
Compact footprint for panel or DIN rail mounting
-
Fan-cooled for extended operational life
-
Built-in diagnostics and fault protection
The 22B-B2P3N104 is a versatile and efficient AC drive solution that balances performance and simplicity, making it ideal for OEMs and end-users looking for reliable motor speed control in compact industrial environments.
Description
The Allen-Bradley 22B-B2P3N104 is a PowerFlex 40 variable frequency drive (VFD) designed for efficient motor speed control.
Technical Specifications
|
Condition |
New/Never Used Surplus |
|---|---|
| Brand | Allen-Bradley |
|
Category |
Drives |
|
Part Number |
22B-B2P3N104 |
| Subcatecory |
Motor Drives
|
| Input Voltage | 200-240VAC |
| Input Phase | 3-Phase |
| Rated Power | 0.75 kW (1.0 HP) |
| Installation | Panel Mount |
| Enclosure Rating | IP20 / NEMA UL Type Open |
| Keypad | LED Keypad |
| Product Line | Powerflex 40 |
| Communication | RS-485 |
| Weight | 1.54 kgs |
Information About 22B-B2P3N104
The Allen-Bradley 22B-B2P3N104 is part of the PowerFlex 40 series—compact, cost-effective AC drives designed for general-purpose motor control applications. With advanced features like sensorless vector control, integrated communication, and user-friendly programming, it delivers reliable performance for a wide range of industrial uses.
Key Features:
Electrical Specifications:
-
Input Voltage: 3-phase, 240V AC
-
Output Current: 2.3 A
-
Power Rating: 0.5 HP (0.4 kW)
-
Frequency Range: 0–400 Hz
Control and Performance:
-
Sensorless vector control for enhanced motor torque and performance
-
V/Hz control for standard applications
-
Built-in PID loop control
-
Adjustable acceleration/deceleration rates
Communication and Programming:
-
Built-in RS-485 (DPI) communication port
-
Optional communication modules available (DeviceNet, EtherNet/IP, Profibus)
-
Configurable via Human Interface Module (HIM) or Connected Components Workbench (CCW)
Design and Enclosure:
-
Enclosure Type: IP20 / NEMA Open Type
-
Compact footprint for panel or DIN rail mounting
-
Fan-cooled for extended operational life
-
Built-in diagnostics and fault protection
The 22B-B2P3N104 is a versatile and efficient AC drive solution that balances performance and simplicity, making it ideal for OEMs and end-users looking for reliable motor speed control in compact industrial environments.
