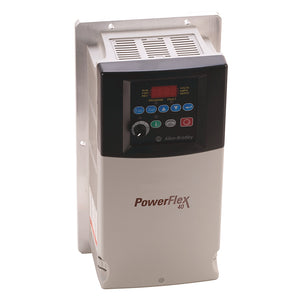

22B-E012N104 | Allen-Bradley PowerFlex 40 AC Drive 600VAC 3PH
- Regular price
- $7,387.00
- Sale price
- $7,387.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 22B-E012N104
Description
The Allen-Bradley 22B-E012N104 is a PowerFlex 40 Variable Frequency Drive (VFD) designed to provide efficient motor control in industrial applications. This drive supports an input voltage range of 414-660VAC, 3-phase power, delivering an output current of 12.2 A and supporting motors with a power rating of 7.5 kW (10 HP).
Technical Specifications
|
Condition |
New/Never Used Surplus |
|---|---|
| Brand | Allen-Bradley |
|
Category |
Drives |
|
Part Number |
22B-E012N104 |
| Subcatecory |
Motor Drives
|
| Input Voltage | 414-660VAC |
| Input Phase | 3-Phase |
| Rated Current output | 10.0 A |
| Rated Power | 7.5 kW (10.0 HP) |
| Installation | Panel Mount |
| Enclosure Rating | IP20 / NEMA UL Type Open |
| Keypad | LED Keypad |
| Product Line | Powerflex 40 |
| Voltage | 600AC Volts |
| Enclosure | Panel Mount - IP20, NEMA/UL Type Open |
| HP | 10 Horsepower |
| Amperage | 12.0 A |
| Phase | 3 Phase |
Information About 22B-E012N104
The 22B-E012N104 PowerFlex 40 VFD is part of the PowerFlex 40 series, known for its compact design, user-friendly interface, and flexible programming capabilities. This model is designed for panel mount installation with an IP20 / NEMA UL Type Open enclosure. The built-in LED keypad provides an intuitive control interface for easy configuration and monitoring.
Key Features:
-
Voltage and Power Capacity: Operates with an input voltage range of 414-660VAC, 3-phase, and delivers up to 7.5 kW (10 HP) motor power.
-
Current Output: Rated for 12.2 A to ensure efficient motor performance.
-
Compact Design: Ideal for installations requiring space-saving solutions while maintaining effective performance.
-
LED Keypad Interface: Equipped with a clear LED display for easy navigation, configuration, and monitoring.
-
Flexible Installation: Designed for panel mount installation to simplify integration into control systems.
-
Reliable Protection: The IP20 / NEMA UL Type Open enclosure provides sufficient protection for standard industrial environments.
The 22B-E012N104 PowerFlex 40 VFD is widely used in applications such as conveyors, fans, pumps, and other automated equipment requiring variable motor control.
