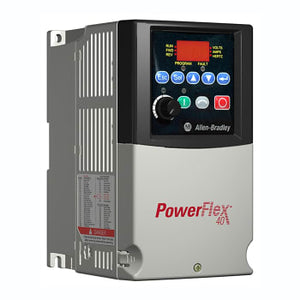

22B-E4P2N104 | Allen-Bradley PowerFlex 40 AC Drive

Description

The Allen-Bradley 22B-E4P2N104 is a PowerFlex 40 AC drive designed for general-purpose motor control. It features a 3-phase, 480V input, with a power rating of 1 HP (0.75 kW) and an output current of 2.3 A.

Technical Specifications

Information About 22B-E4P2N104

The Allen-Bradley 22B-E4P2N104 is part of the PowerFlex 40 drive series, designed for compact, high-performance motor control in general industrial applications. It offers robust features like sensorless vector control, versatile mounting options, and built-in communication, making it a flexible and cost-effective solution for small to mid-sized machinery.

Key Features:

Electrical Specifications:

• Input Voltage: 3-phase, 480V AC

• Output Current: 2.3 A

• Power Rating: 1 HP (0.75 kW)

• Frequency Range: 0–400 Hz

Control Capabilities:

• Sensorless vector control and V/Hz control

• Adjustable acceleration and deceleration

• Integrated PID control loop

Communication and Interface:

• Built-in RS-485 (DPI) communication port

• Compatible with optional communication modules (e.g., EtherNet/IP, DeviceNet)

• Configurable using HIM (Human Interface Module) or Connected Components Workbench (CCW) software

Design and Protection:

• Enclosure Type: IP20 / NEMA Open Type

• Panel or DIN rail mounting

• Built-in fault diagnostics and protective features

Programming and Setup:

• Simple programming via keypad or software

• Supports preset speeds, dynamic braking, and digital/analog inputs

The 22B-E4P2N104 delivers reliable and energy-efficient motor control in a compact form factor, making it ideal for OEMs and industrial users seeking a cost-effective drive for everyday automation needs.
