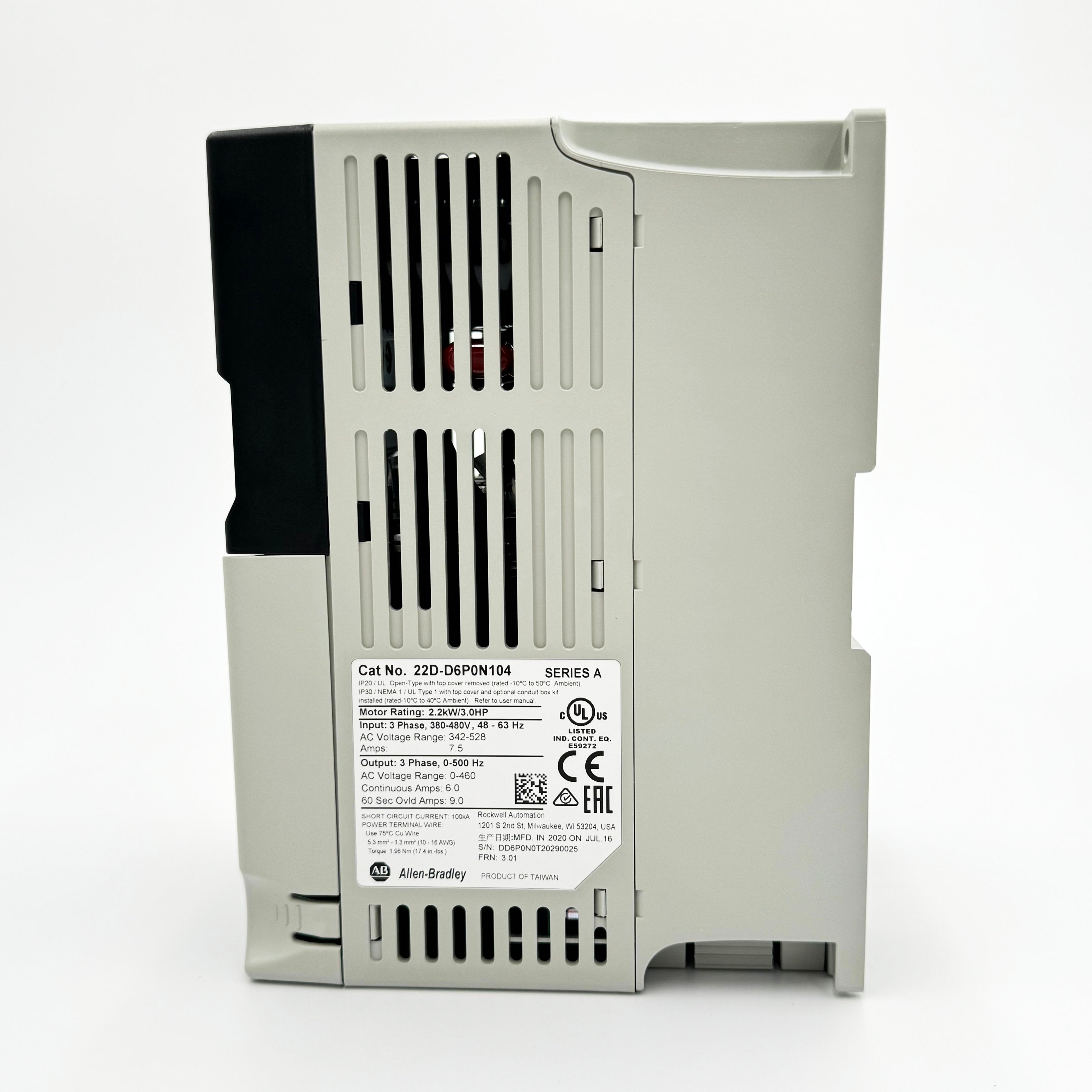

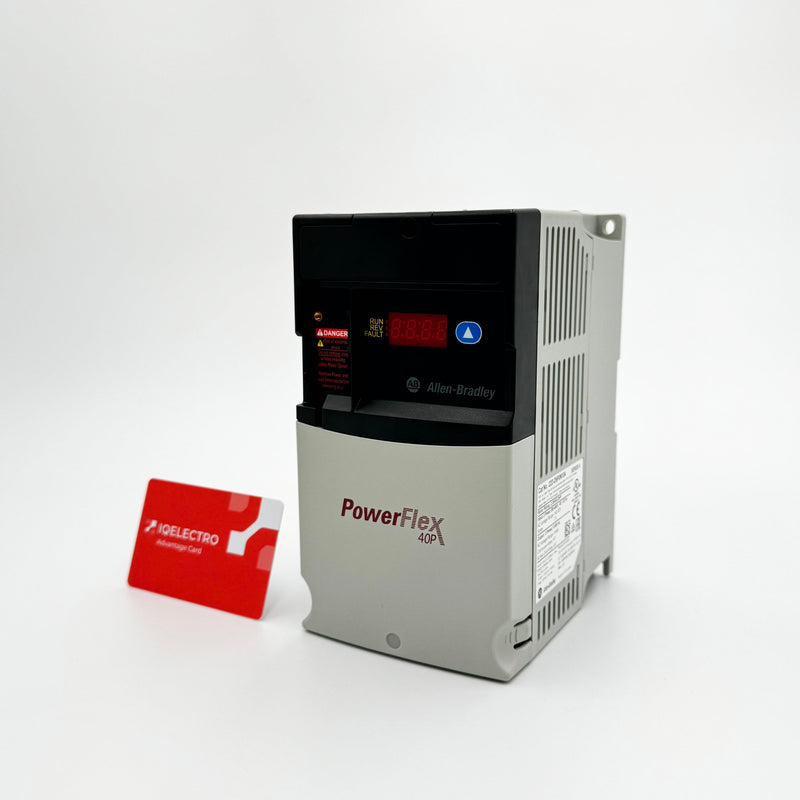

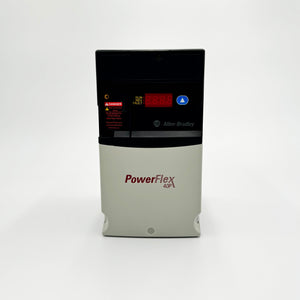

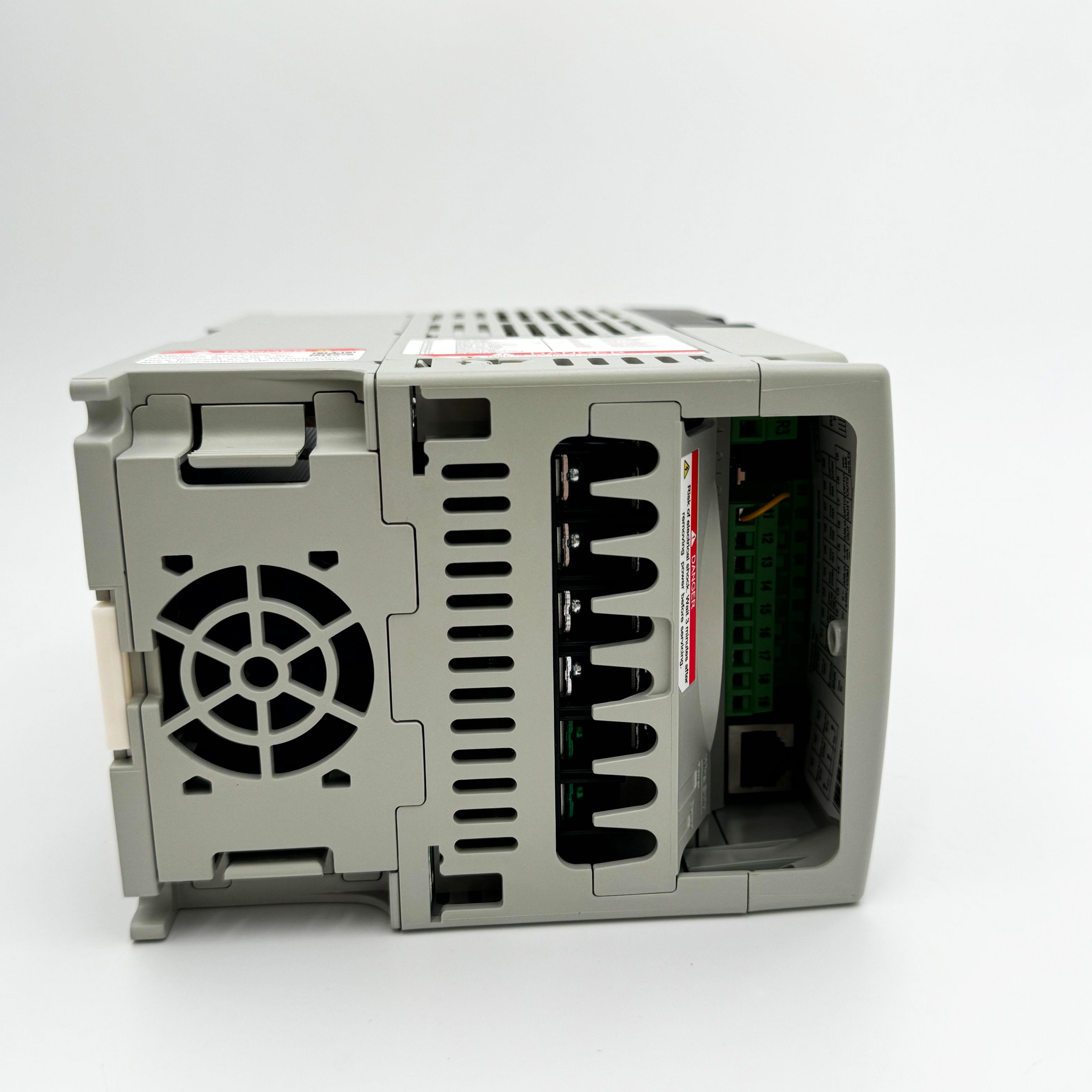

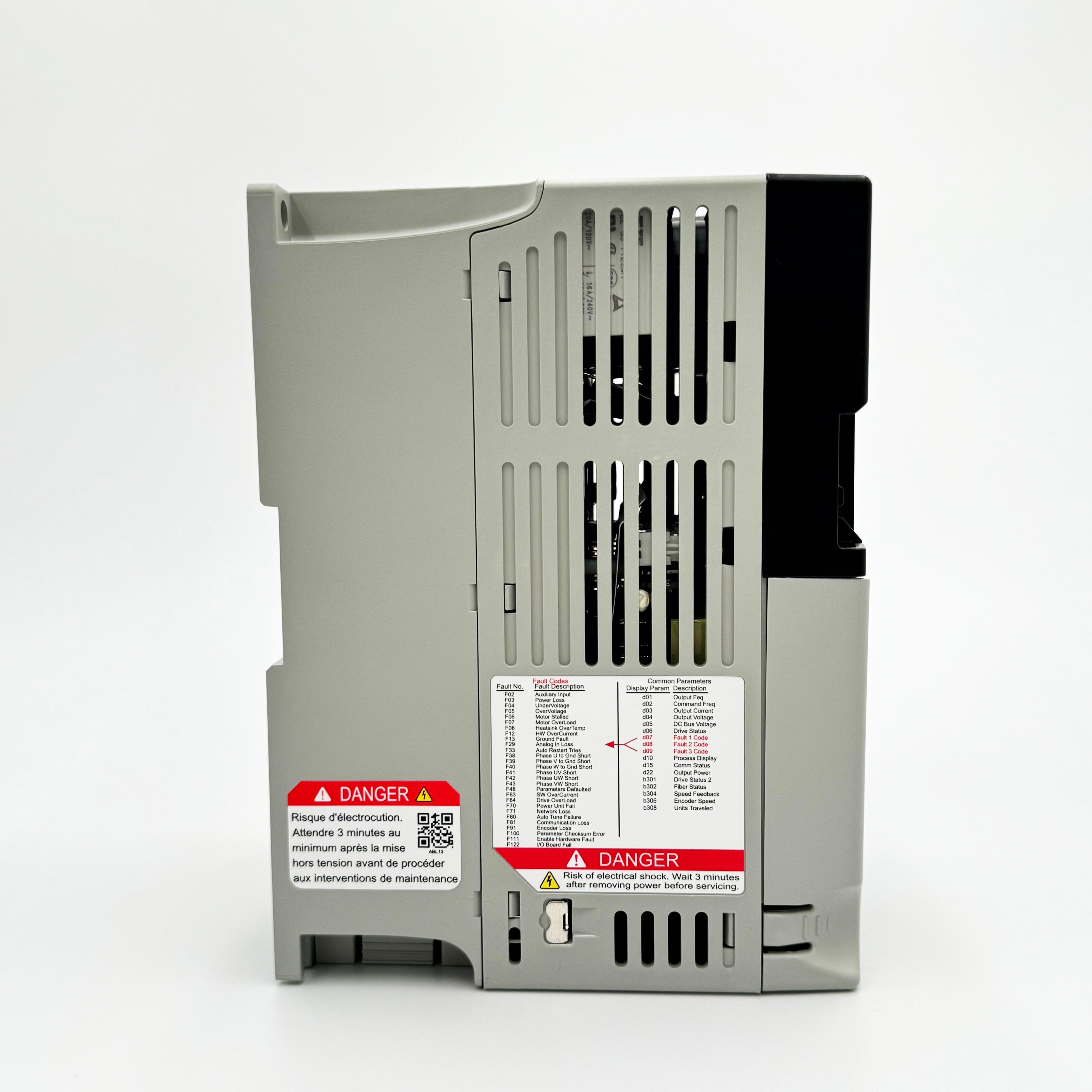

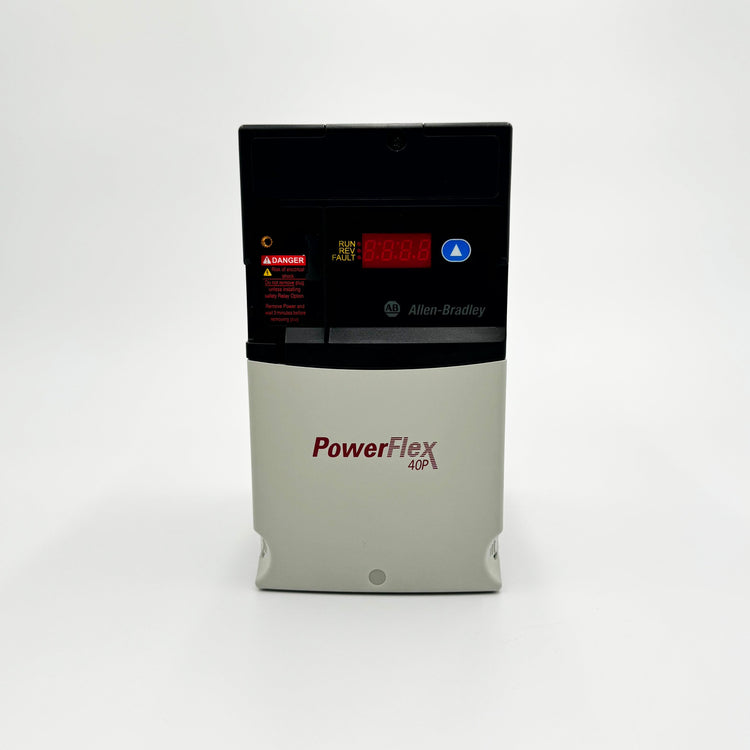

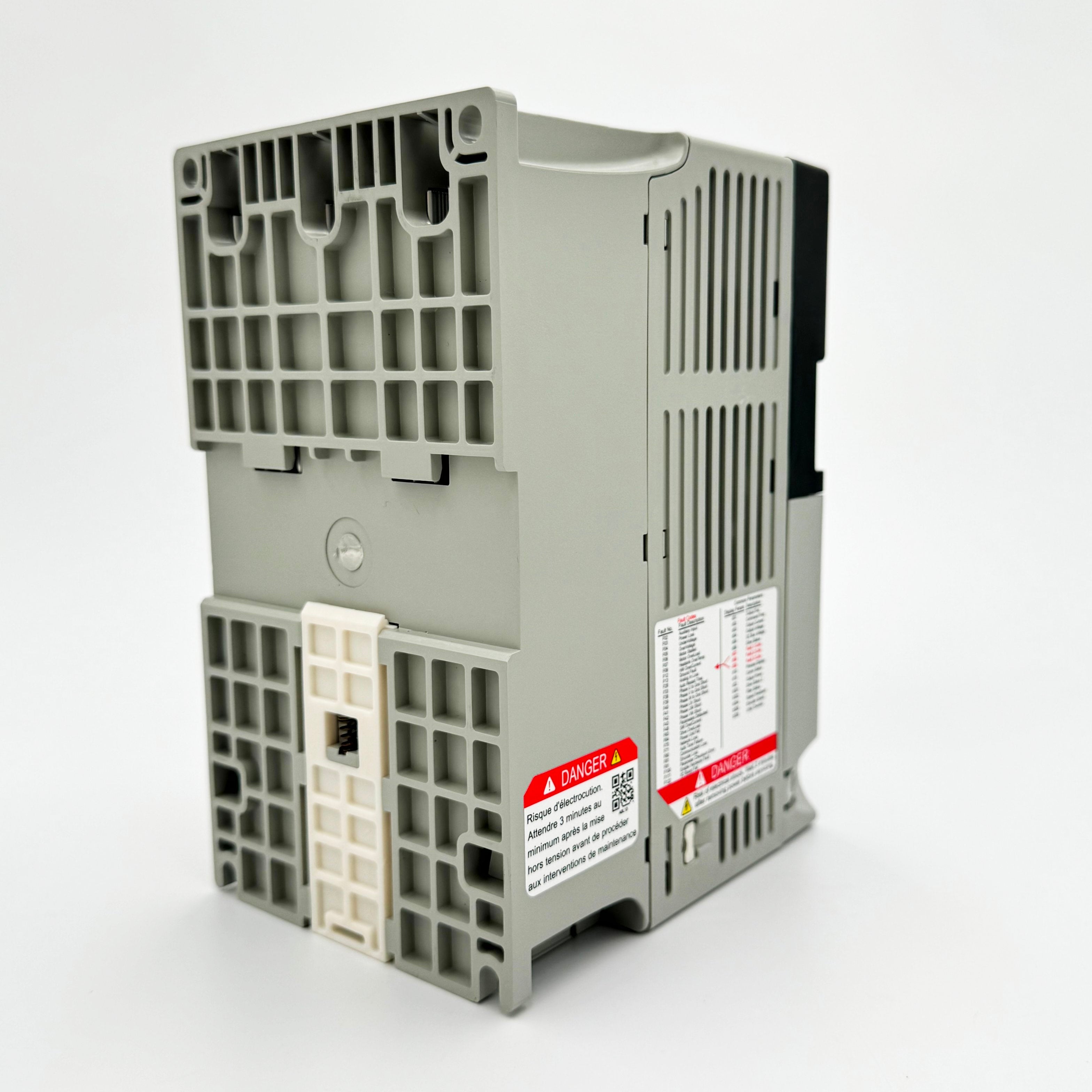

22D-D6P0N104 | Allen-Bradley PowerFlex 40P AC Drive 480VAC 3-Phase 6A 3HP IP20
- Regular price
- $799.00
- Sale price
- $799.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 22D-D6P0N104
Description
The Allen-Bradley 22D-6P0N104 PowerFlex 40P adjustable frequency AC drive for Fan and Pump applications. This drive features an input voltage range of 380-480VAC, 3-phase and delivers output voltage of 0-460VAC, 3-Phase, with rated Current of 6.0 A and Power of 2.2 kW (3.0 HP). This drive is capable of sinusoidal Pulse Width Modulation (PWM) and Volts / Hertz and Sensorless Vector Control (SVC) control methods. It has an integral RS485 communication interface.
Technical Specifications
| Brand | Allen-Bradley |
| Manufacturer | Rockwell Automation |
| Part Number | 22D-D6P0N104 |
| Optional communication protocols | BacNet; LonWorks; ProfiBus; Ethernet; DeviceNet; ControlNet |
| Built-in communication port | RS485 |
| Control Method | Sinusoidal PWM; Volts / Hertz; Sensorless Vector Control (SVC) |
| Enclosure Rating | IP20 / NEMA UL Open Type |
| Installation | Panel Mount |
| I/O | Discrete Inputs: Seven (7) Sink / Source Discrete Outputs: Two (2) Opto Output; One (1) Form C Contacts Analog Input: One (1) Analog Input 0-10VDC; 0- 20mA Analog Output: One (1) Analog Output 0-10VDC; 0- 20mA |
| Output Power | 2.2 kW (3.0 HP) |
| Output Voltage | 0-460VAC |
| Input Current | 7.5 A |
| Product Family | PowerFlex 40P for Fan and Pump applications |
| Input Voltage | 380-480VAC |
| Input Phase | 3-Phase |
| Product Line | Powerflex 40P |
| Amperage | 6.0 A |
| Phase | Three-Phase |
| Enclosure | Open NEMA Type -Panel Mount (IP20) |
| Input Power | 480 Volts AC |
| Horsepower | 3 Horsepower |
| Filter | No CE Compliant Filter |
| Type | Standard |
| Frame Size | B |
Information About 22D-D6P0N104
The Allen-Bradley 22D-D6P0N104 is a PowerFlex 40P Drive. This drive is ideally used in industrial Fan and Pump applications. It is specifically compatible for use in the Beverage and Brewing Industry, Fibers and Textiles Industry, Automotive Industry, and Material Handling. This drive is designed to be connected to an input voltage source of 380-480VAC, 3-Phase. It is capable of providing output ratings of 6.0 A continuous Current and 3.0 HP or 2.2 kW power output. This drive is a Frame B drive and supports direct panel mounting installation.

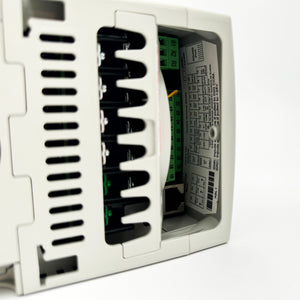

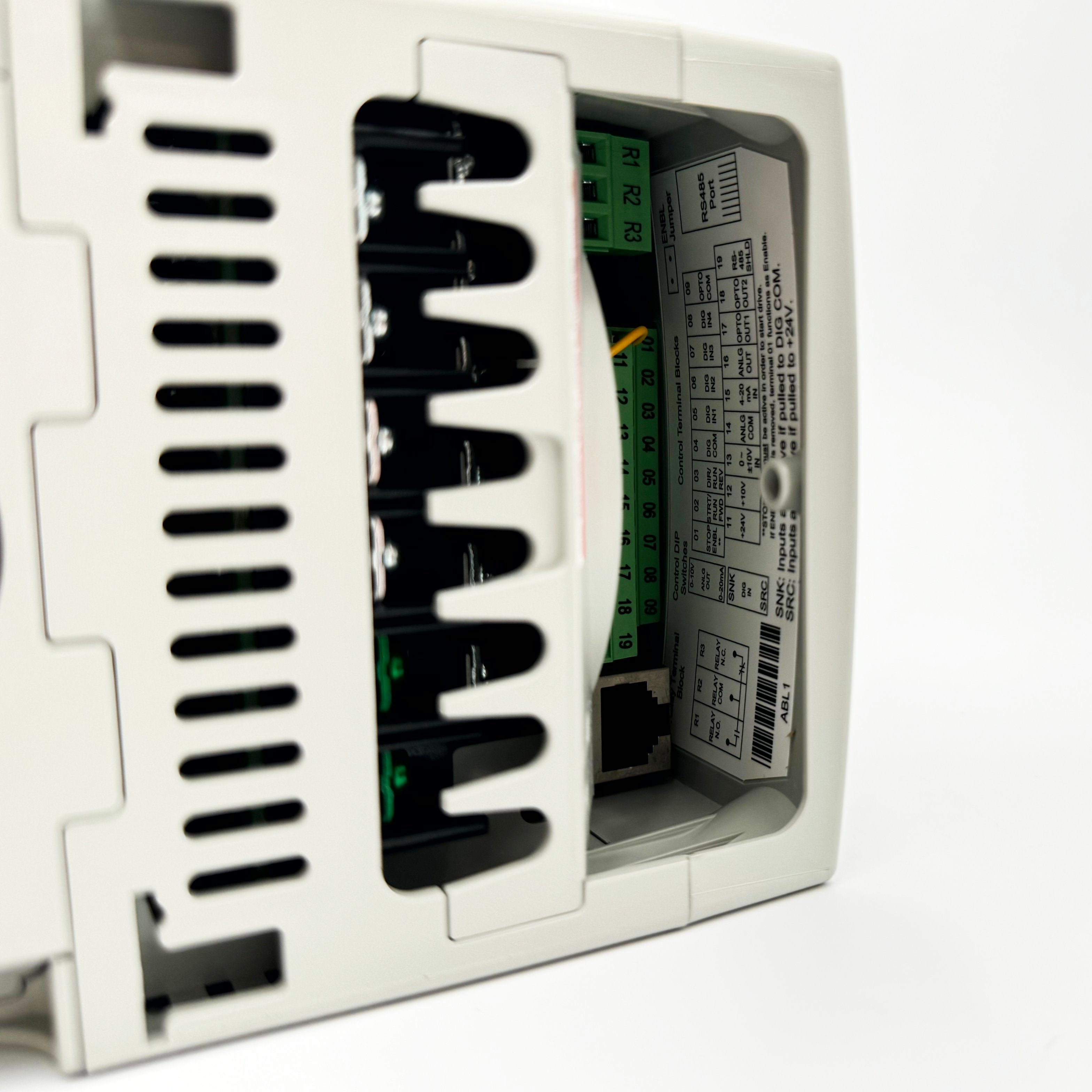

This drive is designed to be operated locally and remotely. Local operation is permitted through the embedded Human Interface Module (HIM). Aside from local operation, the HIM component permits configuration and display troubleshooting of the drive. Remote operation is enabled by hardwiring external I/O interfaces through the provided I/O channels of the drive. The drive has Seven (7) Sink / Source discrete inputs; Two (2) Opto Output and One (1) Form C contact output; One (1) Analog Input channel and One (1) Analog Output channels.
Additionally, the 22D-D6P0N104 supports other communication protocols such as Profibus, ControlNet, DeviceNet, Ethernet, Lonworks and Bacnet.
Fitted in a size B frame, the 22D-D6P0N104 requires little effort to mount to an IP20 NEMA open type enclosure. You can use the 22D-D6P0N104 to control the speed of applications, like diverters, synthetic fiber spinning machines, smart conveyors, and packaging machines. The 22D-D6P0N104’s manufacturer, Rockwell Automation, has engineered the drive’s architecture to meet the advanced requirements of global OEMs (original equipment manufacturers) and end users. In addition to being incredibly easy to use, it has multidimensional flexibility. The 22D-D6P0N104’s variable frequency gives you the option to maintain the speed of the motor according to the load requirement. In this way, you can maximize the energy efficiency of the drive while also enhancing its product lifespan and productivity.
Manufacturer information
Allen-Bradley, a brand of Rockwell Automation, specializes in manufacturing industrial automation equipment. The product range includes programmable logic controllers (PLCs), motion control systems, safety devices, motor control equipment, automation software, and HMI panels. Allen-Bradley products are known for their reliability and integration with other systems.
