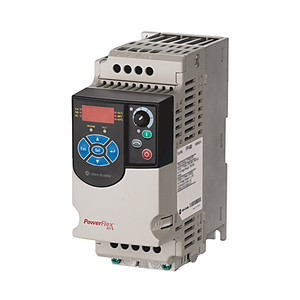

22F-D024N104 | Allen-Bradley PowerFlex 4M Adjustable Frequency AC Drive
- Regular price
- $987.00
- Sale price
- $987.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 22F-D024N104
Description
The Allen-Bradley 22F-D024N104 is a PowerFlex 4M adjustable frequency AC drive designed for cost-effective motor speed control in compact applications.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Allen-Bradley |
| Category |
Drives
|
| Part Number | 22F-D024N104 |
| Subcategory |
Drive
|
| Input Voltage | 380-480VAC |
| Input Phase | 3-Phase |
|
Input Current
|
7.5 A |
|
Output Voltage
|
0-460VAC |
|
Output Current
|
6.0 A |
|
Output Power
|
2.2 kW (3.0 HP) |
|
I/O
|
Discrete Inputs: Five (7) Sink / Source Discrete Outputs: One (1) Form C Contacts Analog Input: One (1) Analog Input 0-10VDC; 0- 20mA |
|
Installation
|
Panel Mount |
|
Enclosure Rating
|
IP20 / NEMA UL Open Type |
|
Frame
|
C |
|
Product Line
|
Powerflex 4M |
|
Amperage
|
24 Amp |
|
Wattage
|
11 Kilowatt |
|
Horsepower
|
15 Horsepower |
|
Communication
|
RS-485 Port |
|
Weight
|
10.60 lbs |
Information About 22F-D024N104
The Allen-Bradley 22F-D024N104 is a member of the PowerFlex 4M series, offering adjustable frequency AC drive control for industrial motors in compact and cost-sensitive applications. Designed for flexibility and performance, this model supports three-phase 480V input, provides up to 11 kW (15 HP) output power, and incorporates sensorless vector control for efficient motor performance. It is ideal for basic speed control applications in conveyors, fans, pumps, and other general-purpose machinery.
Key Features:
Power and Voltage Ratings:
-
Input Voltage: Three-phase 380-480V AC
-
Output Power: 11 kW / 15 HP
-
Rated Output Current: 24 Amps
-
Frequency Range: 0 to 400 Hz adjustable
Control Capabilities:
-
Control Type: Sensorless Vector Control (SVC) and Volts/Hertz (V/Hz)
-
Speed Regulation: Improved performance with dynamic response
-
Acceleration/Deceleration Control: Multiple programmable ramps
-
Slip Compensation and Boost Features for enhanced torque delivery
Built-in Communications and I/O:
-
Integrated RS-485 (Modbus RTU) Communication
-
4 Digital Inputs, 1 Digital Output
-
1 Analog Input, 1 Analog Output
-
Configurable for application flexibility
Design and Mounting:
-
Compact size for space-constrained panels
-
DIN-rail and panel-mount capable
-
Detachable keypad for local control and configuration
-
IP20 / NEMA Open Type enclosure rating
Protection and Safety:
-
Built-in motor overload protection (Class 10)
-
Fault diagnostics and alarms
-
Short-circuit, overvoltage, undervoltage, and overtemperature protection
Ease of Use:
-
Simple programming via integral keypad or external HIM
-
Compatible with Connected Components Workbench (CCW) software
-
Quick parameter access and duplication
The Allen-Bradley 22F-D024N104 PowerFlex 4M AC Drive provides a versatile and compact motor control solution for industrial applications that require reliable speed control, ease of integration, and efficient performance. With built-in communications, sensorless vector control, and protective features, it is a smart choice for OEMs and industrial users seeking cost-effective yet powerful drive functionality in space-limited environments.
