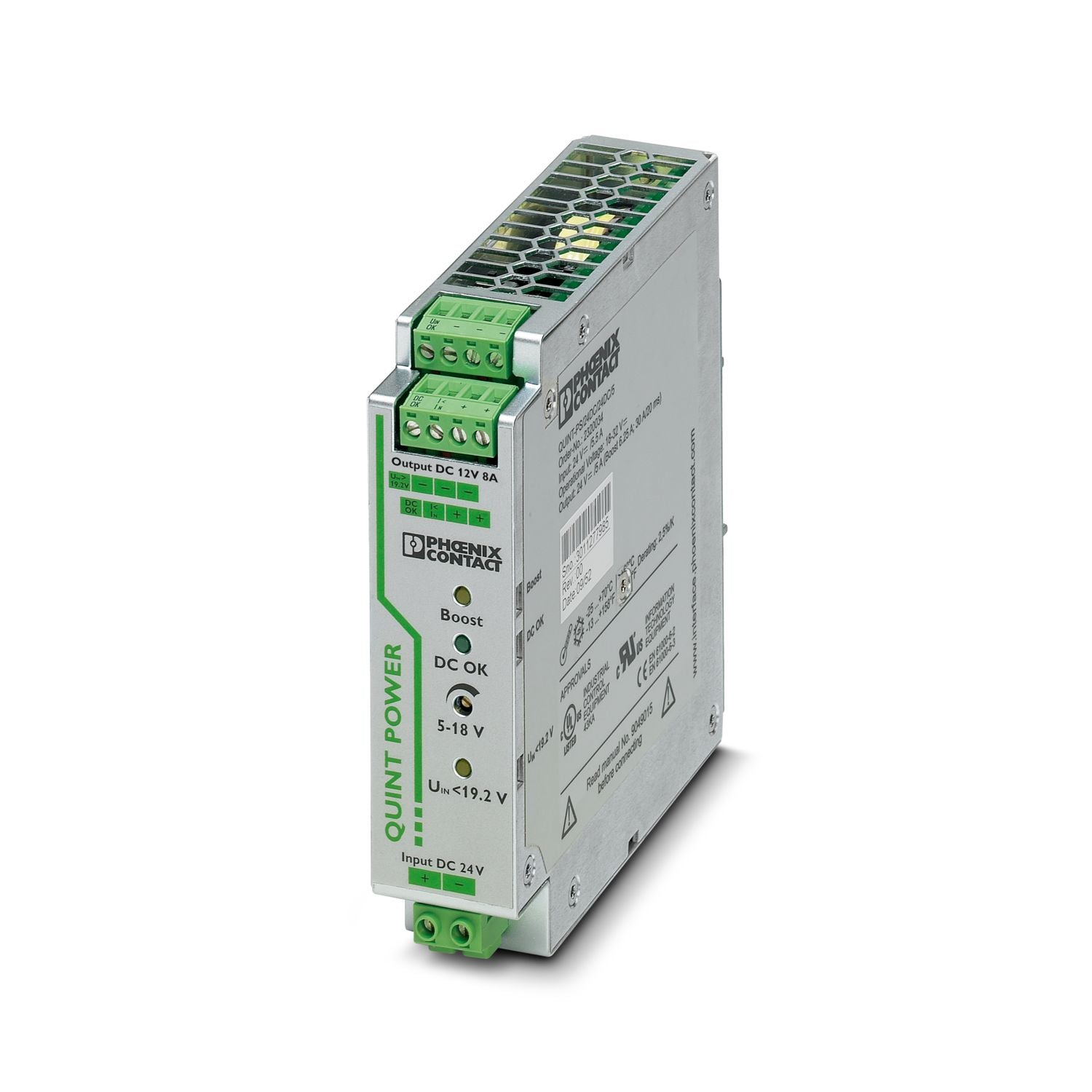

2320115 | Phoenix Contact QUINT-PS/24DC/12DC/ 8 - DC/DC converter

Description

DC-DC Converters, QUINT Series, Primary-Switched, Size: 32 MM W x 125 MM D x 130 MM HT, Input Voltage: 24 VDC, Input Current: 90 PCT, Pluggable Screw Connection, Conductor Size: 24 - 12 AWG, Operating Temperature Range: -25 To 70 DEG C, Environmental Conditions: -40 To 85 DEG C, ≤ 95 PCT Relative Humidity, Transient Surge Protection, Class III.

Technical Specifications

Information About 2320115

For extreme operating conditions, use the ideally matched combination of PLUGTRAB SEC surge protection device and the powerful QUINT POWER power supply of the fourth generation. However, should your fourth-generation QUINT POWER become damaged in the first five years following purchase despite the use of this combination, you will receive a free replacement .

The Power Boost power reserve easily starts loads with high inrush currents and ensures that fuses are reliably tripped. Preventive function monitoring diagnoses impermissible operating states and minimizes downtimes in your system. Remote monitoring is provided by an active transistor switching output and a floating relay contact. All devices are idling-proof and short-circuit-proof, and are available with a regulated and adjustable output voltage of 12, 24, and 48 V DC with output currents of 2.5, 5, 10, 20, 30, and 40 A. Power supply units for use in Ex zone 2, uninterruptible solutions, AS-i power supply units, and a QUINT diode complete this comprehensive product range.

QUINT DC-DC Converters with maximum functionality, alter the voltage level, regenerate the voltage at the end of long cables or enable the creation of independent supply systems by means of electrical isolation. QUINT DC-DC Converters magnetically and therefore quickly trip circuit breakers with six times the nominal current, for selective and therefore cost-effective system protection. The high level of system availability is additionally ensured, preventive function monitoring reports critical operating states before errors occur

Reliable starting of difficult loads, thanks to the static POWER BOOST power reserve with up to 125 PCT nominal current permanently
Preventive function monitoring indicates critical operating states before errors occur
Electrical isolation for setting up independent supply systems
Constant voltage: output voltage regenerated even at the end of long cables
Support conversion to various voltage levels
