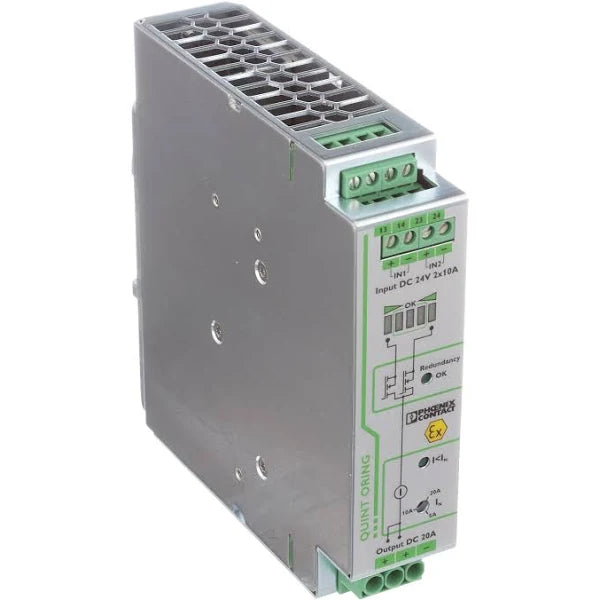

2320173 | Phoenix Contact Redundancy Module
- Regular price
- $237.00
- Sale price
- $237.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 2320173
Description
The Phoenix Contact 2320173 is a MINI MCR-SL-UI-UI signal conditioner designed for analog signal isolation, conversion, and transmission. It provides galvanic isolation between input and output signals, ensuring accurate and interference-free data transmission.
Technical Specifications
| Brand | Phoenix Contact |
| Product Category | Redundancy Modules |
| Mounting Style | DIN Rail Mount |
| Output Power | 2 W |
| Input Voltage | 18 VDC to 28 VDC |
| Number of Outputs | 1 Output |
| Output Voltage-Channel 1 | 18 VDC to 28 VDC |
| Output Current-Channel 1 | 20 A |
| Length | 125 mm |
| Width | 32 mm |
| Height | 130 mm |
| Maximum Operating Temperature | + 70 C |
| Minimum Operating Temperature | - 25 C |
Information About 2320173
The 2320173 is part of the Phoenix Contact MINI Analog Signal Conditioner (MINI MCR-SL) series, developed to deliver reliable signal conversion in compact spaces. It supports universal analog input signals such as current (0/4–20 mA) or voltage (±10 V, 0–10 V) and converts them into standard analog output signals. The module offers 3-way galvanic isolation (2.5 kV) between input, output, and supply circuits, protecting control systems from electrical interference. It operates on a 24V DC supply and has a slim 6.2 mm housing for DIN rail mounting, optimizing panel space. Configuration is done via DIP switches, and integrated status LEDs simplify commissioning and diagnostics.
Key Features:
- Design: Universal analog signal conditioner for industrial automation.
- Signal Support: Accepts current (0/4–20 mA) and voltage (±10 V, 0–10 V) inputs.
- Output: Provides standard analog current or voltage output signals.
- Isolation: 3-way galvanic isolation (2.5 kV) between input, output, and supply.
- Power Supply: Operates on 24V DC.
- Form Factor: Slim 6.2 mm housing saves space on DIN rails.
- Configuration: DIP switch settings for easy range selection.
- Application Range: Ideal for process control, factory automation, and building systems.
The Phoenix Contact 2320173 delivers the accuracy, noise immunity, and compact design required for reliable signal conditioning in industrial control environments.
Manufacturer information
Phoenix Contact is a global market leader and innovator in the electrical engineering and automation sectors. Founded in 1923 the family-owned company from Blomberg, Germany, now owns an international distribution network providing guaranteed proximity to its customers. Phoenix Contact offers innovative products and solutions around industrial connection technology, automation, interface-systems and surge protection. The product range includes sensors, controllers, modular terminal blocks, splash-proof machinery connectors, wireless Ethernet products for up-to-date control cabinets, and custom solutions for various applications.
