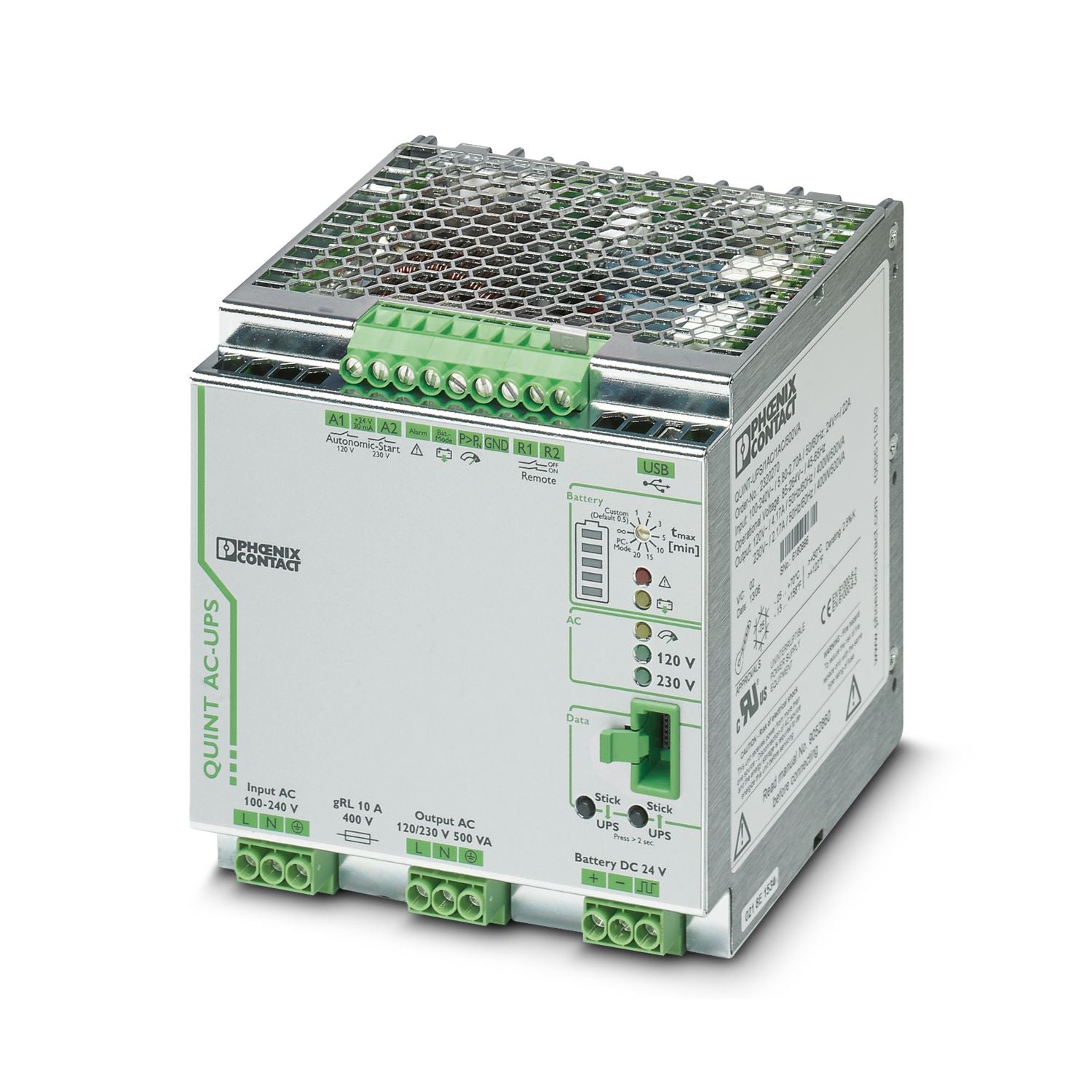

2320270 | Phoenix Contact Uninterruptible Power Supply
- Regular price
- $1,409.00
- Sale price
- $1,409.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 2320270
Description
The Phoenix Contact 2320270 Uninterruptible Power Supply, part of the QUINT UPS Series, designated as QUINT-UPS/1AC/1AC/500VA, is engineered to deliver uninterrupted power for 120 V AC/230 V AC applications. This UPS unit features IQ technology, offering detailed insights into the charging state, remaining runtime, and service life of the rechargeable battery module. By providing continuous monitoring and reporting, it enhances system availability, ensuring reliable power backup in critical applications.
Technical Specifications
|
Part # |
QUINT-UPS/1AC/1AC/500VA |
|
Manufacturer |
PHOENIX CONTACT |
|
Category |
Power Supplies |
|
Subcategory |
Power Supply |
|
Nominal input voltage range |
100 V AC ... 240 V AC |
|
Input voltage range |
184 V AC ... 264 V AC |
|
Voltage type of supply voltage |
AC |
|
Nominal frequency |
50 Hz ... 60 Hz |
|
AC frequency range |
45 Hz ... 65 Hz |
|
Buffer period |
1 h (38 AH) |
|
Current consumption |
2.2 A (230 V AC) |
|
Fixed backup threshold |
Configurable, 10% deviation from nominal input voltage set by default |
|
Variable connect threshold |
Can be configured using UPS-CONF software |
|
Power factor (cos phi) |
0.8 |
|
Device mains fuse |
10 A |
|
Permissible backup fuse |
B16 230 V AC |
|
Battery-operated start 120 V AC Default |
Plug-in bridge (output +24 V DC, 30 mA to input A1) |
|
Bridging time |
3600 s |
|
Derating |
> 50 °C ... 70 °C (2.5 %/K) |
|
UPS connection in parallel |
No |
|
UPS connection in series |
No |
|
Output power |
516 W |
|
Apparent power |
500 VA |
|
Nominal power |
400 W |
|
Crest factor |
2.8 |
|
Switch-over time |
< 10 ms |
|
Maximum switching voltage |
≤ 30 V DC |
|
Output voltage |
24 V (SELV) |
|
Continuous load current |
≤ 30 mA |
|
Nominal voltage UN |
24 V DC |
|
End-of-charge voltage |
25 V DC ... 30 V DC (temperature compensated) |
|
Charging current |
2 A |
|
Nominal capacity range |
3.4 Ah ... 114 Ah (3x 38 Ah) |
|
Battery presence check/time interval |
1 min. |
|
Battery presence check (cyclic) |
60 s |
|
Energy storage device connection in parallel |
Yes, 3 (observe line protection) |
|
Energy storage device connection in series |
No |
|
IQ technology |
Yes |
|
Temperature compensation |
42 mV/K (preset) |
|
Permissible backup fuse |
50 A |
|
Network management |
Yes |
|
Housing material |
Metal |
|
Type of housing |
Aluminum (AlMg3) |
|
Hood version |
Galvanized sheet steel, free from chrome (VI) |
|
Side element version |
Aluminum |
|
Housing material |
Steel sheet, zinc-plated |
|
Degree of protection |
IP20 |
|
Ambient temperature (operation) |
-25 °C ... 70 °C (> 50 °C Derating: 2.5 %/K) |
|
Ambient temperature (storage/transport) |
-40 °C ... 85 °C |
|
Ambient temperature (start-up type tested) |
-40 °C |
|
Climatic class |
3K3 (in acc. with EN 60721) |
|
Max. permissible relative humidity (operation) |
≤ 95 % (25 °C, non-condensing) |
|
Shock |
18 ms, 30g, in each space direction (according to IEC 60068-2-27) |
|
Vibration (operation) |
< 15 Hz, amplitude ±2.5 mm (according to IEC 60068-2-6) |
Information About 2320270
The Phoenix Contact 2320270 Uninterruptible Power Supply (UPS), a part of the QUINT UPS Series, denoted as QUINT-UPS/1AC/1AC/500VA, is engineered to provide uninterrupted power for applications requiring either 120 V AC or 230 V AC. This UPS unit features IQ technology, which continuously monitors and reports essential information regarding the charging state, remaining runtime, and service life of the rechargeable battery module.
The QUINT-UPS/1AC/1AC/500VA UPS serves as a critical component in ensuring system availability by offering reliable power backup and monitoring capabilities. Its ability to provide detailed insights into the status of the battery module enhances system reliability by enabling proactive maintenance and ensuring timely replacements, thereby minimizing downtime and maximizing operational efficiency.
Designed for versatility, the UPS is suitable for a wide range of applications requiring uninterrupted power supply, including industrial automation, telecommunications, data centers, and critical infrastructure. With its capability to support both 120 V AC and 230 V AC applications, it offers flexibility in deployment across various electrical systems and environments.
The inclusion of IQ technology sets this UPS apart by providing advanced monitoring and reporting capabilities, which are essential for maintaining the integrity and reliability of power backup systems. By continuously monitoring key parameters such as battery status and runtime, IQ technology enables operators to make informed decisions regarding maintenance and operation, thereby ensuring optimal performance and longevity of the UPS system.
Manufacturer information
Phoenix Contact is a global market leader and innovator in the electrical engineering and automation sectors. Founded in 1923 the family-owned company from Blomberg, Germany, now owns an international distribution network providing guaranteed proximity to its customers. Phoenix Contact offers innovative products and solutions around industrial connection technology, automation, interface-systems and surge protection. The product range includes sensors, controllers, modular terminal blocks, splash-proof machinery connectors, wireless Ethernet products for up-to-date control cabinets, and custom solutions for various applications.
