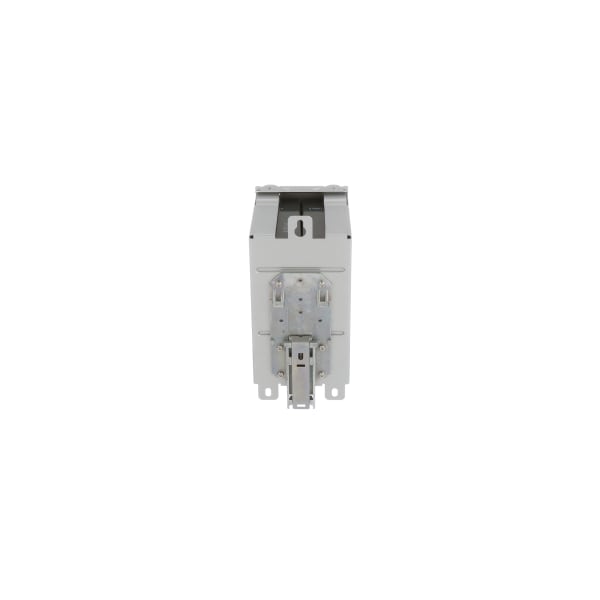

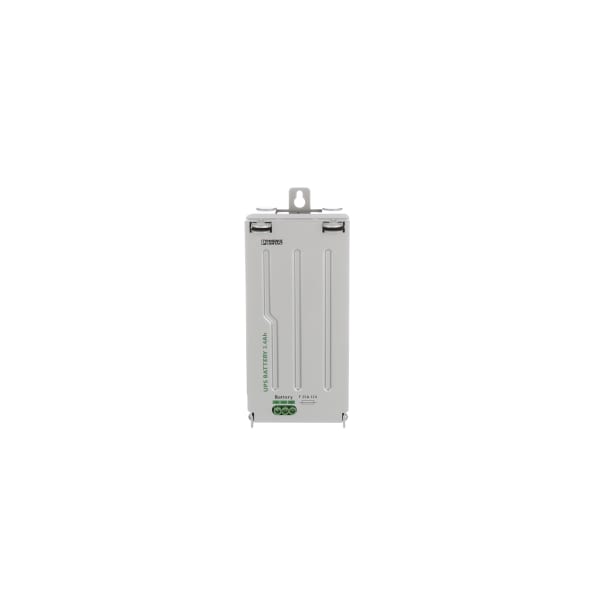

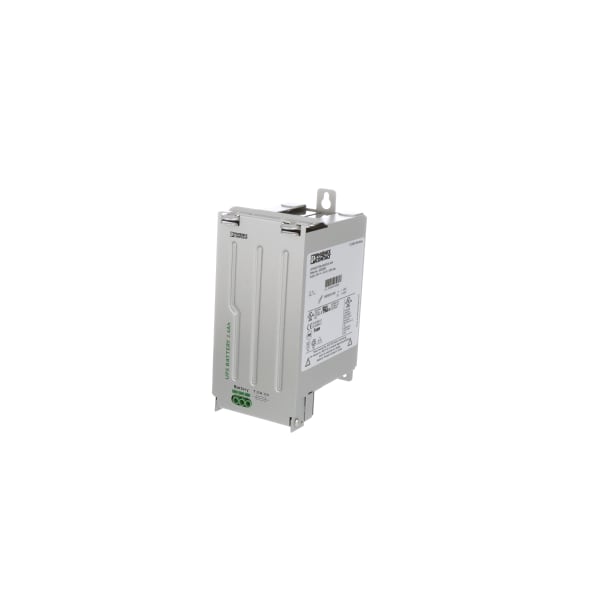

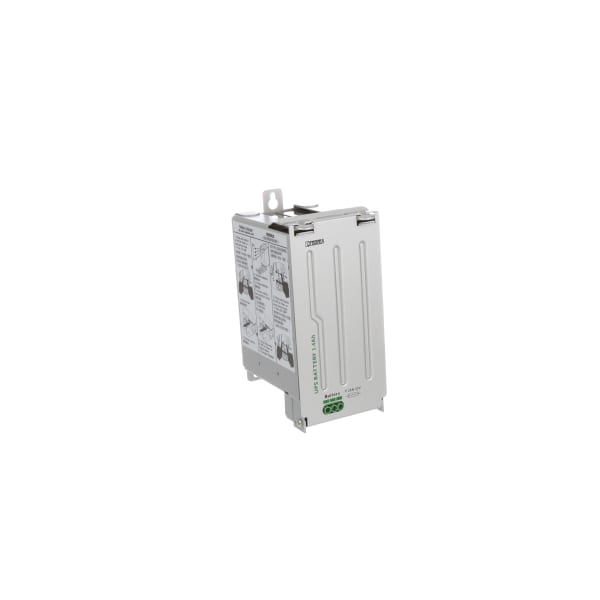

2320306 | Phoenix Contact | Battery module
- Regular price
- $479.00
- Sale price
- $479.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 2320306
Description
Technical Specifications
Specifications
|
Part # |
2320306 |
|
Input voltage |
24 V DC |
|
Buffer period |
4.5 min. (20 A), 3 min. (25 A) |
|
Nominal output voltage |
24 V DC |
|
Output current Imax |
25 A |
|
Output fuse |
1x 25 A |
|
Connection in parallel |
5 |
|
Connection in series |
No |
|
Nominal output current (IN) |
25 A |
|
End-of-charge voltage |
27.6 V (20 °C) |
|
Charging current |
1.36 A |
|
Nominal capacity |
3.4 Ah |
|
Battery module service life |
6 Years ... 9 Years (20 °C) |
|
Latest startup date (battery only) |
6 Months (0 °C ... 20 °C), 3 Months ... 6 Months (20 °C ... 30 °C), 1 Month ... 3 Months (30 °C ... 40 °C) |
|
Battery technology |
VRLA-AGM |
|
Memory medium |
Lead rechargeable battery module |
|
Accumulator type |
Panasonic UP-VW1220P1 |
|
Number of cells |
2 |
|
Size designation |
Block |
|
Battery pack |
Yes |
|
Disposal |
Used batteries must not be thrown away with household waste, they should instead be disposed of in accordance with applicable national regulations. |
|
IQ technology |
Yes |
|
Temperature sensor |
Yes |
|
Suitable for fast charging |
Yes |
|
Product type |
Battery unit |
|
Product family |
Battery module |
|
Protection class |
III |
|
Degree of pollution |
2 |
Information About 2320306
The UPS-BAT/VRLA/24DC/3.4AH battery module serves as an energy storage device utilizing lead Absorbent Glass Mat (AGM) technology with Valve Regulated Lead-Acid (VRLA) characteristics. It operates at a voltage of 24 V DC and possesses a capacity of 3.4 Ah. Notable features of this module include tool-free battery replacement and automatic detection capabilities, facilitating seamless integration and maintenance within compatible systems. Moreover, it supports communication with the QUINT UPS-IQ system, enhancing monitoring and control functionalities.
The design and construction of the UPS-BAT/VRLA/24DC/3.4AH battery module prioritize efficiency and reliability in energy storage applications. Leveraging VRLA technology ensures a maintenance-free operation, while the AGM composition contributes to its durability and longevity. The 24 V DC voltage output aligns with standard industrial requirements, offering compatibility with various power systems and equipment.
With a capacity of 3.4 Ah, the UPS-BAT/VRLA/24DC/3.4AH battery module provides sufficient energy storage for a range of applications, from small-scale setups to larger industrial environments. Its compact form factor and efficient design make it suitable for space-constrained installations while delivering reliable performance.
The tool-free battery replacement feature simplifies maintenance procedures, reducing downtime and minimizing operational disruptions. Automatic detection capabilities enable seamless integration with compatible systems, streamlining setup processes and ensuring optimal functionality.
Manufacturer information
Phoenix Contact is a global market leader and innovator in the electrical engineering and automation sectors. Founded in 1923 the family-owned company from Blomberg, Germany, now owns an international distribution network providing guaranteed proximity to its customers. Phoenix Contact offers innovative products and solutions around industrial connection technology, automation, interface-systems and surge protection. The product range includes sensors, controllers, modular terminal blocks, splash-proof machinery connectors, wireless Ethernet products for up-to-date control cabinets, and custom solutions for various applications.
