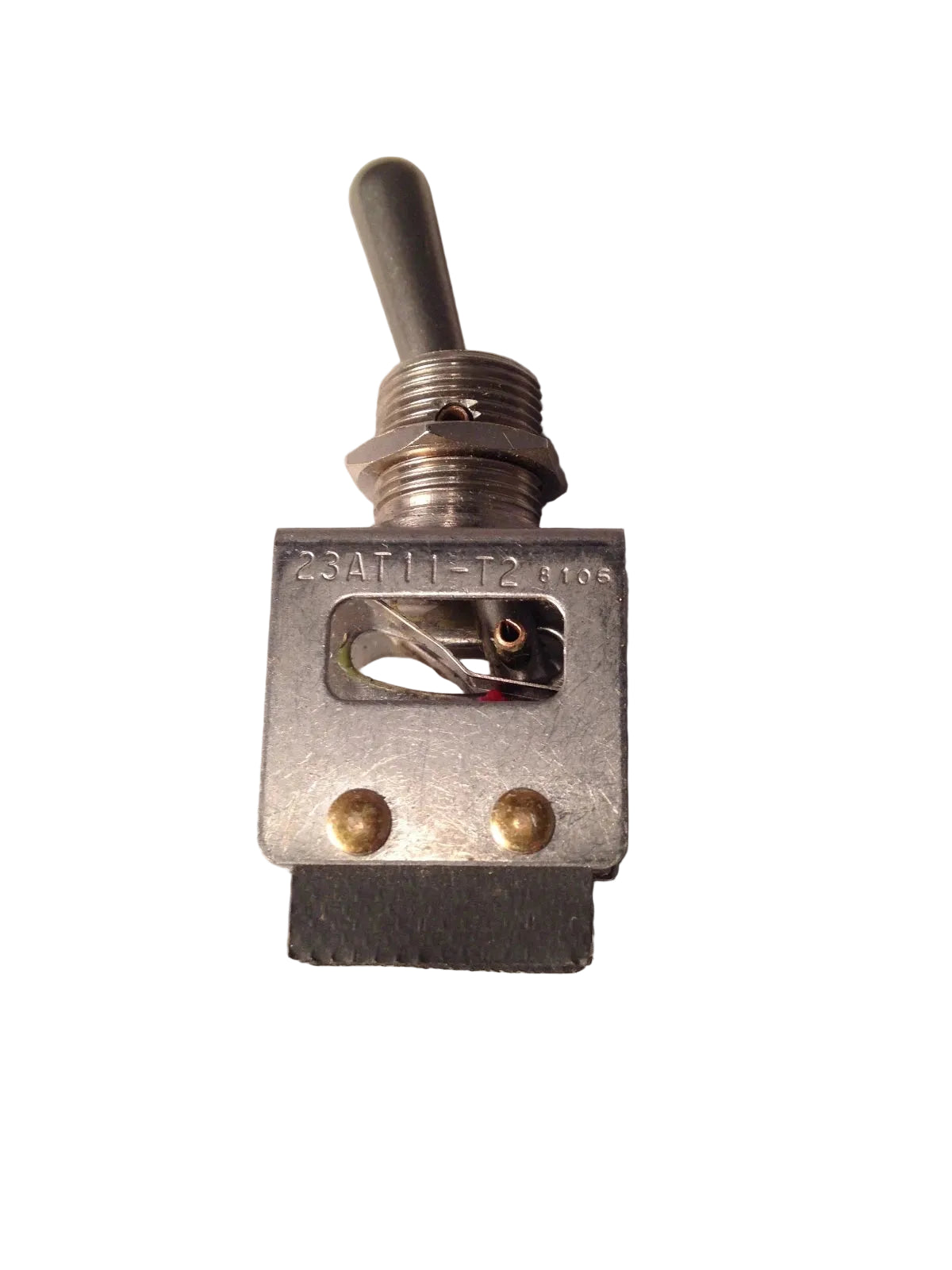

23AT11-T2 | Honeywell DPDT ON-ON Panel Mount Toggle Switch 1A 125VAC
- Regular price
- $225.00
- Sale price
- $225.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 23AT11-T2
Description
The Honeywell 23AT11-T2 is a panel-mount DPDT toggle switch designed for low-current control circuits in industrial and electronic equipment. Rated at 1A up to 125 VAC or 30 VDC, it provides reliable ON-ON switching through a standard round lever actuator. This switch is engineered for precise signal routing and dependable operation in compact control panels and instrumentation assemblies.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Honeywell |
| Category | Electromechanical Components |
| Part Number | 23AT11-T2 |
| Subcategory | Toggle Switches |
| Contact Form | DPDT |
| Switch Function | ON – ON |
| Current Rating | 1 A |
| Voltage Rating AC | 125 VAC |
| Voltage Rating DC | 30 VDC |
| Termination Style | Solder Pin |
| Mounting Style | Through Hole / Panel Mount |
| Actuator Type | Standard Round Lever |
| Actuator Length | 17.53 mm |
| Bushing Size | 15/32-32 Threaded |
| Contact Plating | Nickel |
| Illumination | Non-Illuminated |
| Weight | 0.05 lb |
Information About 23AT11-T2
The 23AT11-T2 is part of Honeywell’s AT Series toggle switches, built for rugged performance and long service life in demanding environments. The switch features a threaded bushing for secure panel mounting and solder pin terminations suitable for through-hole PCB or wired connections. With a double-pole, double-throw (DPDT) contact configuration, it enables simultaneous control of two independent circuits in ON-ON operation. Its nickel-plated contacts and non-illuminated design make it suitable for industrial controls, test equipment, and OEM panel assemblies requiring stable electrical performance.
Key Features:
- DPDT Contact Configuration: Controls two separate circuits simultaneously with double-pole, double-throw functionality.
- ON–ON Switching Function: Maintains continuous circuit engagement in either of two positions.
- 1A Current Rating: Designed for low-power applications up to 1 ampere.
- 125 VAC / 30 VDC Rating: Suitable for both AC and DC control circuits.
- Solder Pin Termination: Enables secure through-hole PCB mounting or wired connections.
- Threaded Panel Bushing (15/32-32): Provides firm mechanical installation in control panels.
- Standard Round Lever Actuator: Ensures precise manual operation with a 17.53 mm actuator length.
- Nickel-Plated Contacts: Enhances conductivity and corrosion resistance.
The 23AT11-T2 delivers the reliability and precision required for industrial control panels and electronic switching applications.
