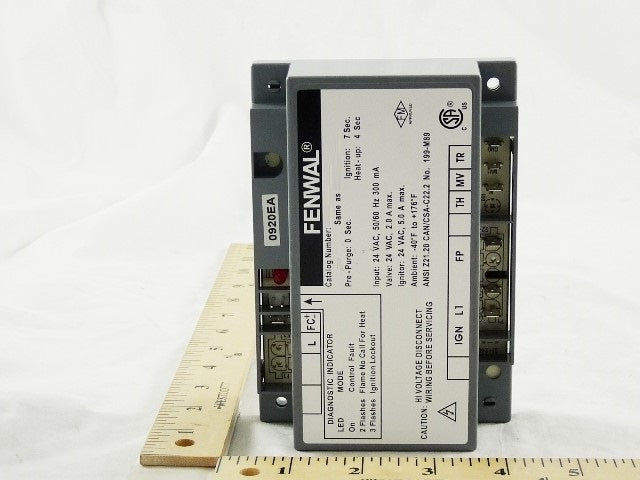

2465H908-003 | Fenwal Triton 24VAC Hot Surface Ignition Control Module
- Regular price
- $599.00
- Sale price
- $599.00
- Regular price
-
$0.00
Couldn't load pickup availability
Do you need help?
Product Description P/N: 2465H908-003
Description
The Fenwal 2465H908-003 Triton Ignition Control Module is a 24VAC hot surface ignition controller designed for use in pool heaters, furnaces, water heaters, and other gas-fired appliances under 400K BTU. Featuring diagnostic LEDs, multiple ignition trials, and safe start with full-time flame sensing, it ensures safe and efficient burner operation.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Fenwal |
| Category | Heating & Ignition Parts |
| Part Number | 2465H908-003 |
| Subcategory | Ignition Modules |
| Series | Triton / Series 35-65, 35-66 |
| Input Power (Control) | 18–30 VAC, 50/60 Hz (Class 2 Transformer) |
| Input Power (Line) | 24, 120, or 240 VAC |
| Current Draw | 300 mA max @ 24 VAC (with blower & gas valve relay energized) |
| Gas Valve Output | 2.0 A max @ 24 VAC |
| Blower Output (35-66 models) | 3.0 FLA max @ 120 VAC (¼ hp); 1.5 FLA max @ 240 VAC (¼ hp) |
| Hot Surface Ignitor Output | 5.0 A max @ 120/240 VAC |
| Operating Temperature | -40°F to +176°F (-40°C to +80°C) |
| Flame Sensitivity | 0.7 μA minimum |
| Gas Types Supported | Natural, LP, or manufactured gas |
| Ignitor Types | 24V, 120V, or 240V ignitors (mini or silicon carbide) |
| Enclosure | Gray Noryl N-190, conformal coated |
| Moisture Resistance | Non-condensing up to 95% RH |
| Applications | Pool/spa heaters, furnaces, water heaters, 24VAC gas burners <400K BTU |
| Weight | 8 oz (including cover) |
Information About 2465H908-003
The 2465H908-003 belongs to Fenwal’s Series 35-65/35-66 ignition control family, which consolidates multiple gas appliance functions into a single control module. It manages the heat demand sequence, monitors airflow, ignites the burner, and supervises the flame during operation. With optional blower control, dual-speed blower support for LoNox systems, and fail-safe gas valve monitoring, the module is engineered for both performance and safety. Though discontinued, it remains a critical replacement part for existing Triton systems.
Key Features:
- Safe Start & Flame Supervision: Continuous flame sensing with microprocessor-controlled ignition.
- Multiple Ignition Trials: Retries with automatic reset option ensure reliable startup.
- Field Selectable Voltage: Supports 24/120/240 VAC ignitor models.
- Diagnostic LED: Provides real-time system and troubleshooting feedback.
- Blower & Airflow Monitoring: Ensures proper combustion airflow before ignition.
- Fail-Safe Gas Valve Control: Integrated protection prevents unsafe conditions.
- Flame Current Test Pins: Allows easy system verification during service.
- Versatile Applications: Suitable for heaters, furnaces, and water heating systems.
The 2465H908-003 delivers the reliability and precision required for safe ignition control in residential, commercial, and industrial heating appliances.
