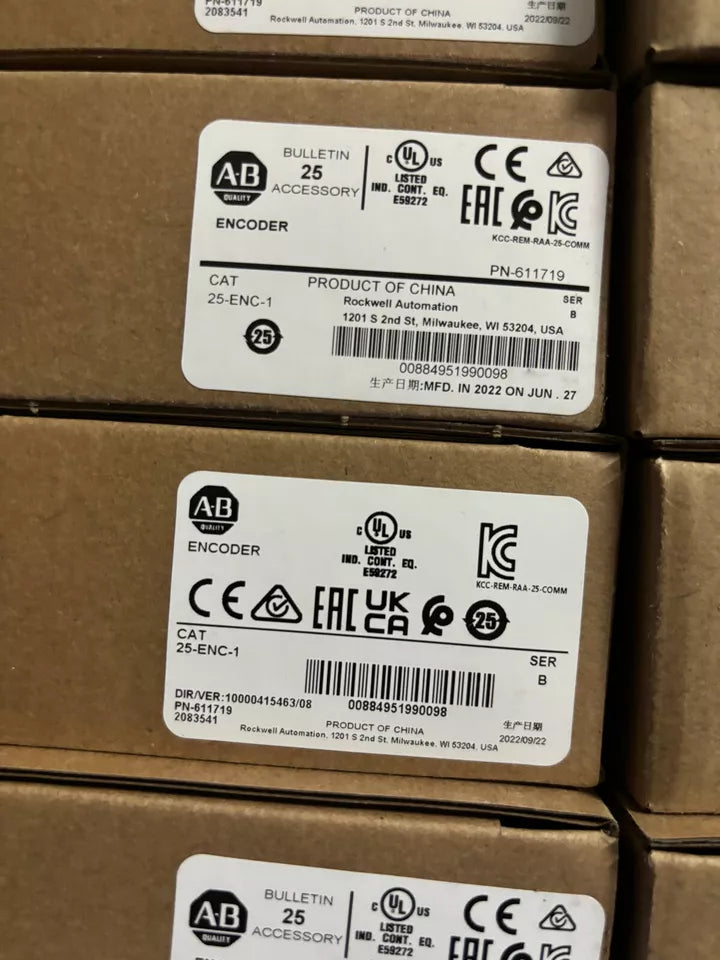

Part #: 25-ENC-1 Manufactured by: Allen-Bradley
$63.00
$63.00
7 in Stock
Condition: New – Open box
Shipping calculated at checkout.
Product Overview
The Allen-Bradley 25-ENC-1 extends the capabilities of the PowerFlex 525 drive by adding closed loop velocity vector contr...  Read more
We accept:
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa

Do you need help?

Call our Sales Manager
phone
+1 (828) 222-3490
Mon./Sat.: 7:00AM - 8:00PM
Write to us now
email
sales@iqelectro.com
Mon./Sat.: 7:00AM - 12:00PM
warranty
IQElectro 2-Year Warranty
Warranty for Product #: 25-ENC-1
IQElectro offers a free 2-year warranty on all products. You can trust that every purchase is a reliable investment in the future of your company. Warranty Terms
2-3 Day Free Shipping
Packed Ready to Ship
24/7 Expert Support
Return within 30-Days
IQElectro is Not an authorized distributor for Allen-Bradley
Original Manufacturer's Warranty Not Covered, This Product is SURPLUS.

Product Description P/N: 25-ENC-1

Description / Specifications

Description

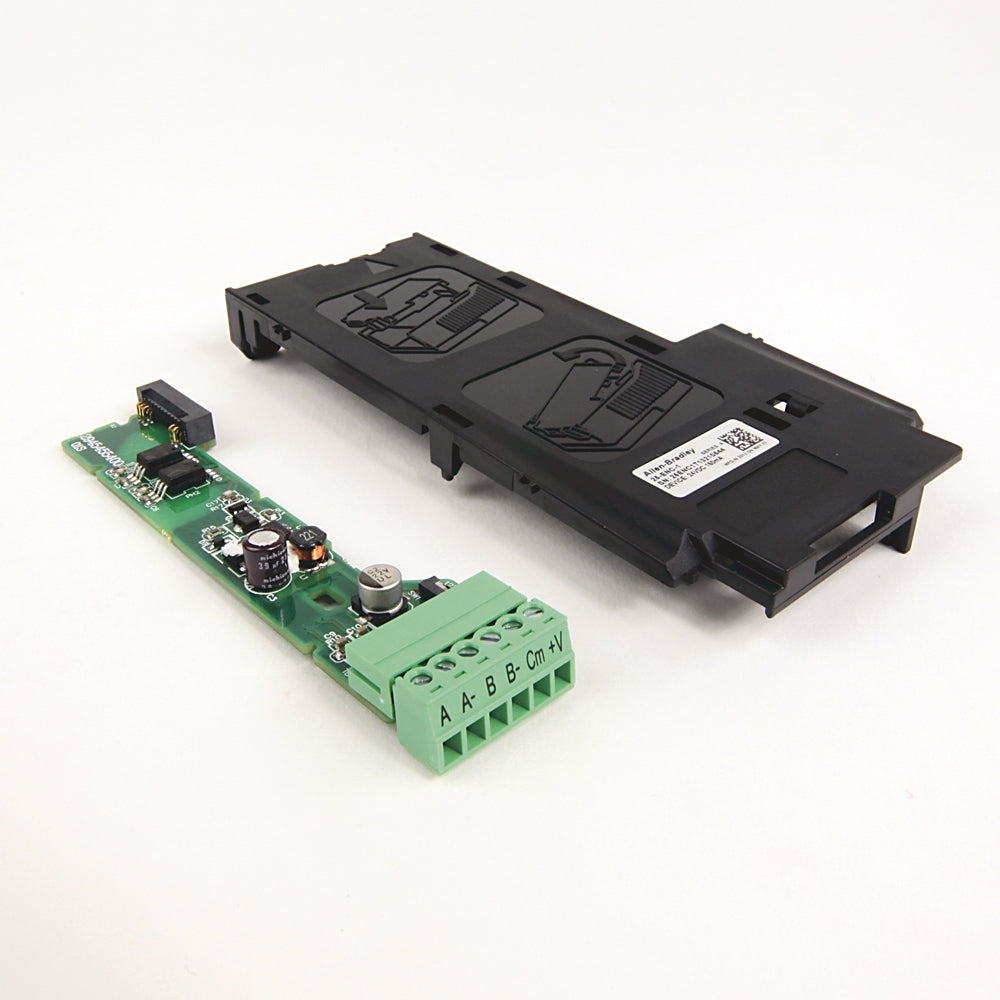

The Allen-Bradley 25-ENC-1 is an incremental encoder input module designed for use with the PowerFlex 525 adjustable frequency AC drive. It provides feedback for closed loop permanent magnet (PM) control and supports up to 1024 pulses per revolution (PPR).





Technical Specifications

Condition New/Never Used Surplus
Brand Allen Bradley
Category Encoders
Part Number 25-ENC-1
Subcategory Encoders & Resolvers
Product Line PowerFlex 525
Product Family PowerFlex 527 Adjustable Frequency AC Drive
Description PowerFlex 525 drive incremental encoder
Current Rating 250 mA
Voltage Rating 12 V DC
Encoder Type Quadrature (dual-channel) incremental encoder
Control Method Closed loop velocity vector control
Signal Wiring Single-ended / Differential
Voltage Source Selection Via DIP switch
Removal/Insertion Under Power Not supported
Minimum Wire Size 0.08 mm² (28 AWG)
Maximum Wire Size 2.08 mm² (14 AWG)
Tightening Torque 0.18–0.22 Nm (1.56–1.9 lb-in)
Network Type Ethernet/IP
Quadrature Rating ±27° at 25 °C
Output Control Voltage DIP switches
Weight 0.25 lbs (0.11 kg)





Information About 25-ENC-1

The 25-ENC-1 is part of the PowerFlex 525 accessory family from Allen-Bradley, developed to enable advanced motor control functionality. This quadrature incremental encoder input card supports both single-ended and differential wiring configurations, accepting 5, 12, or 24V signals. It sources 5 or 12VDC power and can be internally powered from the drive or supplied externally, drawing 250 mA at 12V nominal. The module integrates with the PowerFlex 525 drive to support closed loop velocity vector control, enabling not only speed regulation but also positioning capabilities for higher precision applications. Designed with DIP switch voltage selection, proper torque specifications for wiring, and a wide wire size range, it ensures secure installation and dependable performance in automation environments.

Key Features:

  • Design: Quadrature incremental encoder input module with robust industrial build.
  • Compatibility: Fully supported by Allen-Bradley PowerFlex 525 adjustable frequency AC drives.
  • Voltage Support: Accepts 5V, 12V, or 24V signals in single-ended or differential input wiring.
  • Power Options: Sources 5 or 12V power and can be internally powered by the drive or externally supplied.
  • Control Function: Enables closed loop PM control through velocity vector method, supporting precise speed and positioning control.
  • Configuration: Supports encoder resolution up to 1024 pulses per revolution (PPR) for accurate feedback.
  • Installation: Built-in DIP switch for voltage source selection and screw terminals rated for 0.08–2.08 mm² wiring.
  • Reliability: Secure terminal tightening with 0.18–0.22 Nm torque ensures stable connections.

The 25-ENC-1 delivers the reliability and precision required for advanced motor control and feedback integration with PowerFlex 525 drives.

Frequently Asked Questions about 25-ENC-1
Question: What is the maximum supported encoder resolution (PPR) for the 25-ENC-1?
Date Update:27/05/2025
Answer:

The 25-ENC-1 supports encoder resolutions up to 1024 pulses per revolution (PPR). This resolution is adequate for most closed-loop control applications requiring moderate position accuracy. It ensures smooth motor operation with real-time feedback. For applications demanding higher resolutions, alternative modules may be considered.

Question: How is the encoder powered—internally or externally?
Date Update:27/05/2025
Answer:

The encoder can be powered either internally from the PowerFlex 525 drive or externally from an independent power source. Internal power is selectable between 5V and 12V via a DIP switch. If a 24V encoder is used, external power is required. Always match voltage levels with the encoder’s specifications.

Question: Can the 25-ENC-1 be used with PowerFlex 523 or 527 drives?
Date Update:27/05/2025
Answer:

No, the 25-ENC-1 is specifically designed for use with PowerFlex 525 drives. It is not compatible with PowerFlex 523 or 527 models due to differences in hardware and control methods. Using it with unsupported models may lead to malfunction. Always verify compatibility with official documentation.

Question: What wire sizes are compatible with the 25-ENC-1 terminals?
Date Update:27/05/2025
Answer:

The terminals accept wire sizes ranging from 0.08 mm² (28 AWG) to 2.08 mm² (14 AWG). Use wire sizes appropriate for current and signal strength. Thicker wires ensure lower voltage drop. Stranded wires are generally easier to route and connect.

Question: Is the 25-ENC-1 still being manufactured?
Date Update:27/05/2025
Answer:

Yes, according to Rockwell Automation, the 25-ENC-1 is currently in "Active" lifecycle status, indicating it is still being manufactured and supported. You can verify this status on the official Rockwell Automation website.
