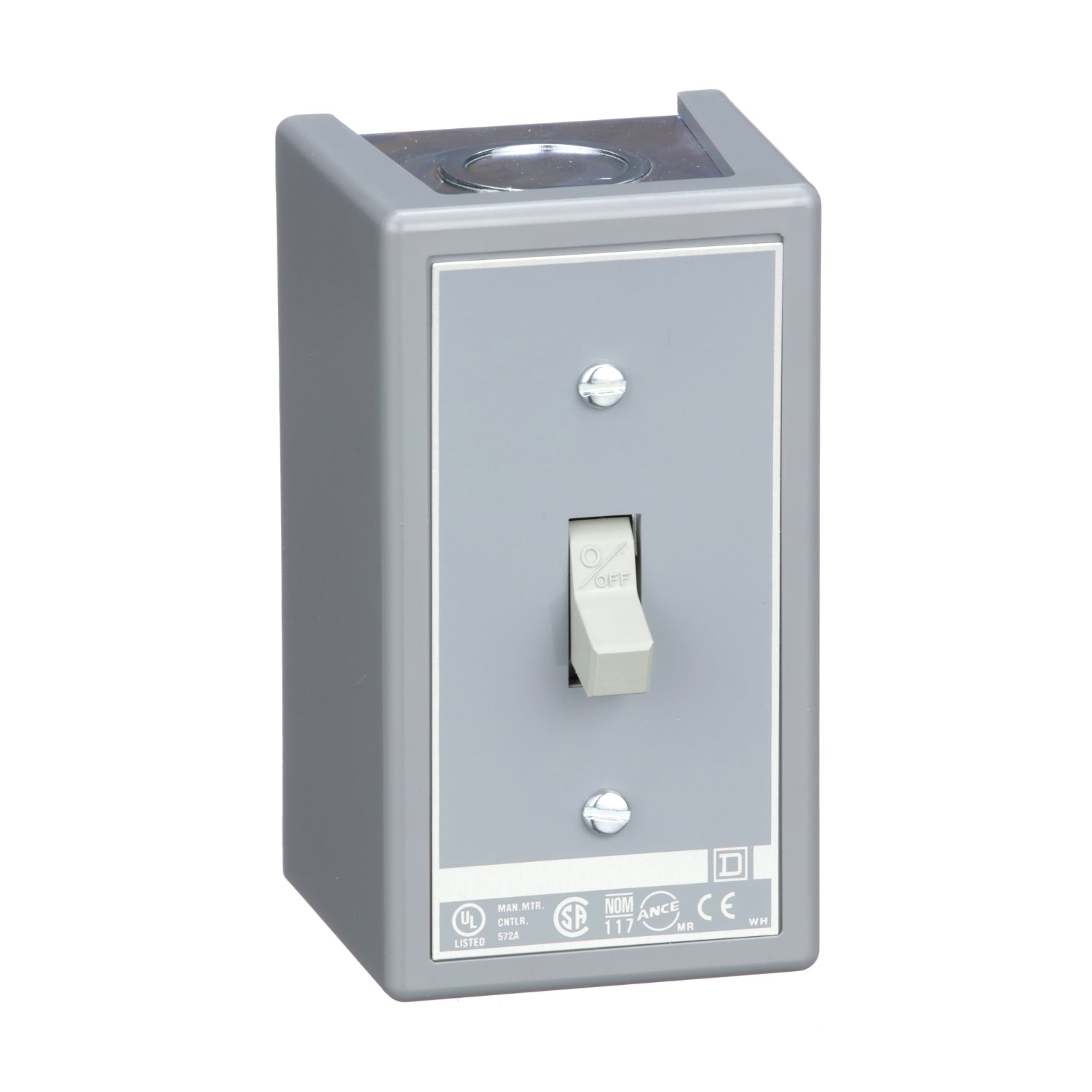

2510KG1 | Schneider Electric Switch
- Regular price
- $79.00
- Sale price
- $79.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 2510KG1
Description
The switch features screw clamp terminals that accept 14 to 10 AWG copper wire. The enclosure dimensions are 4.25 inches in height, 2.44 inches in width, and 2.75 inches in depth, with a weight of 0.84 lbs. The enclosure includes 0.5 and 0.75 knockouts on the top and bottom for surface mounting. The device is UL Listed and CSA certified.
Technical Specifications
|
Part # |
2510KG1 |
|
Category |
Contactors & Starters |
|
Subcategory |
Starter Product |
|
Product |
Single Unit Manual Switch |
|
Type |
K |
|
Current Rating |
30 A |
|
Cable Entry |
0.5" and 0.75" knock-outs (top and bottom) |
|
Maximum Voltage Rating |
600 V AC, 230 V DC |
|
Number of Poles |
2P |
|
Control Unit Type |
Toggle |
|
Number of Phases |
1 phase |
|
Pilot Light |
No indicator |
|
Starter Type |
Non reversing |
|
Electrical Connection |
Screw clamp terminals |
|
Wire Gauge |
AWG 14...AWG 10 copper |
|
Height |
4.25 in (107.95 mm) |
|
Width |
2.44 in (61.98 mm) |
|
Depth |
2.75 in (69.85 mm) |
|
Net Weight |
0.84 lb (0.38 kg) |
Information About 2510KG1
The 2510KG1 is a manual switch designed for diverse applications across industrial, commercial, and residential sectors. It is part of the 2510K series manual motor switches, which are intended for use where overload protection is either not necessary or is provided separately. The primary function of this switch is to provide manual On/Off control for small motors. This particular model is a non-reversing switch operated by a toggle mechanism.
The 2510KG1 switch is capable of handling a maximum operational voltage of 600 VAC and 250 VDC. It is a two-pole switch with a continuous current rating of 30A. The switch supports a range of motor horsepower ratings across different voltages: it can handle 2 HP at 115 VAC, 2 HP at 230 VAC, 3 HP at 460 VAC, 3 HP at 600 VAC for single-phase motors, 1 HP at 90 VDC, 2 HP at 115 VDC, and 1.5 HP at 230 VDC. The electrical connections are facilitated by screw clamp terminals, which can accept copper wires ranging from 14 AWG to 10 AWG.
Manufacturer information
Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
