2510KO2 | Schneider Electric Switch, Manual
- Regular price
- $125.00
- Sale price
- $125.00
- Regular price
-
Couldn't load pickup availability
Do you need more quantity?
Product Description P/N: 2510KO2
Description

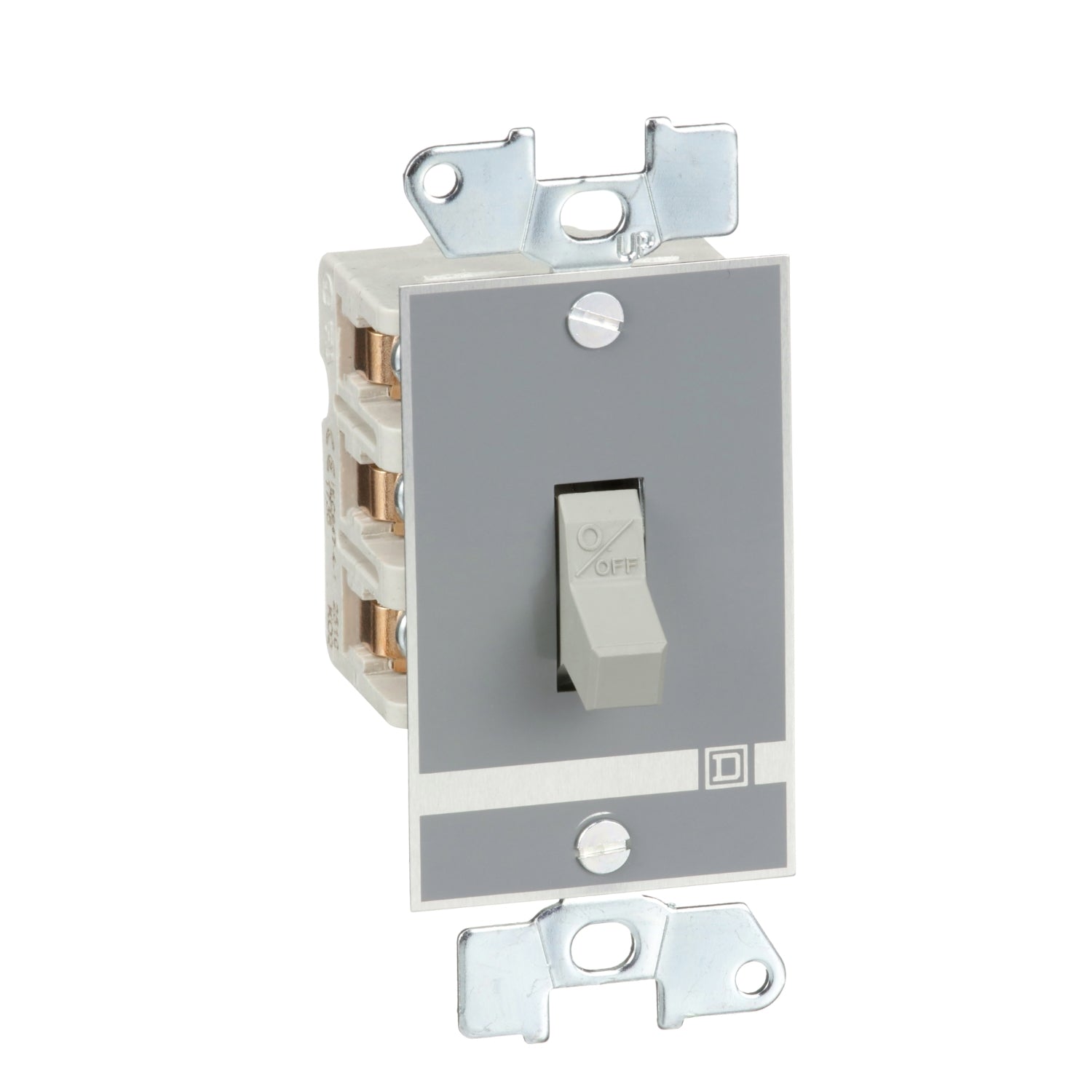

The 2510KO2 is a manual motor switch designed for industrial, commercial, and residential applications. It provides manual On/Off control for small motors in situations where separate overload protection is unnecessary. Featuring a toggle-operated design, this non-reversing switch is suitable for various motor control applications.
This switch is rated for 30A continuous current and can handle up to 10 HP at 575 VAC in three-phase configurations. It has a maximum operational voltage of 600 VAC and 250 VDC. The switch is three-pole and supports wire sizes ranging from 14 to 10 AWG copper.
Technical Specifications
|
Part # |
2510KO2 |
|
Category |
Contactors & Starters |
|
Subcategory |
Starter Product |
|
Type |
Single Unit Manual Switch |
|
Current Rating |
30 A |
|
Maximum Voltage Rating |
600 V AC, 230 V DC |
|
Number of Poles |
3P |
|
Control Unit Type |
Toggle |
|
Number of Phases |
3 phase |
|
Pilot Light |
No indicator |
|
Starter Type |
Non-reversing |
|
Electrical Connection |
Screw clamp terminals |
|
Wire Gauge |
AWG 14...AWG 10 copper |
|
Height |
4.13 in (104.90 mm) |
|
Width |
1.69 in (42.93 mm) |
|
Depth |
2.34 in (59.44 mm) |
|
Net Weight |
0.35 lb(US) (0.16 kg) |
Information About 2510KO2
The 2510KO2 is a manual switch designed for industrial, commercial, and residential applications where overload protection is either unnecessary or provided separately. It enables manual On/Off control of small motors and is compatible with various enclosures. Operating as a non-reversing switch, it utilizes a toggle mechanism for operation.
With a maximum operational voltage of 600 VAC and 250 VDC, the switch is capable of handling different motor configurations. It is rated for various horsepower capacities, including 2 HP at 115VAC, 7.5 HP at 230VAC, 10 HP at 460VAC, and 10 HP at 600VAC for single-phase applications. Additionally, it supports 1 HP at 90 VDC, 2 HP at 115 VDC, and 1.5 HP at 230 VDC.
Featuring three poles, the switch offers a continuous current rating of 30A. The screw clamp terminals accommodate wire gauges ranging from 14 to 10 AWG for copper wires. Notably, it does not include a pilot light indicator and is supplied without an enclosure.
Manufacturer information
Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
IQElectro 2 Year Warranty
IQElectro offers a 2-Year Warranty on all our products. This complimentary two-year warranty ensures that every purchase from IQElectro is a secure investment in the future of your company.Warranty Terms
IQElectro is not an authorized distributor.
