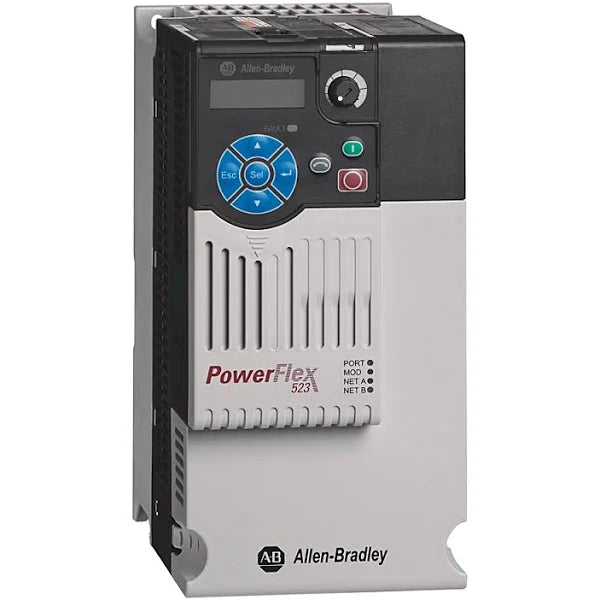

25A-D013N104 | Allen-Bradley | AC Drive
- Regular price
- $559.00
- Sale price
- $559.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 25A-D013N104
Description
The Allen-Bradley 25A-D013N104 PowerFlex 523 AC Drive is a variable frequency drive designed for industrial applications. It operates with a voltage rating of 480V AC across 3 phases, supporting a maximum current of 13A. With a power capacity of 7.5 horsepower (5.5kW), it is suitable for both normal and heavy-duty operations. Enclosed in a Frame C configuration, it features an IP20 NEMA/open type design without a filter.
Technical Specifications
|
Product Family |
PowerFlex 40P |
|
Optional Communication Protocols |
Ethernet I/P; DeviceNet; ProfiBus DP |
|
Built-in Communication Port |
RS485 |
|
Enclosure Rating |
IP20 / NEMA UL Type Open |
|
Installation |
Panel Mount / DIN Rail |
|
I/O |
Discrete Inputs: 5 (Sink / Source) |
|
Output Power |
7.5 kW (5.5 HP) |
|
Output Voltage |
0-460VAC |
|
Input Current |
15.4 A |
|
Input Phase |
3-Phase |
|
Input Voltage |
323-528 VAC |
|
Manufacturer |
Rockwell Automation / Allen-Bradley |
|
Brand |
Allen-Bradley |
|
Output Current |
13.0 A |
|
Part Number/Catalog No. |
25A-D013N104 |
|
Series |
PowerFlex 523 |
|
Voltage |
Three Phase, 480 VAC |
|
Enclosure Type |
IP20 NEMA / Open Type |
|
Interface Module |
Standard |
|
Frame Size |
Frame C |
|
EMC Filtering Option |
No Filtering |
Information About 25A-D013N104
The Allen-Bradley 25A-D013N104 PowerFlex 523 AC Drive is engineered to regulate and control AC motor operation in industrial settings. Operating at 480V AC across three phases, it sustains a maximum current of 13A, with a power rating of 7.5 horsepower (5.5kW). Designed for both normal and heavy-duty operations, it operates within a Frame C configuration.
Featuring an IP20 NEMA/Open Type enclosure, the 25A-D013N104 PowerFlex 523 AC Drive offers basic protection against ingress of solid objects and is suitable for open installations. It does not incorporate a filter, which may affect its electromagnetic compatibility with surrounding equipment.
This drive facilitates efficient motor control and performance optimization, ensuring smooth and reliable operation of industrial machinery. With its robust design and high power output, it is suitable for a wide range of applications across diverse industrial sectors.
The 25A-D013N104 PowerFlex 523 AC Drive is compliant with industry standards and regulations, ensuring compatibility and adherence to safety protocols. Its design prioritizes ease of integration and maintenance, providing flexibility in installation and system configuration.
Manufacturer information
Allen-Bradley, a brand of Rockwell Automation, specializes in manufacturing industrial automation equipment. The product range includes programmable logic controllers (PLCs), motion control systems, safety devices, motor control equipment, automation software, and HMI panels. Allen-Bradley products are known for their reliability and integration with other systems.
