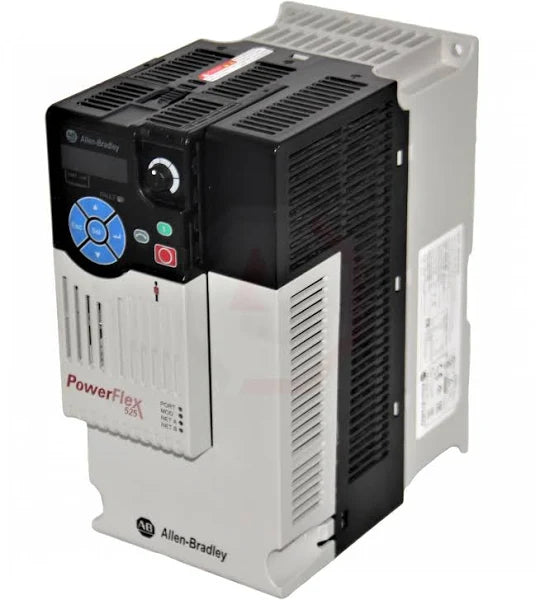

25B-B024N104 | Allen-Bradley PowerFlex 525 AC Drive 240V 24A 7.5HP
- Regular price
- $1,039.00
- Sale price
- $1,039.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: 25B-B024N104
Description
The Allen-Bradley 25B-B024N104 is an adjustable frequency AC drive. This drive is part of the PowerFlex 525 product category that is used for implementing Speed and Torque control of industrial AC motors. It is operated with an input supply voltage range of 170-264 VAC with tolerance of -15% / +10%; 3-phase and frequency range of 47-63 Hz. It has an applicable motor current output and power of 24.0 Amperes and 7.5 HP or 5.5 kW for both normal and heavy-duty operation. This drive supports Sinusoidal PWM, Volts/Hertz, Sensorless Vector Control, Economizer SVC motor control, Closed Loop Velocity Vector Control, Surface Mount and Interior Permanent Magnet Motor (without encoder), Interior Permanent Magnet Motor (with encoder).
Technical Specifications
| Brand | Allen-Bradley |
| Series | PowerFlex 525 Drive |
| Part Number | 25B-B024N104 |
| Manufacturer | Rockwell Automation |
| Product Family | PowerFlex 523 |
| Voltage | Three Phase, 240 VAC |
| Output Current | 24 Amperes |
| Input Voltage range | 170-264 VAC, 3-Phase |
| Nominal input voltage | 200-240 VAC, 3-Phase |
| Enclosure Type | IP20 NEMA / Open Type |
| Interface Module | Standard |
| Output voltage range | 0-230 VAC, 3-Phase |
| Frame Size | Frame C |
| Output Current | 24.0 A |
| EMC Filtering Options | No Filter |
| Output Power | 5.5 kW or 7.5 HP |
| Output frequency | 0-500 Hz (programmable) |
| Embedded I/O | Discrete Inputs: Seven (7) Sink / Source Discrete Outputs: One (1) N.O.; One (1) N.C. Contacts; Two (2) Digital / Optocoupler Analog Input: Two (2) Analog Input 0-10VDC; 0- 20mA Analog Output: One (1) Analog Input 0-10VDC; 0- 20mA |
| Installation | Panel Mount / DIN Rail |
| Zero Stacking | Supported |
| Built-in communication port | RS485 / Ethernet I/P |
| Control Method | Volts per Hertz (V/Hz), Sensorless Vector Control (SVC), Closed loop velocity vector control |
| Efficiency | 97.50% |
| Stop Modes | Multiple programmable stop modes including – Ramp, Coast, DC-Brake, and Ramp-to-Stop |
| Programmable Acceleration / Deceleration | Four (4) independently programmable accel and decel times with resolution of 0.01 seconds up to 600 seconds. |
Information About 25B-B024N104
The Allen-Bradley 25B-B024N104 is part of the PowerFlex 525 product bulletin of Adjustable Frequency AC drive. This drive comes with configurable parameters that enable it to efficiently control the Speed or Torque of an industrial AC motor and implement a variety of starting and stop modes which is equivalent to the basic operation of a soft-starter device.
The 25B-B024N104 is ideally used in general purpose applications and with permanent magnet motors as this drive is capable of Sinusoidal PWM, Volts/Hertz, Sensorless Vector Control, Economizer SVC motor control, Closed Loop Velocity Vector Control, Surface Mount and Interior Permanent Magnet Motor (without encoder), Interior Permanent Magnet Motor (with encoder). It is also capable of being configured with any of the available stop modes such as Ramp, Coast, DC-Brake, and Ramp-to-Stop characteristics. For managed and controlled increase or reduction of speed, the programmable acceleration and deceleration parameters comes in Four (4) individual setting with increment resolution of 0.01 seconds, up to 600 Seconds.
To operate the 25B-B024N104, it must be supplied with a voltage range of 170-264 VAC, 3-Phase. It provides a 3-Phase, 0-230 VAC voltage output along a programmable frequency of 0-500 Hz, output current of 24.0 Amperes and output power of 7.5 Hp or 5.5 kW. For more modern approach, the 25B-B024N104 supports premiere integration solution, utilizing the embedded Ethernet I/P port.
The 25B-B024N104 is an Allen-Bradley PowerFlex 525 drive. It features an integral EMC filter with a braking transistor and it comes with a single port EtherNet/IP, making it ideal for the simple system integration. The 25B-B024N104 features hardwired safety features that help in simplifying the process of meeting the safety compliances. The 25B-B024N104 comes with a wide operating temperature range from -20 degrees Celsius up to +50 degrees Celsius and it comes with an optional fan with a derating feature. The 25B-B024N104 also comes with application-specific parameters, making programming better with an energy economizing feature that lets the drive become one of the most energy efficient drives available. The 25B-B024N104 is an easy-to-install drive because of its modular design.
The 25B-B024N104 is a three-phase drive with a voltage rating of 240 Volts AC and it also features 24 Amps of output current. The 25B-B024N104 comes with an IP20 NEMA open type enclosure with a standard interface module that includes the Frame C frame size with no EMC filter option. The 25B-B024N104 and several other PowerFlex 525 series drives come as low-voltage drives that have been specially designed to support the operations of compact industrial settings. The 25B-B024N104 comes with various power ratings with output currents that accommodate several different needs in industrial settings. The 25B-B024N104 comes with the standard QuickView screen, allowing for the scrolling of text for effective human-machine interface programming.
Manufacturer information
Allen-Bradley, a brand of Rockwell Automation, specializes in manufacturing industrial automation equipment. The product range includes programmable logic controllers (PLCs), motion control systems, safety devices, motor control equipment, automation software, and HMI panels. Allen-Bradley products are known for their reliability and integration with other systems.
